34 32 980 Replacing rear left or right brake hose

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with GENERAL INFORMATION .
After completing repair work: BLEED BRAKE SYSTEM .

Press clutch pedal down to floor and secure with pedal support.

NOTE:

The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Pressing Clutch Pedal Down

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece can not rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Brake Hose And Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (1).

Installation note:

First tighten brake hose on brake caliper.

Tightening torque 34 32 3AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

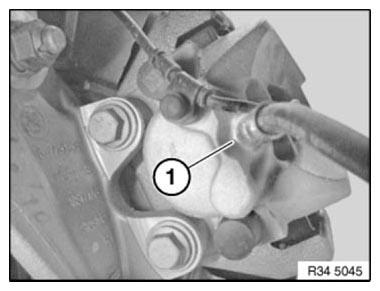

Fig 3: Identifying Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.
