Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of DME control unit
Turn off ignition
Remove CROSS-MEMBER
Remove intake duct on left and right
Remove front UNDERBODY PROTECTION

Detach coolant hose from fan cowl at retainer (1).

Fig 1: Identifying Coolant Hose Retainer

G06889282

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug (1) on fan cowl.

Release screw (2) on holder for coolant hoses.

Tightening torque 17 10 5AZ .

Detach coolant hoses with holder from fan cowl.

Fig 2: Detaching Coolant Hoses From Fan Cowl

G06889283

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 17 10 3AZ .

Detach transmission oil cooler upwards from fan cowl.

Fig 3: Identifying Transmission Oil Cooler Retainer With Mounting Screws

G06889284

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fan cowl (1) at retainers (2) on left and right, feed out in upward direction and remove.

Fig 4: Removing Fan Cowl In Upward Direction

G06889285

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

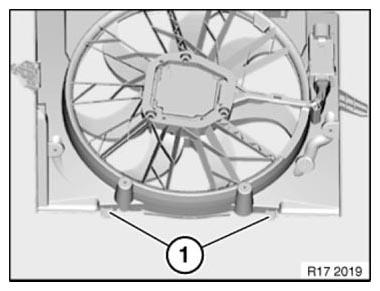

Insert retaining tab (1) at bottom on module carrier.

Fig 5: Identifying Fan Cowl Plug

G06889286

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Clear fault memory.
