11 14 141 Replacing radial seal in lower timing case cover (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove vibration damper, refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (S62) .

Removal:

Fit special tool 11 2 386 on crankshaft.

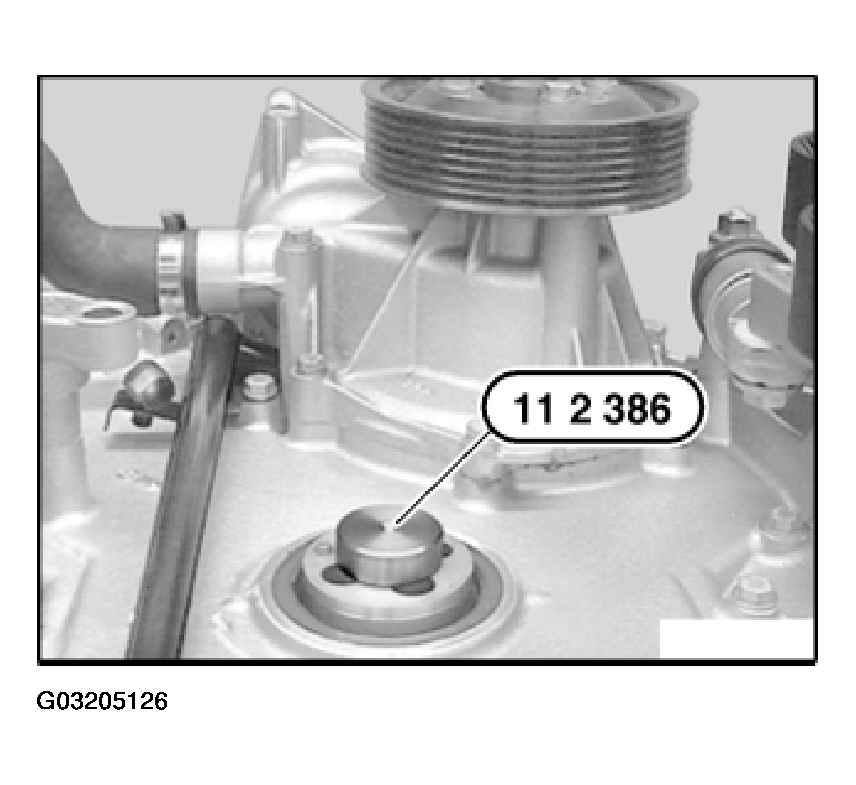

Fig 1: Fitting Special Tool On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 2 380 until it is securely connected to the radial seal.

Remove radial sealing ring by tightening in the screw.

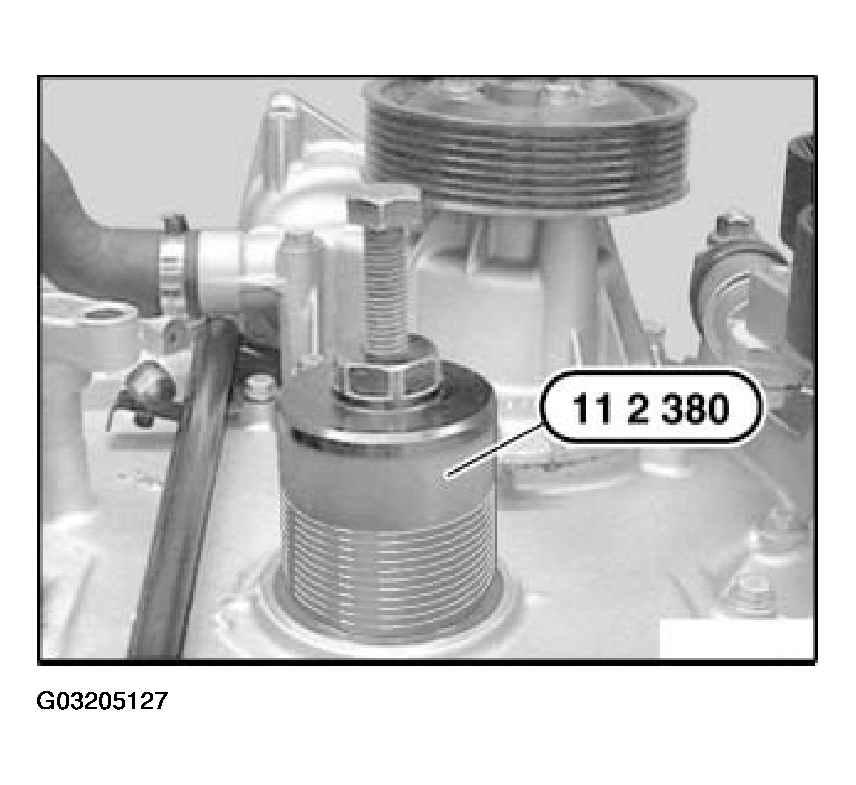

Fig 2: Removing Radial Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach special tool 11 7 231 to sprocket wheel.

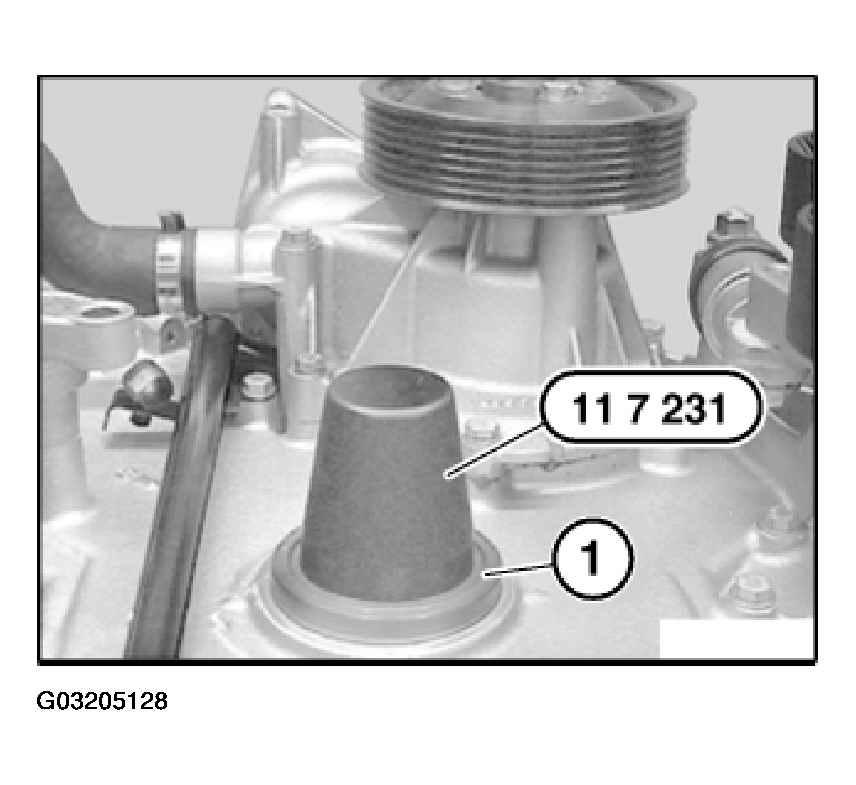

Fig 3: Installing Radial Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lips of new radial seal (1).

Push radial seal (1) onto special tool 11 7 231 until it rests against timing case cover.

Remove special tool 11 7 231.

NOTE: Special tool kit 11 7 210 comprises:

Special tool 11 7 211
Special tool 11 7 212
Special tool 11 7 213
Special tool 11 7 214

Screw special tool 11 7 211 with two screws (1) of vibration damper onto sprocket wheel until hand-tight.

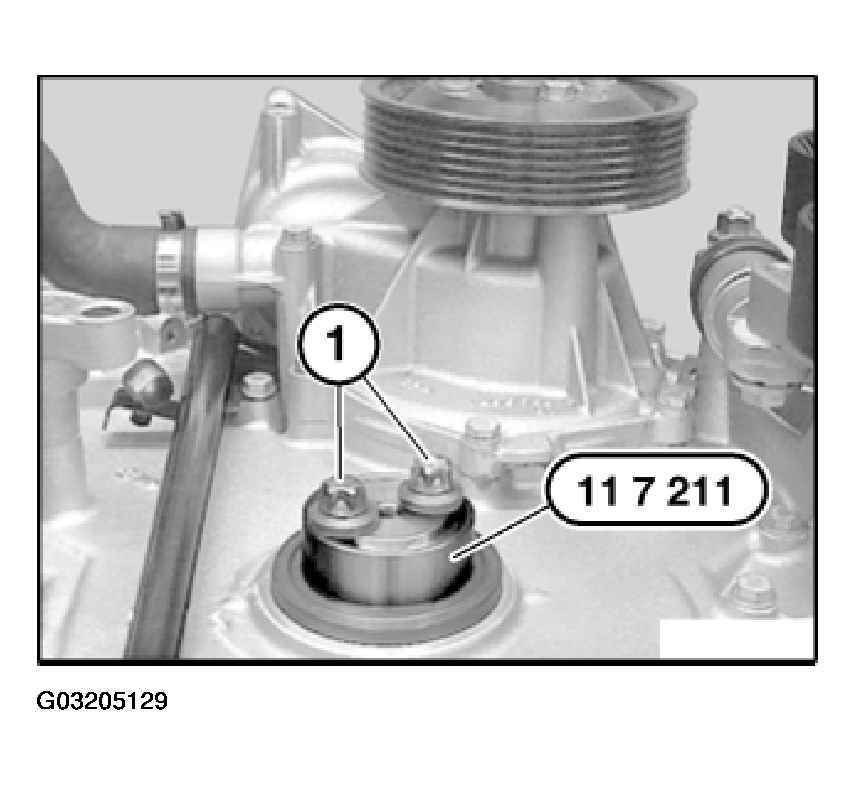

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 7 212 and tighten down by hand.

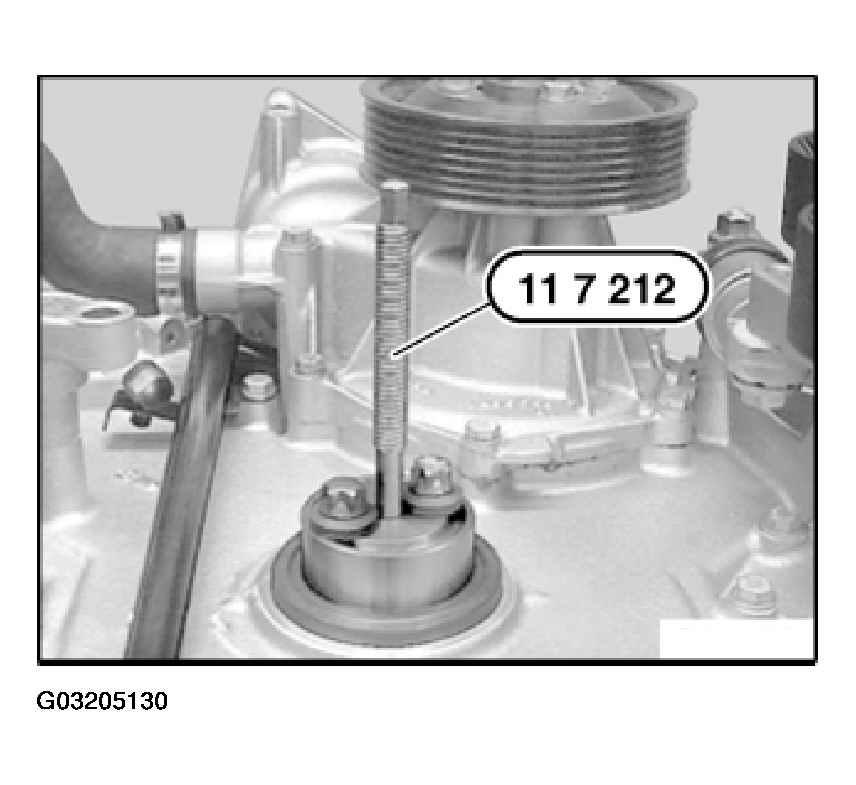

Fig 5: Inserting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 7 214 on radial seal.

Pull in new radial seal with special tool 11 7 213 until it is flush with timing case cover.

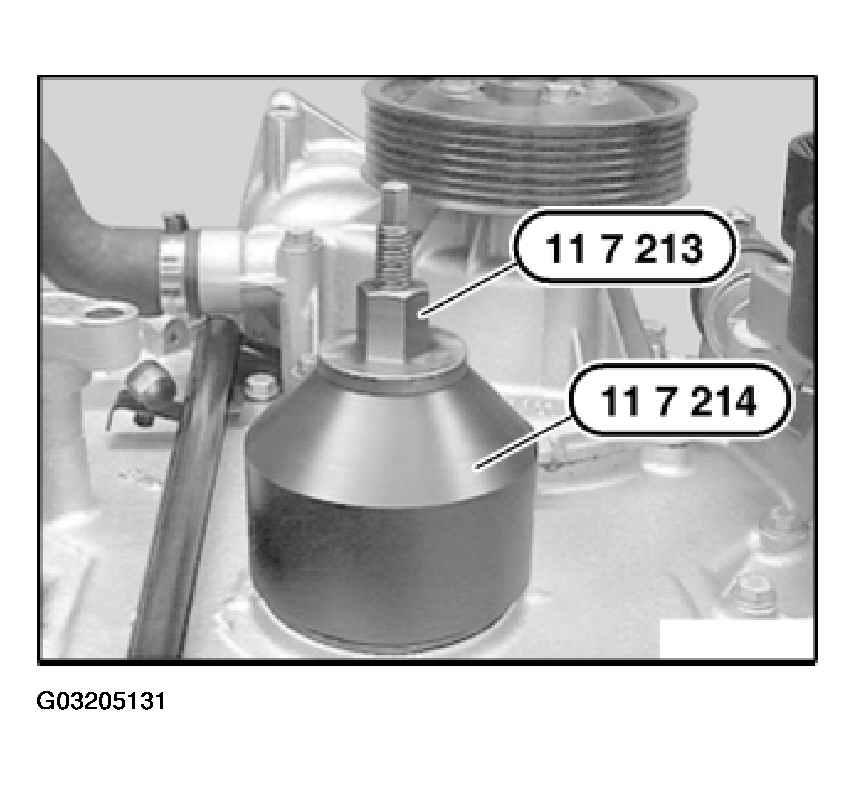

Fig 6: Pulling In Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
