11 22 500 Removing and installing/replacing flywheel (M62 / S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

clutch removed)

CAUTION: Once the flywheel has been replaced, the pulse generator must be reset.
Refer to 12 14 520 REPLACING PULSE GENERATOR (M62) .

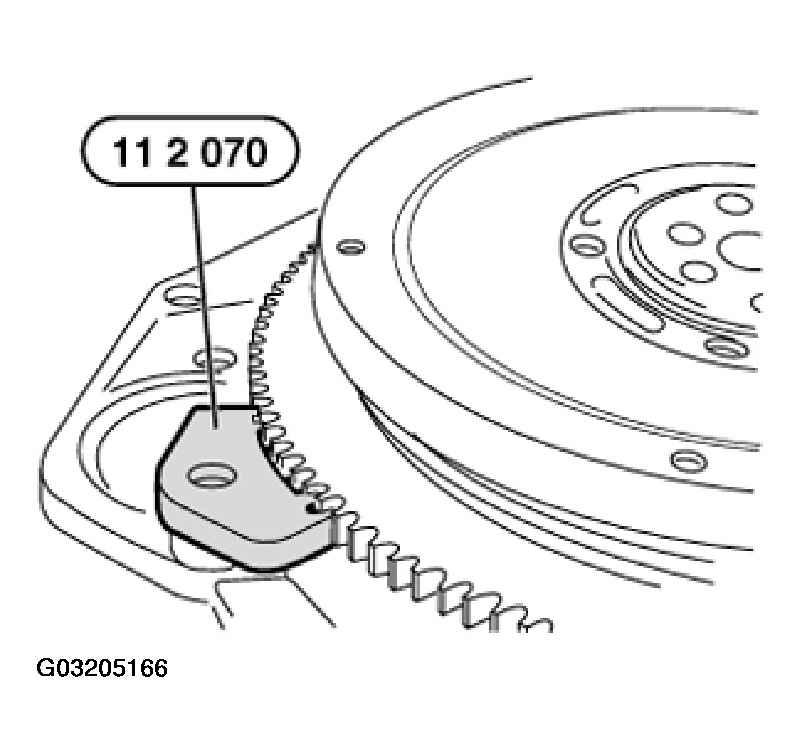

Block flywheel with special tool 11 2 070.

Fig 1: Blocking Flywheel

G03205166

Courtesy of BMW OF NORTH AMERICA, INC.

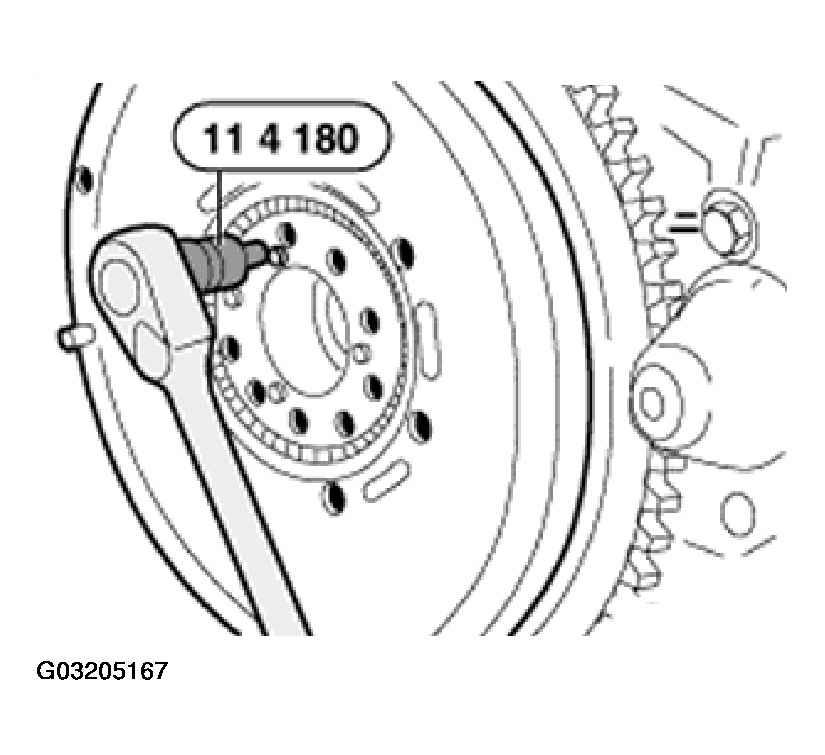

Release and tighten the flywheel (ZMS) only with special tool 11 4 180.

Fig 2: Releasing Flywheel

G03205167

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque 11 22 1AZ, refer to 11 22 FLYWHEEL .

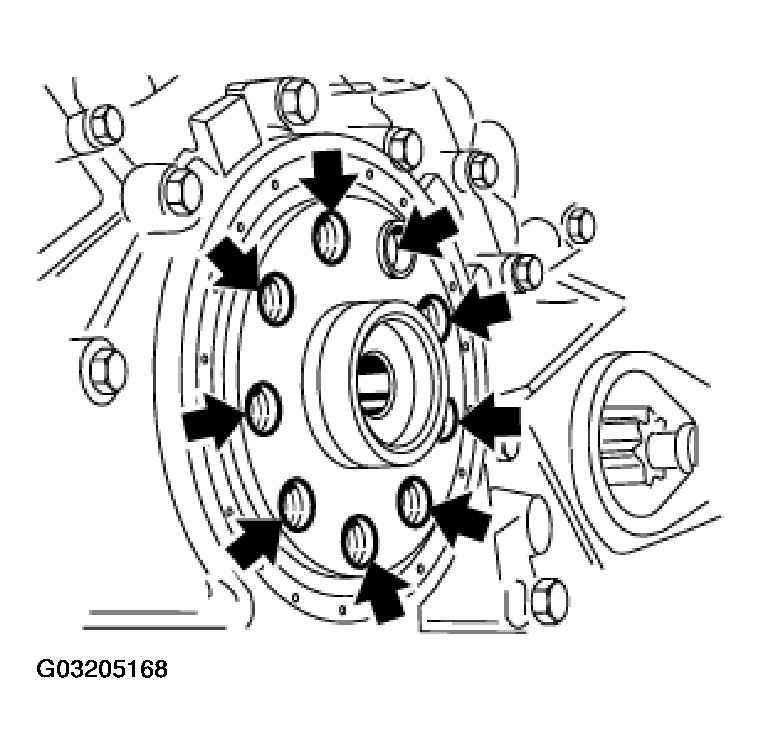

Clean thread for flywheel screws in crankshaft.

Fig 3: Cleaning Thread For Flywheel

G03205168

Courtesy of BMW OF NORTH AMERICA, INC.

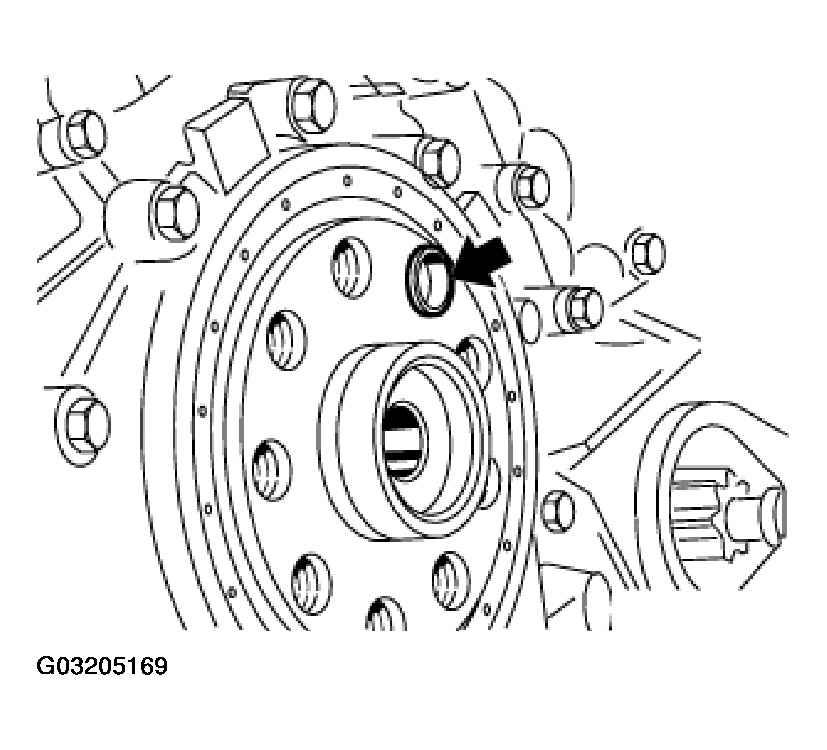

The flywheel (ZMS) is located with a special (shorter) dowel sleeve.

Fig 4: Identifying Flywheel (ZMS)

G03205169

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Replace only with original BMW spare parts.

Installation:

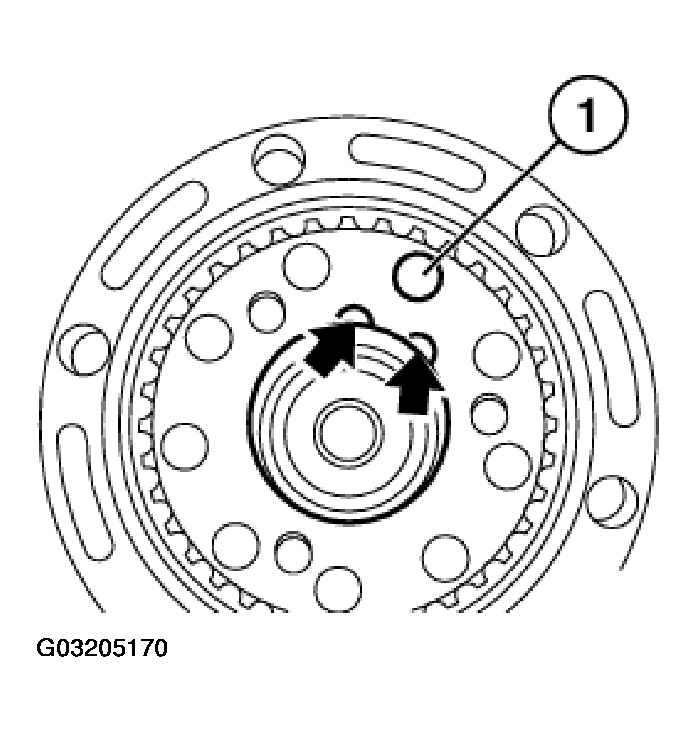

The position of the dowel sleeve (1) in the dual-mass flywheel is marked with two notches beside the respective screw bore.

Fig 5: Positioning Dowel Sleeve

G03205170

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Flywheel screws are part of the flywheel and must not be installed with screw securing adhesive (Loctite).
Lubricate screw threads lightly.

Tightening Torque 11 22 1AZ, refer to 11 22 FLYWHEEL .
