51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Necessary preliminary tasks:
- Remove RIGHT OR LEFT FRONT WHEEL .
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

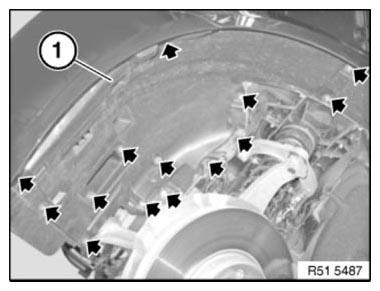

Unscrew all bolts.
Remove front wheel arch cover (1).
Installation note:
Make sure front wheel arch cover (1) and cooling air guide are correctly seated.
