61 13 042 Replacing power distribution box (luggage compartment)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Necessary preliminary work:

Clamp off BATTERY NEGATIVE LEAD
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on right
If necessary, remove right WHEEL ARCH PANEL (at F01/F02/03)

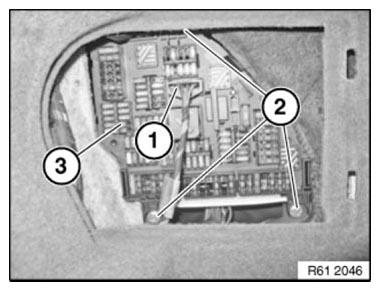

Disconnect plug connection (1).

Unscrew nuts (2).

Remove power distribution box (3).

Fig 1: Identifying Power Distribution Box With Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

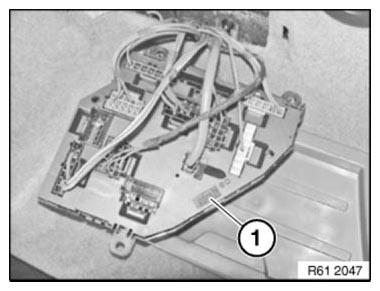

Disconnect all plug connections.

Remove power distribution box (1).

Fig 2: Identifying Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.
