33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS for raising the vehicle
IMPORTANT:
Do not mix up anti-roll bar links
- Stabilizer link for active stabilizer
- Anti-roll bar link for conventional anti-roll bar

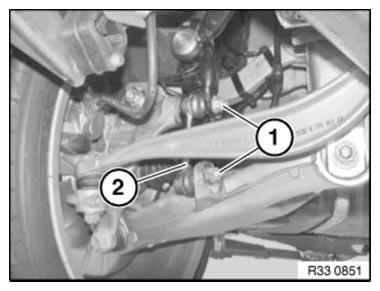

Vehicle with ARS:
Unscrew nuts (1).
Remove anti-roll bar link (2).
Tightening torque 33 55 2AZ .
Installation note:
Replace self-locking nuts.

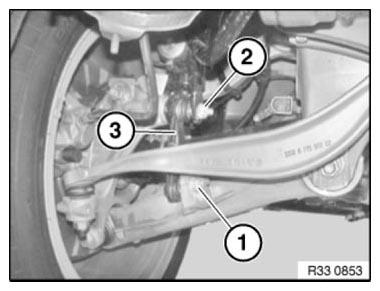

Vehicle without ARS:
Slacken nut (1).
Tightening torque 33 55 2AZ .
Release nut (2) and remove anti-roll bar link (3).
Tightening torque 33 55 2AZ .
Installation note:
Replace self-locking nuts.
