00..... Lifting vehicle using a vehicle hoist
Danger to life!
Read and follow manufacturer's operating instructions for lifting platform.
Do not exceed approved load-carrying capacity and load distribution of vehicle hoist.
Weight compensation may be necessary due to the loading situation of the vehicle.
This also applies in the event of considerable removal of parts or conversions on the vehicle.
Risk of damage!
Before driving onto a lifting platform, make sure there is sufficient ground clearance between the lifting platform and the car.
The vehicle may only be raised with the lifting platform at the four jacking points.
Necessary preliminary work:
- If necessary, remove jacking points from equipment pack and insert from below into openings in front and rear sill areas
All four jacking points (1) must be available!
Never raise the vehicle without the jacking points (1)!
Risk of damage!

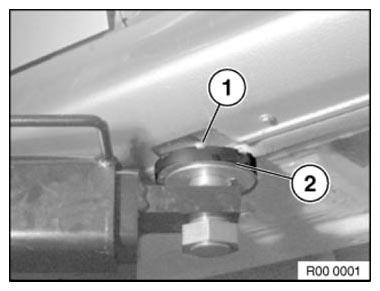

Align support plates (2) of lifting platform arms to jacking points (1) in such a way that no adjoining components are touched and thereby damaged.
In hybrid cars there is a risk of damage to the high-voltage component behind the underbody panelling!
Risk of damage!
Align the rubber block (2) with the jacking points (1) in such a way that no adjoining components are touched and thereby damaged.
Never raise the vehicle without rubber blocks (or rigid foam blocks)!
There is a major risk of damage to the vehicle underbody!
In hybrid cars there is a risk of damage to the high-voltage component behind the underbody panelling!
