33 11... Removing and installing/replacing vibration absorber

Vibration absorber to anti-roll bar, right:

Release screws (1).

Tightening torque 33 55 3AZ .

Remove vibration absorber (2).

Installation note:

Replace screw.

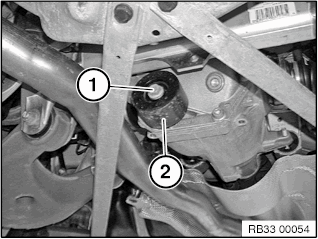

Fig 1: Identifying Vibration Absorber To Anti-Roll Bar (Right) And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle differential, front right:

Slacken nut (1).

Tightening torque 33 17 3AZ .

Remove vibration absorber (2).

Installation note:

Replace nut.

First, screw the rear axle differential to the rear axle support with the specified tightening torque.

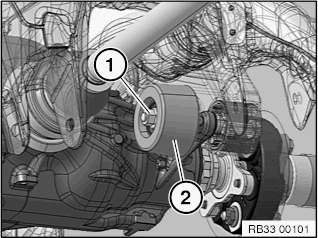

Fig 2: Identifying Vibration Absorber To Rear Axle Differential (Front Right) And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle differential:

Release screw (1).

Tightening torque 33 11 3AZ .

Remove vibration absorber (2).

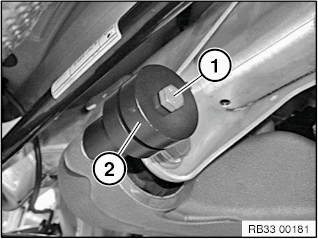

Fig 3: Identifying Vibration Absorber To Rear Axle Differential And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle support, front:

Release screws (1).

Tightening torque 33 33 4AZ .

Remove vibration absorber (2).

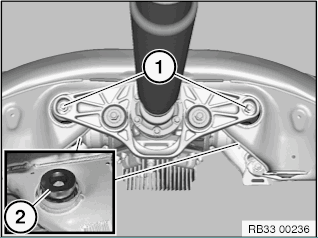

Fig 4: Identifying Vibration Absorbers To Rear Axle Support (Front) And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear adapter:

Release screw (1).

Tightening torque 33 11 10AZ .

Remove vibration absorber (2).

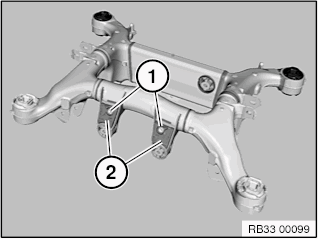

Fig 5: Identifying Vibration Absorber To Rear Adapter And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to front adapter:

Support rear axle differential. Slacken nut (1).

Tightening torque 33 17 1AZ .

Remove screw and vibration absorber (2).

Installation note:

Replace nut (1) and screw.

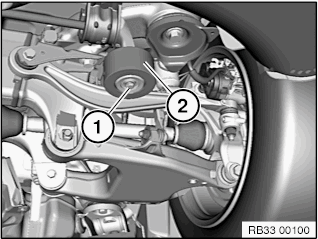

Fig 6: Identifying Vibration Absorber To Front Adapter And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
