32 13 066 Replacing active front steering hydraulic steering gear: Replacement

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Modify wiring harness on hydraulic steering gear.

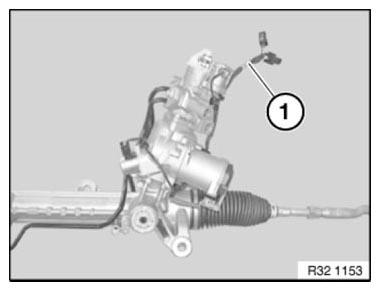

Fig 1: Identifying Hydraulic Steering Gear Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system. See BLEEDING POWER STEERING UNIT or BLEEDING POWER STEERING (VEHICLES WITH DYNAMIC DRIVE) .
Check line connections for leaks
Perform chassis alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
Carry out ADJUSTMENT/INITIAL OPERATION FOR ACTIVE STEERING
If necessary, carry out INITIAL OPERATION FOR DYNAMIC DRIVE
