32 31 102 Replacing steering shaft sleeve

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM (only N63)
Remove CATALYTIC CONVERTERS CYLINDERS 5-8 (only N63)
Remove heat shield on bulkhead (only N63)
Release UNIVERSAL JOINT WITH CORRUGATED TUBING on bottom section of steering shaft
Remove TRIM PANEL for pedal assembly

Release bolts and remove bulkhead cover (1) with gaiter.

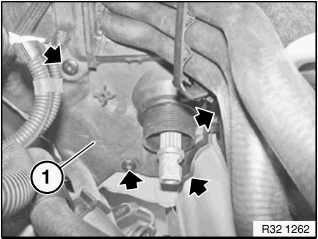

Fig 1: Locating Bulkhead Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Press in latch mechanism from the footwell and press out sleeve (1) from the bulkhead.

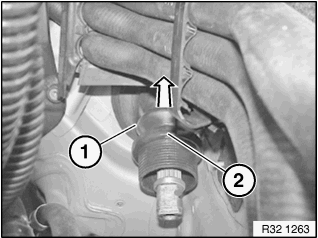

Fig 2: Pressing Out Sleeve From Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position.

Press sleeve (1) from the engine compartment out into the bulkhead!

Latch mechanisms of the sleeve must noticeably engage.

-> To check: Visual inspection in footwell!

Spray sealing lip (2) of the sleeve with silicone spray.

Mount bulkhead cover.

Make sure sealing lip is correctly seated.

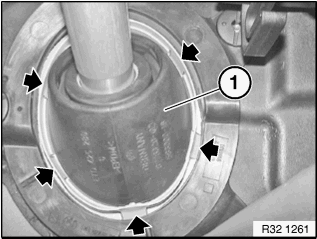

Fig 3: Identifying Sleeve And Sealing Lip
