32 11 100 Replacing gaiter for steering box on left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The hydraulic steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary preliminary work:

Remove UNDERBODY PROTECTION
Remove TRACK ROD END

Clean track rod.

Release band clamp (1) and EAR CLIP (3).

Detach gaiter (2) from track rod.

Installation note:

Clean rack and check surface for damage (e.g. by corrosion).

Clean track rod and apply grease to taper.

NOTE: This ensures that the gaiter is not rotated when the track rod is rotated.

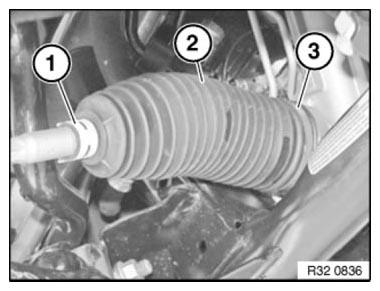

Fig 1: Identifying Track Rod Clamp, Gaiter And Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform CHASSIS/WHEEL ALIGNMENT CHECK
