32 41... Instructions for removing and installing ear clips

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The work steps are show on assorted components.
Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

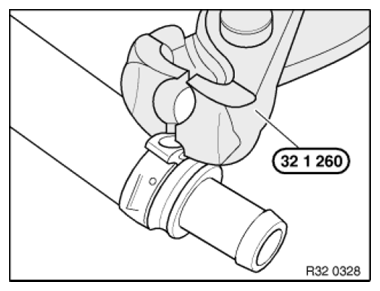

Fig 1: Removing Ear Clip Using Special Tool (32 1 260)

G06889673

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

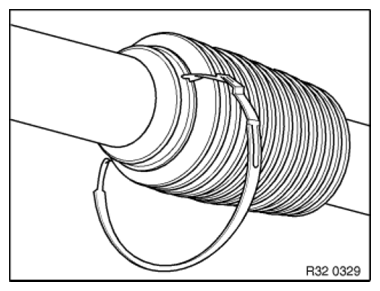

Fig 2: Identifying Hook Fastener On Ear Clip

G06889674

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

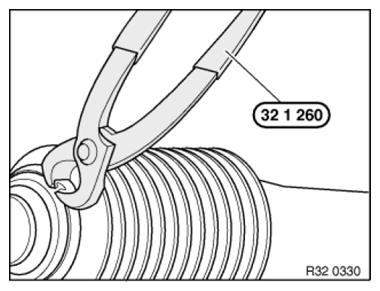

Fig 3: Pressing Hook Fastener And Ear Clip Using Special Tool (32 1 260)

G06889675

Courtesy of BMW OF NORTH AMERICA, INC.

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

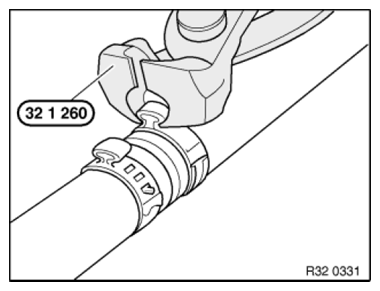

Fig 4: Removing Ear Clip Using Special Tool (32 1 260)

G06889676

Courtesy of BMW OF NORTH AMERICA, INC.

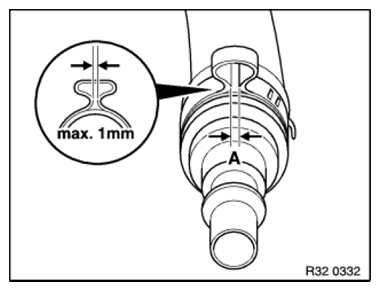

IMPORTANT: Gap (A) max. 1 mm!

Fig 5: Identifying Ear Clip Gap

G06889677

Courtesy of BMW OF NORTH AMERICA, INC.
