54 10 030 Removing and installing mechanism for rear glass lid

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
Remove glass slide/tilt sunroof lid at rear, refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER
Remove rear drip molding, refer to 54 13 105 REMOVING AND INSTALLING/REPLACING REAR DRIP MOLDING
Remove drive units with gearing, refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF , 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF) or 67 61 517 REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF)

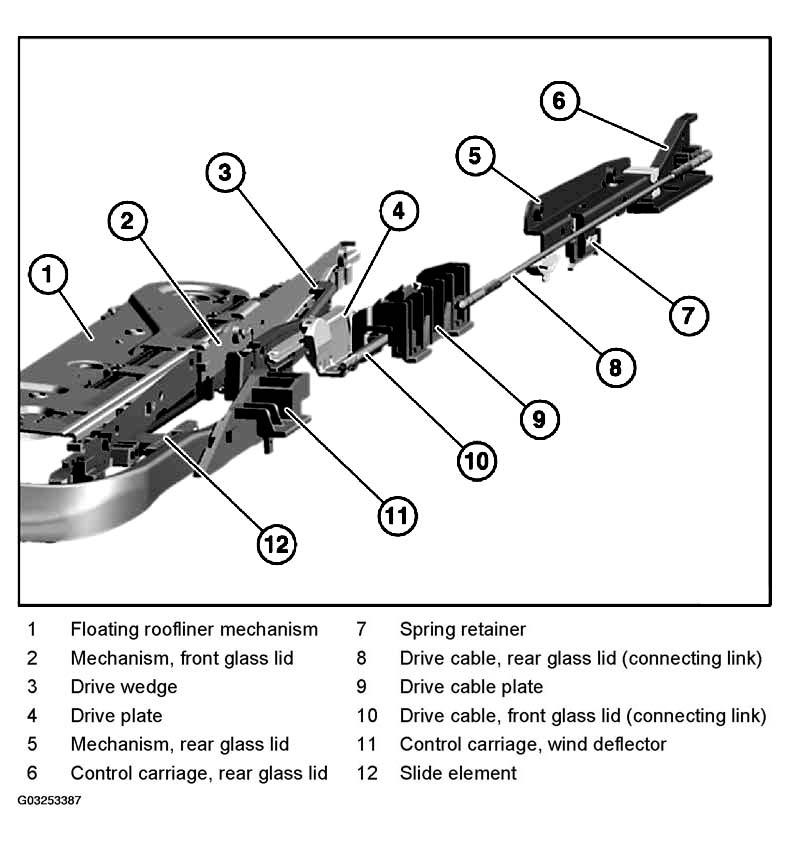

Fig 1: Overview Of Glass Lid Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs.
If necessary, lightly grease guide channel.

NOTE: Drip molding carrier cannot be removed without incurring damage.

Break out tabs with a screwdriver and lever out carrier.

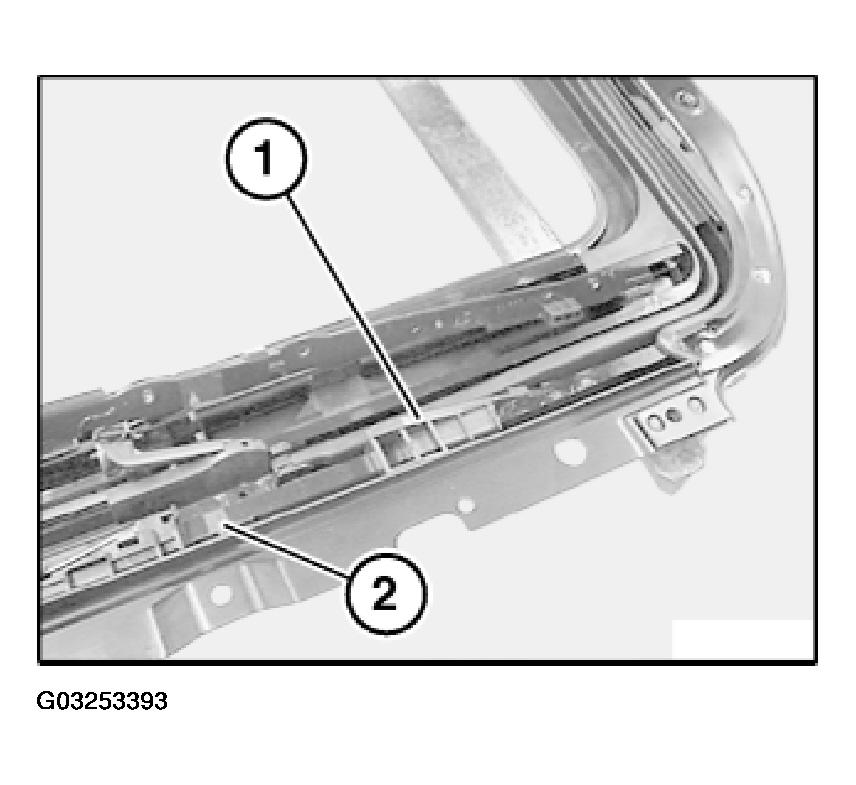

Fig 2: Removing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace drip molding carrier and hook into place.

Slide front connecting link (1) towards rear past drive cable plate (2).

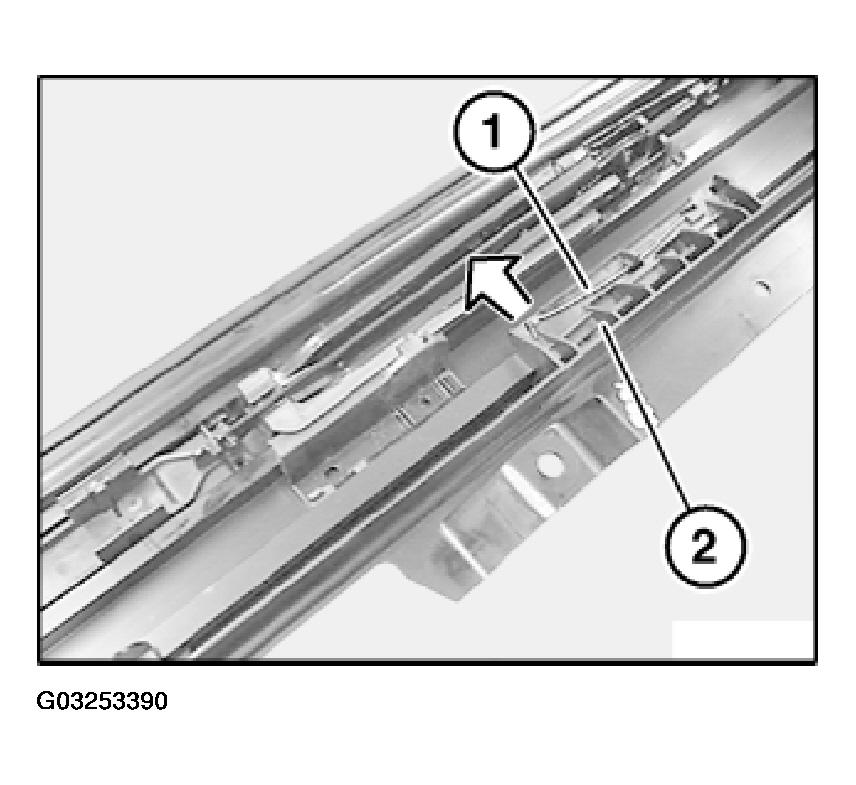

Fig 3: Sliding Front Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

If front glass lid is installed, move mechanism with lid.

Lever out retaining bracket (1) from drive cable plate (2).

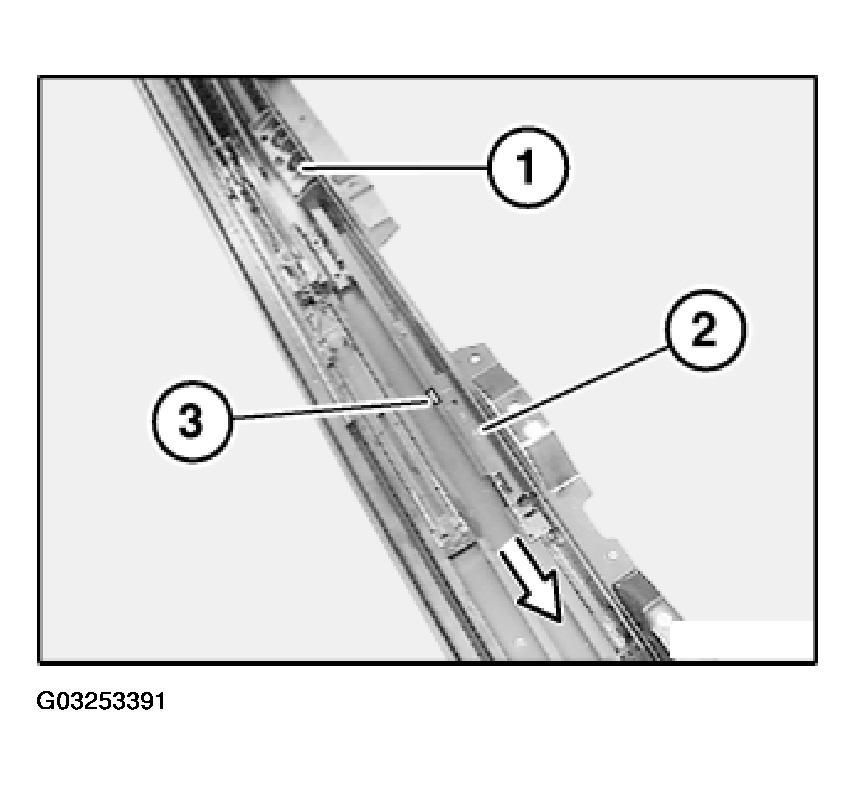

Fig 4: Identifying Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Slide rear connecting line (2) with drive cable plate (1) towards rear until spring retainer (3) is exposed.

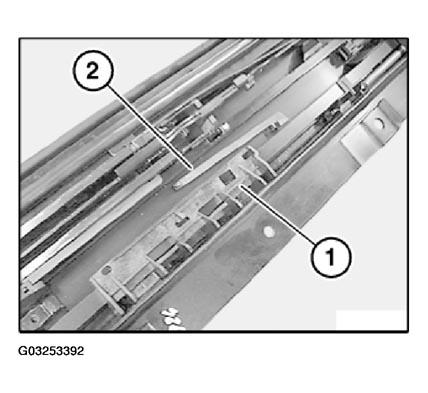

Fig 5: Sliding Rear Connecting Link With Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Spring retainer (3) cannot be removed without incurring damage.

Lever out spring retainer (3) with screwdriver.

Installation:

Replace faulty spring retainer.

Continue sliding rear connecting link (2) with drive cable plate (1) towards rear out of guide channel and remove in succession.

Installation:

Slide drive cable plate (1) up against drive cable.

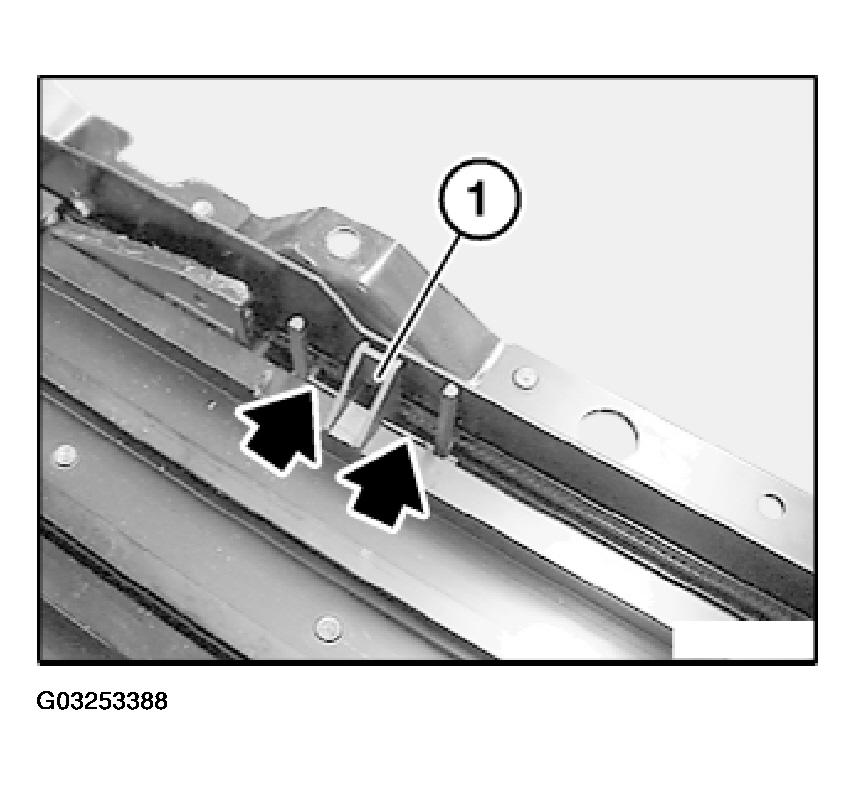

Fig 6: Installing Locking Lever And Lock Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Install locking lever (2) and lock retaining bracket.

Removing control carriage for wind deflector:

NOTE: Spring retainer (2) cannot be removed without incurring damage.

Lever out spring retainer (2) with screwdriver.

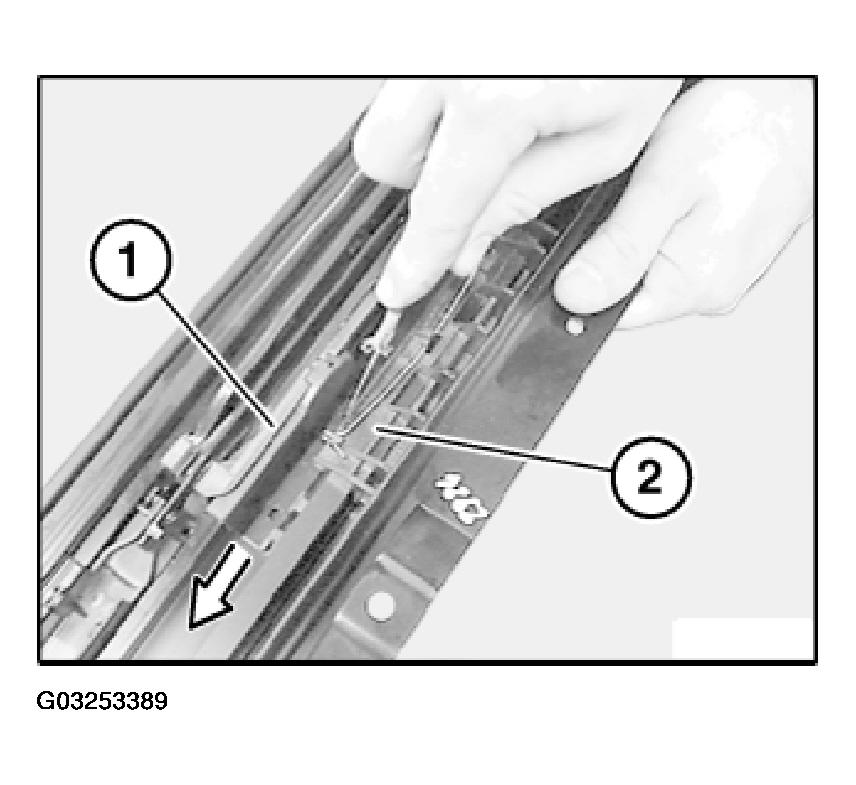

Fig 7: Removing Control Carriage For Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty spring retainer.

Pull control carriage (1) for wind deflector towards rear out of rail and remove.

NOTE: Check smooth and noise-free running of kinematics.
Check function.
