67 61 515 Replacing drive with gear (front) for actuating slide/tilt sunroof (panorama glass sunroof)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

E53: Remove mounting bracket from roofliner at front, refer to 51 44 020 REMOVING AND INSTALLING/REPLACING BRACKET ON ROOF LINING AT FRONT
E83: Remove front roofliner trim

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

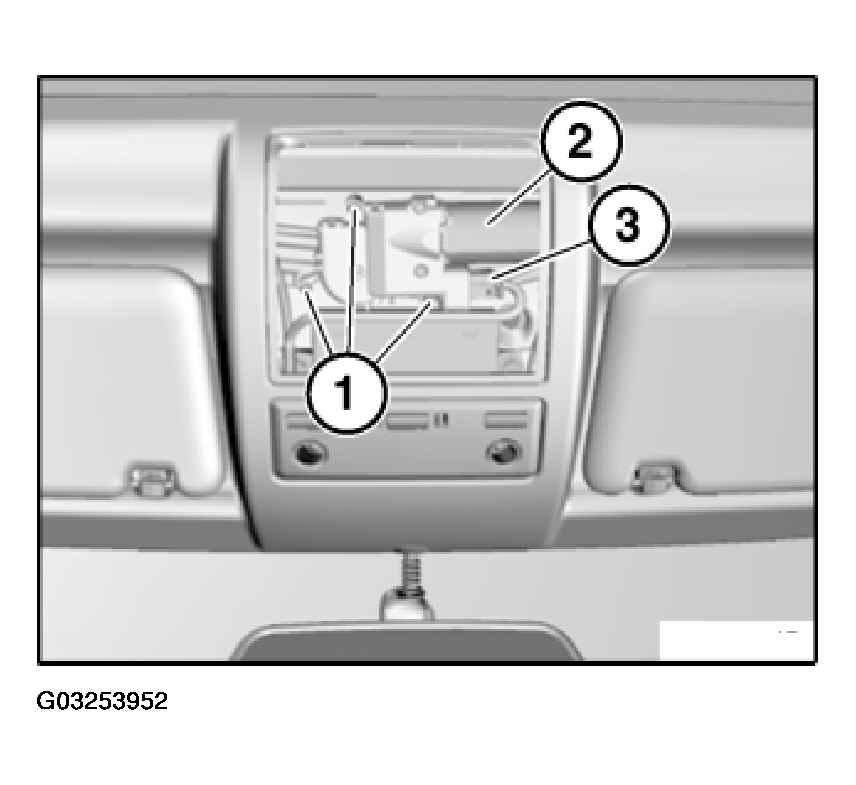

Release screws (1), tightening torque 54 13 1AZ. Refer to SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 1: Removing Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Lower drive with gear for actuating slide/tilt sunroof (2).

NOTE: Screws (1) are microencapsulated.

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Installation:

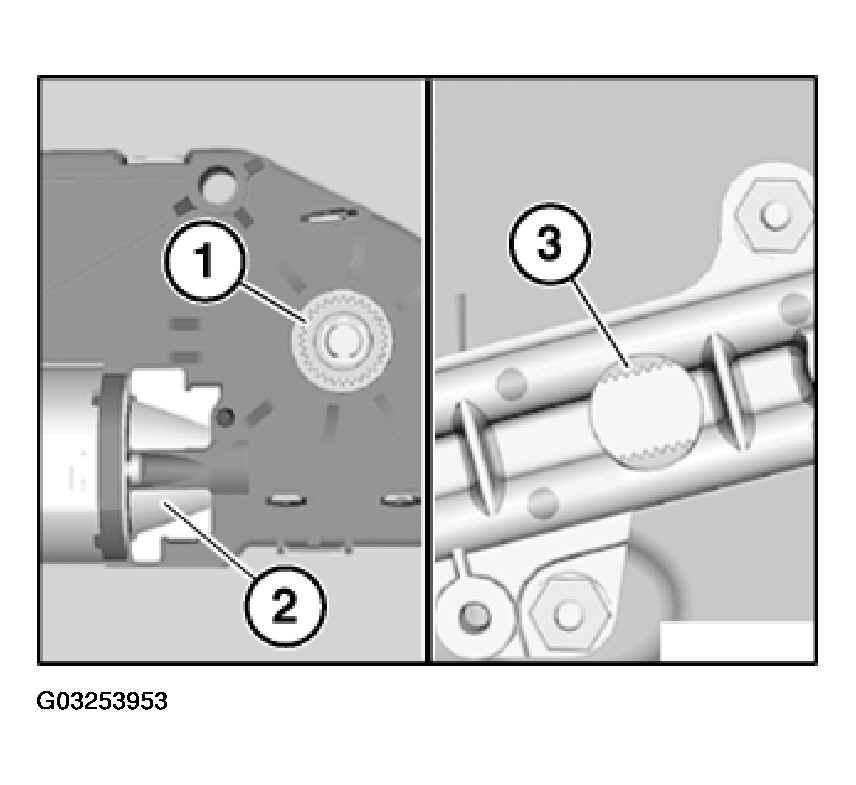

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Fig 2: Inserting Gear Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
