54 12 136 Removing and installing / replacing headliner for glass slide/tilt sunroof cover

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing left and right rubber gaiter for glass slide/tilt sunroof cover,

refer to 54 12 015 REPLACING LEFT OR RIGHT RUBBER GAITERS FOR GLASS SLIDE/TILT SUNROOF

Move mechanism into zero setting.

Slowly pull headliner forwards as far as it will go.

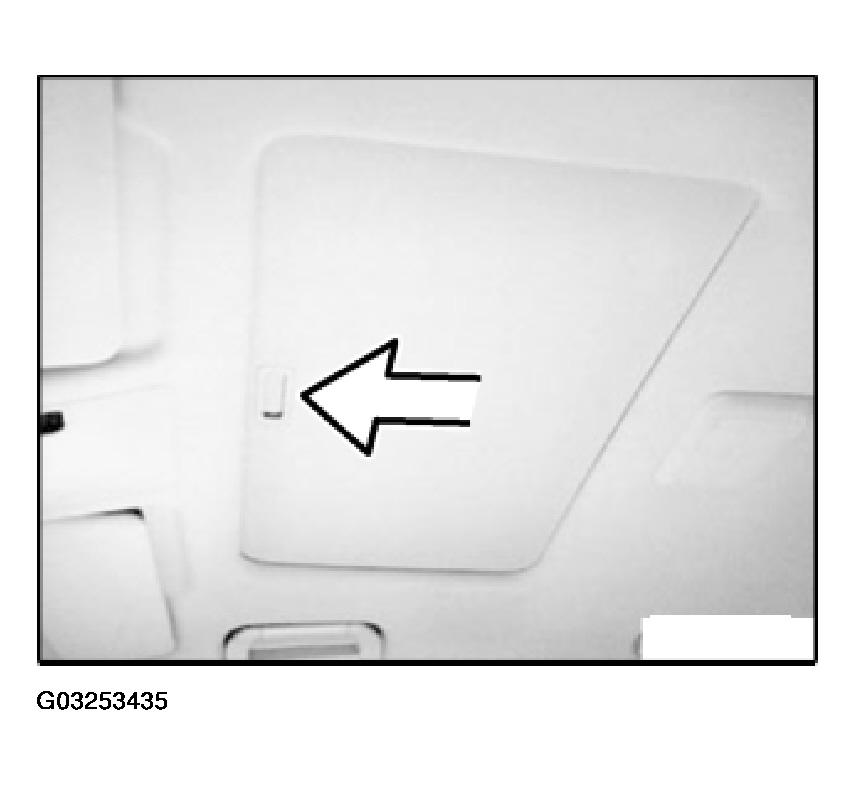

Fig 1: Pulling Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws (1).

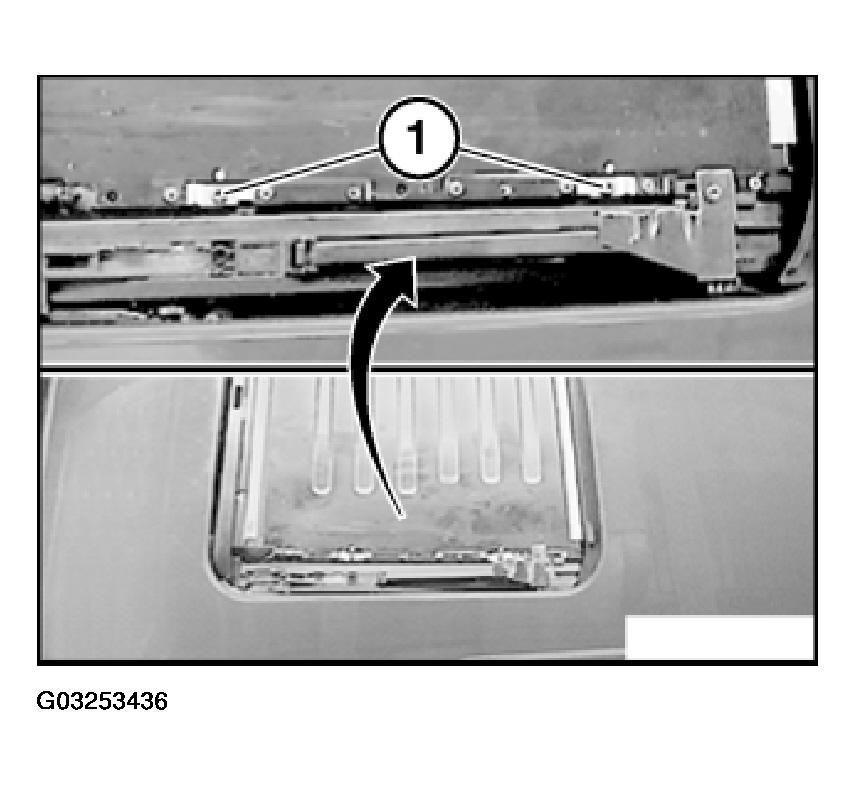

Fig 2: Unfastening Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift headliner upwards to remove.

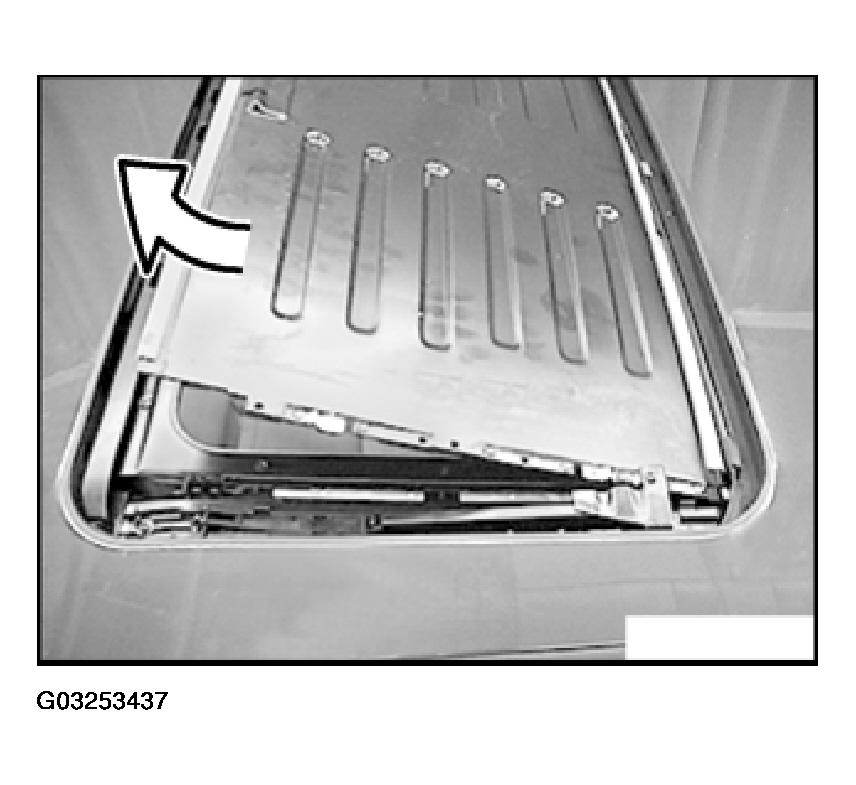

Fig 3: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert headliner (1) in support (2) from behind/left.

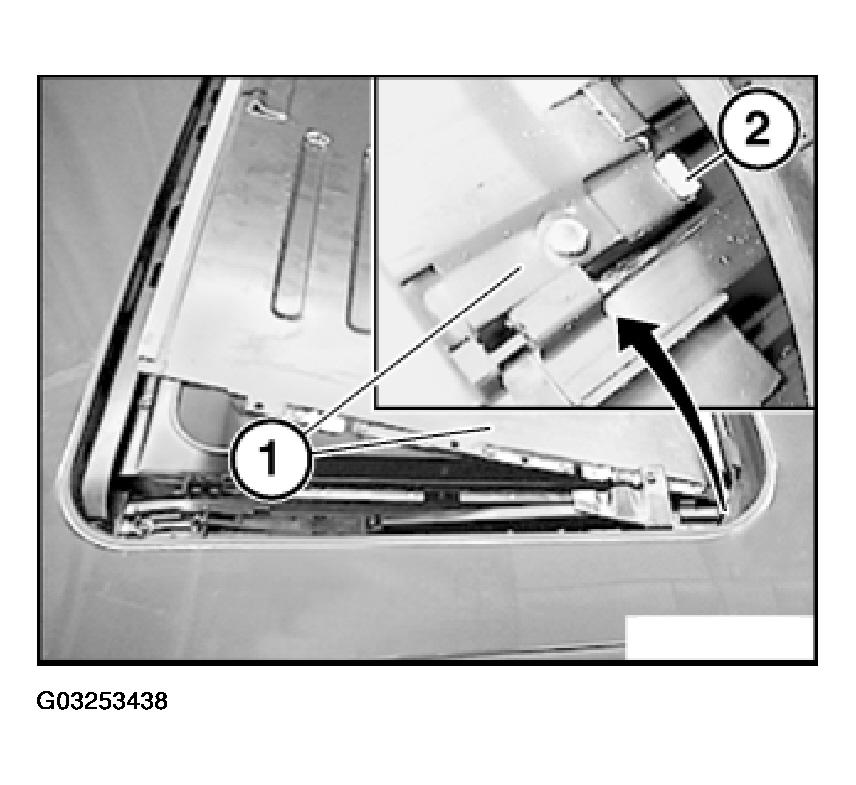

Fig 4: Inserting Headliner In Support

Courtesy of BMW OF NORTH AMERICA, INC.
