54 12 015 Replacing left or right rubber gaiters for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof cover, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

Move mechanism into lift position.

Unscrew bolt (1). Turn rubber gaiter (2) inwards and slide support (3) for rubber gaiter backwards.

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Slide support (1) for rubber gaiter out of guide (2) and pull forwards to remove.

Fig 2: Removing Support For Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

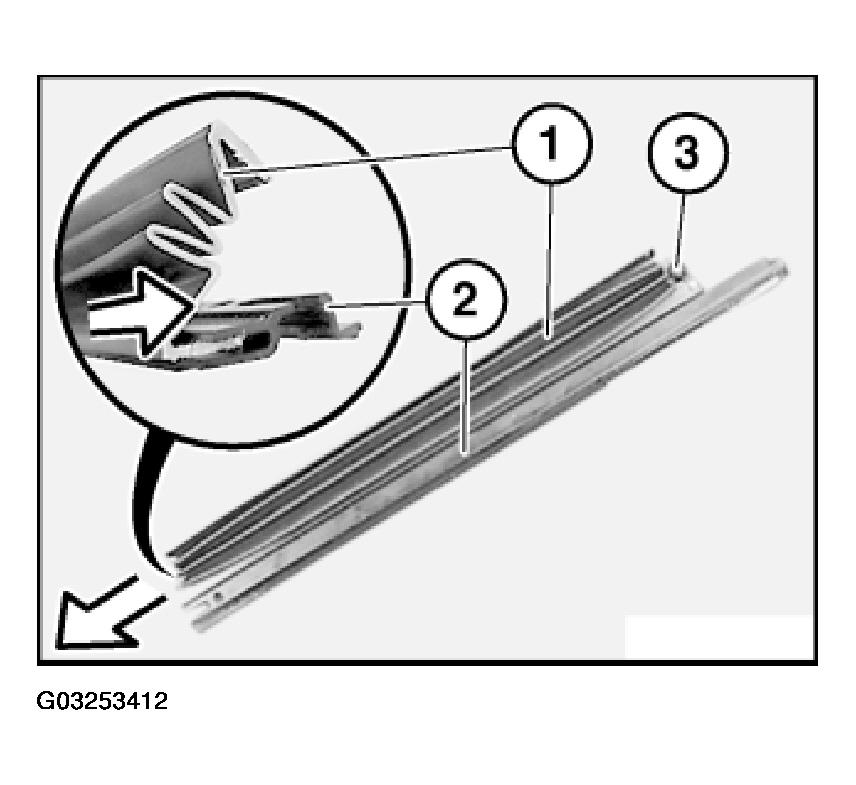

Pull rubber gaiter (1) out of support (2) (if necessary, fold over the crimped area).

Fig 3: Removing Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function of contact pressure roller (3).

Check function.
