54 12 126 Removing and installing / replacing headliner mechanism for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing and installing headliner for glass slide/tilt sunroof cover,

refer to 54 12 136 REMOVING AND INSTALLING / REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER

NOTE: Always replace headliner mechanism for glass slide/tilt sunroof in pairs.

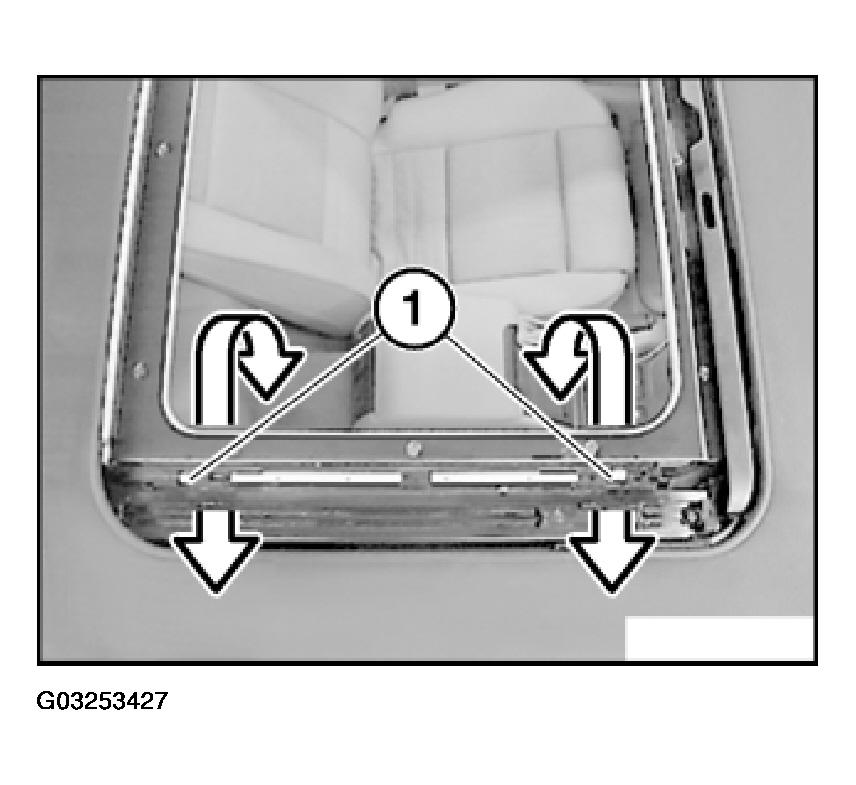

Slide headliner mechanism (1) fully forwards.

Fig 1: Sliding Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

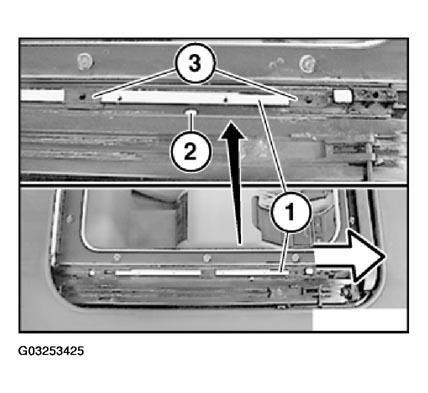

Move mechanism back until nipple (2) is located to right of plastic slides (3).

Removal of headliner mechanism with "flexible fulcrum pad"(only on right side):

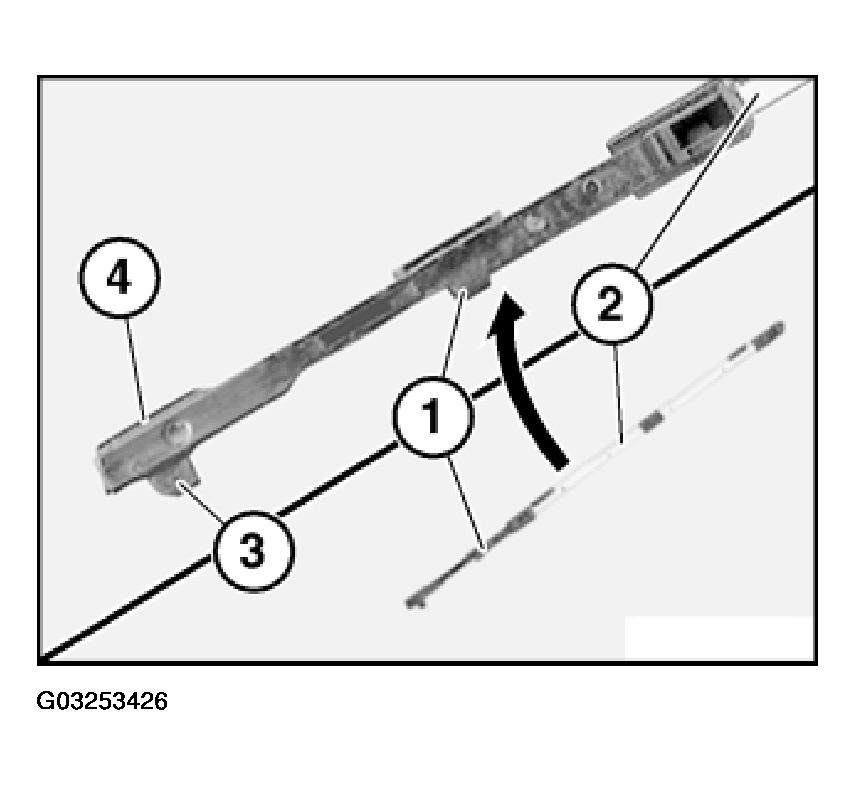

NOTE: The flexible fulcrum pad (1) is securely attached to the rail (2) (cannot be removed).

3 Outer guide

4 Inner guide

Fig 2: Identifying Outer And Inner Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

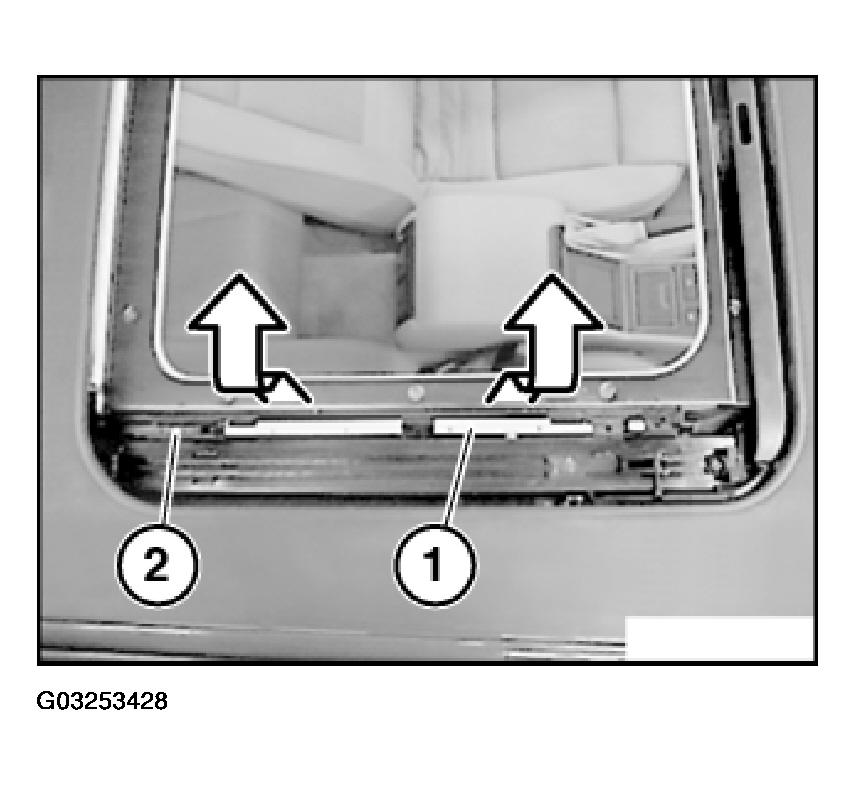

Tilt headliner mechanism inwards at front and back of strut (1) and pull outwards (this produces an audible click on flexible fulcrum pad).

Fig 3: Tilting Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Tilt headliner mechanism (1) outwards with flexible fulcrum pad (2) and pull inwards to remove from guide channel.

Fig 4: Removing Headliner Mechanism From Guide Channel

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

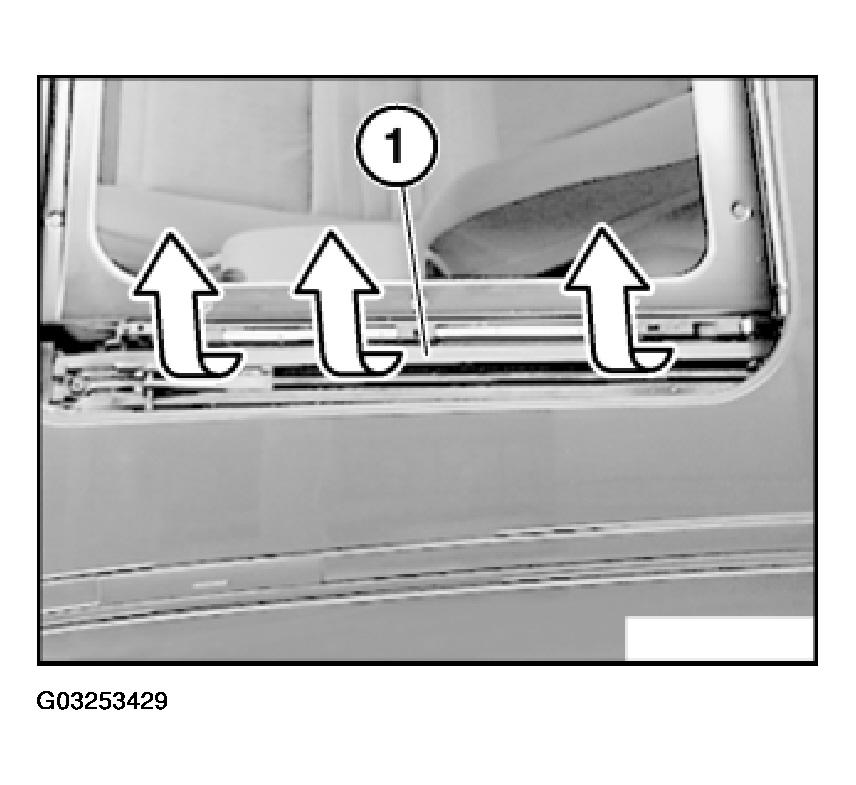

Unfasten headliner mechanism (1) and lift inwards/upwards to remove from guide channel.

Fig 5: Unfastening Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of headliner mechanism with "flexible fulcrum pad"(only on right side):

NOTE: To illustrate more clearly, installation shown with a removed glass slide/tilt sunroof.

Install the guide (1) on the flexible fulcrum pad and rest of headliner mechanism (2) facing outwards in guide channel (3).

Fig 6: Installing Guide

Courtesy of BMW OF NORTH AMERICA, INC.

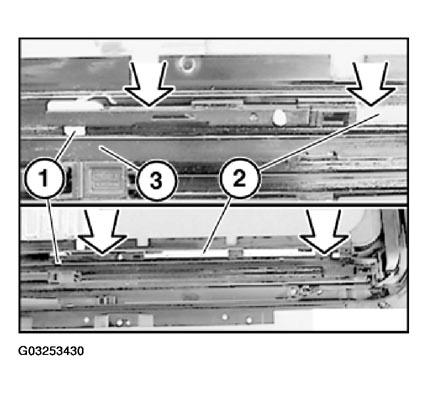

Press headliner mechanism inwards (1) and press outer guide downwards (2) into the guide channel.

Fig 7: Pressing Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
