51 24 120 Removing and installing/replacing left or right lock for rear lid lower section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for rear lid lower section. See 51 49 090 Removing And Installing/Replacing Trim For Rear Lid Lower Section .

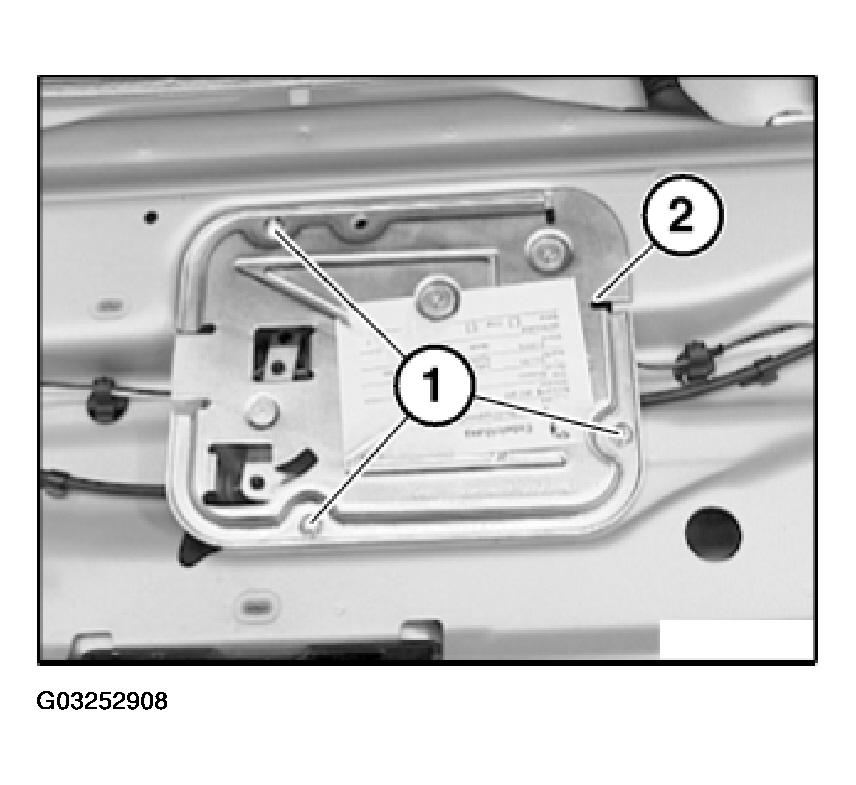

Release screws (1) on drive (2).

Fig 1: Removing Screws On Drive (2)

Courtesy of BMW OF NORTH AMERICA, INC.

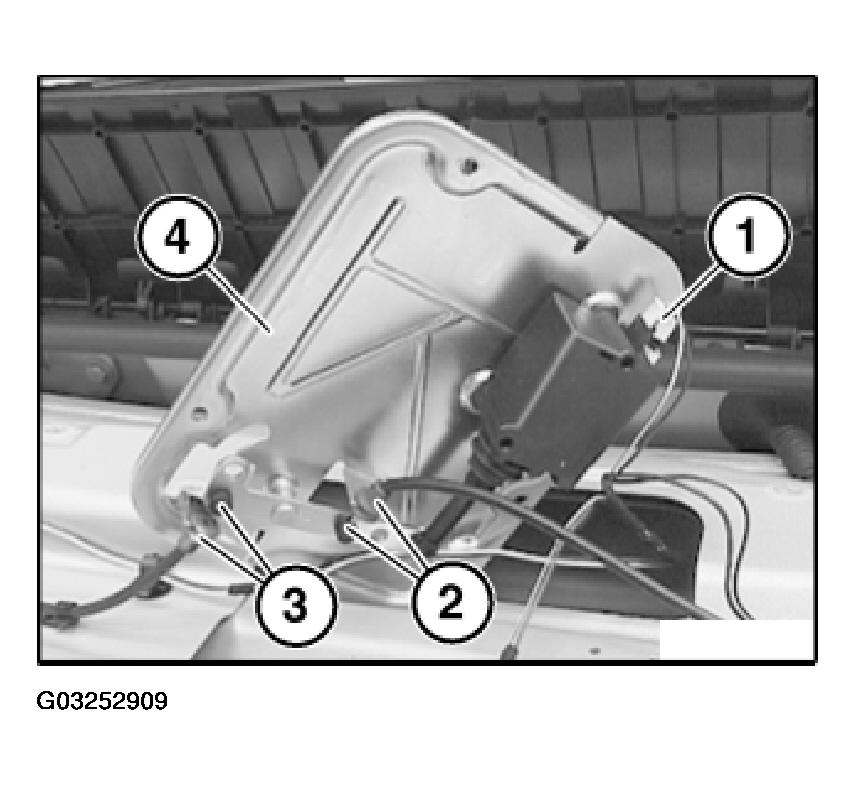

Unfasten plug connection (1).

Lever out Bowden cable (2) from right lock and (3) from left lock and remove drive (4).

Fig 2: Removing Drive (4)

Courtesy of BMW OF NORTH AMERICA, INC.

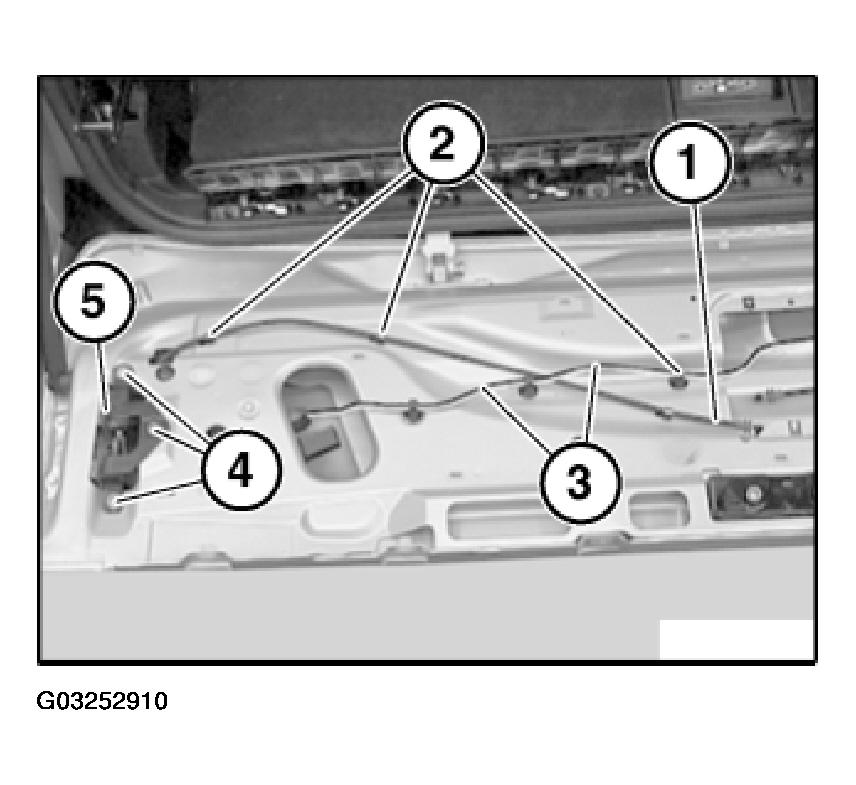

Unclip Bowden cable (1) from holders (2).

Release screws (4) and remove left or right lock (5).

Installation:

Lay Bowden cable (1) under cable (3).

Fig 3: Uncliping Bowden Cable From Holders (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

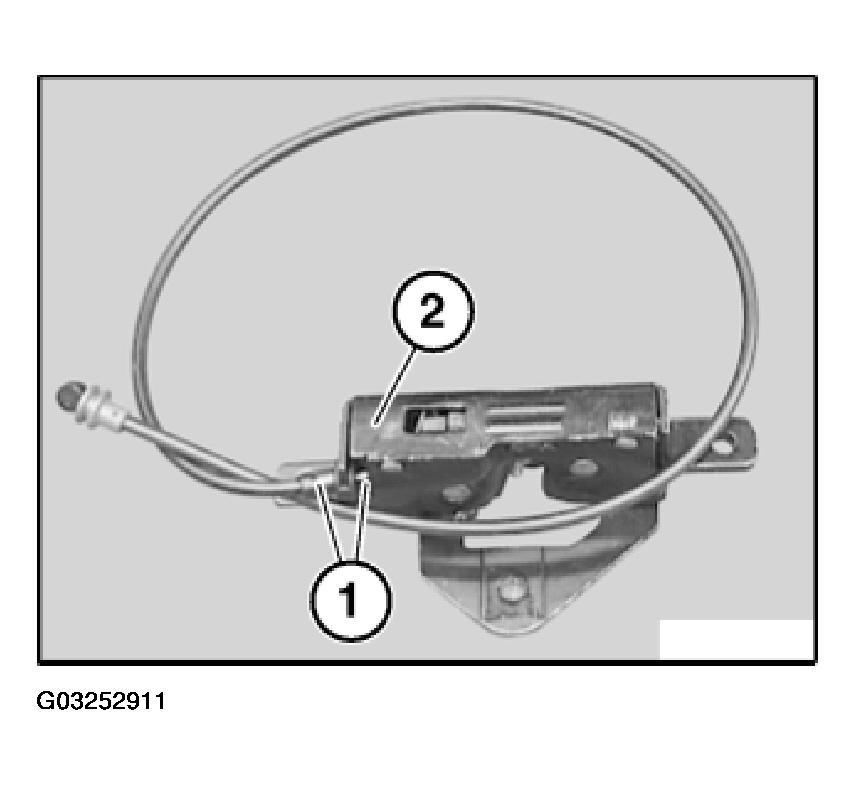

Bowden cable (1) must engage correctly in lock (2).

Fig 4: Engaging Bowden Cable (1) In Lock (2)

Courtesy of BMW OF NORTH AMERICA, INC.
