51 49 090 Removing and installing/replacing trim for rear lid lower section

Remove cover for loading sill. See 51 49 080 Removing And Installing/Replacing Cover For Loading Sill (On Rear Lid Lower Section) .

Remove insert for trim on rear lid lower section. See 51 49 085 Removing And Installing/Replacing Insert For Trim On Rear Lid Lower Section .

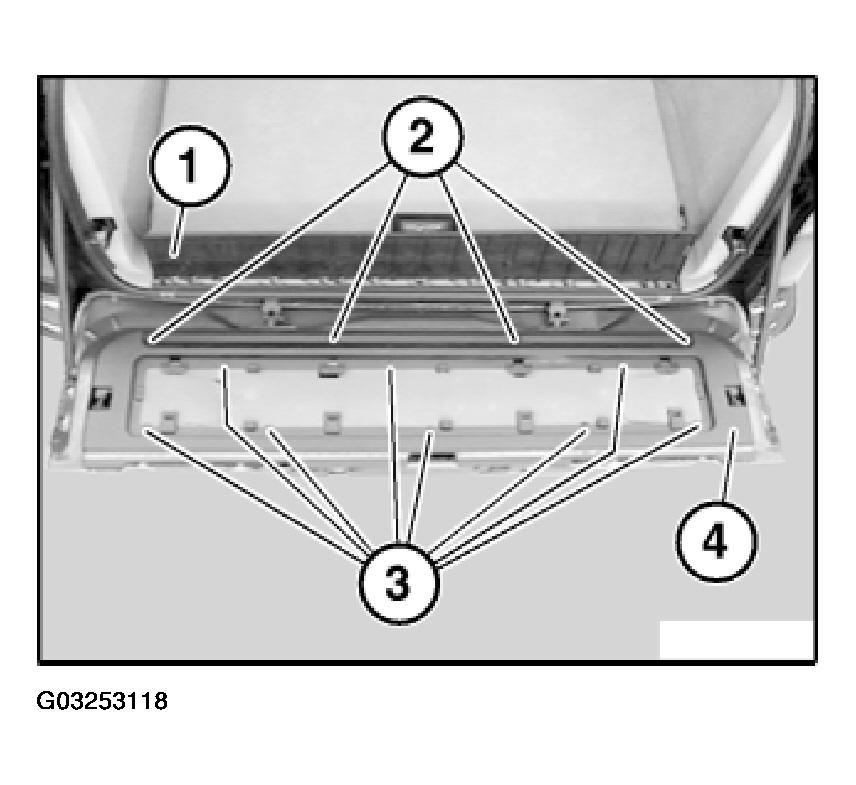

Raise cover (1) and release screws (2).

Release screws (3) and remove trim (4).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

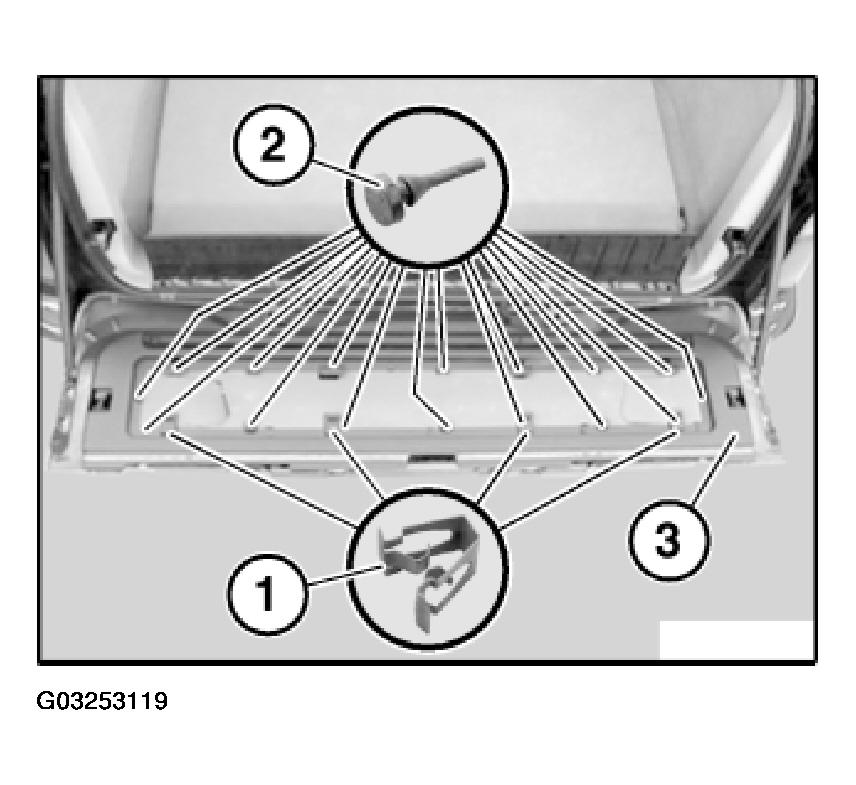

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).

Fig 2: Checking Retainers And Rubber Parts On Rear Lid Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

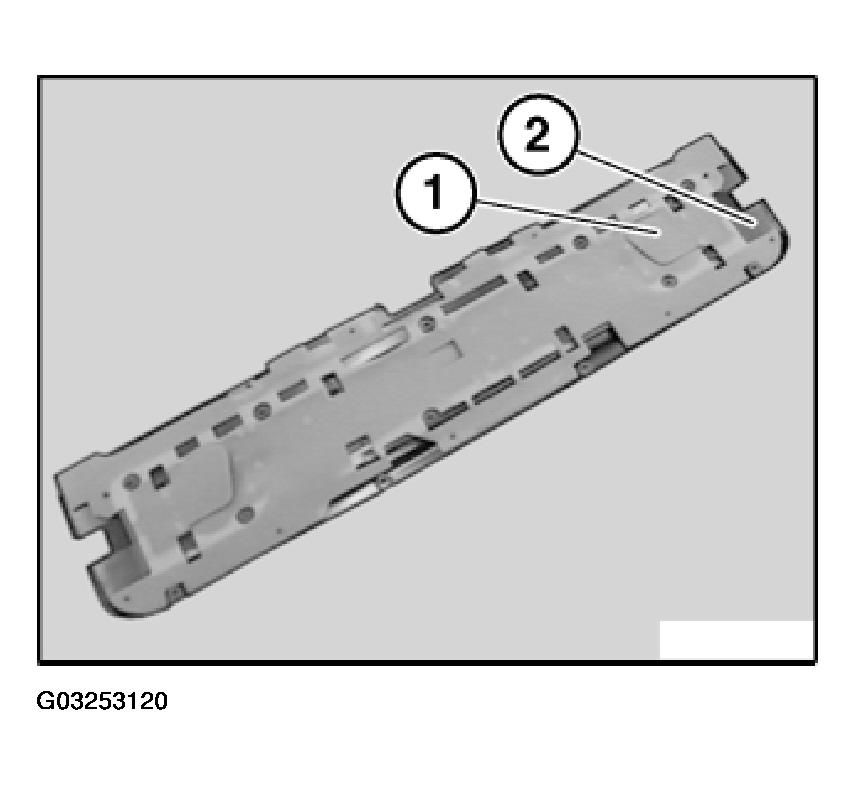

Remove insulating mat (1) from old trim (2) and insert in new trim.

Fig 3: Removing Insulating Mat From Old Trim

Courtesy of BMW OF NORTH AMERICA, INC.
