51 24 115 Removing and installing/replacing striker for rear lid upper section
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim for rear lid lower section. See 51 49 090 Removing And Installing/Replacing Trim For Rear Lid Lower Section .

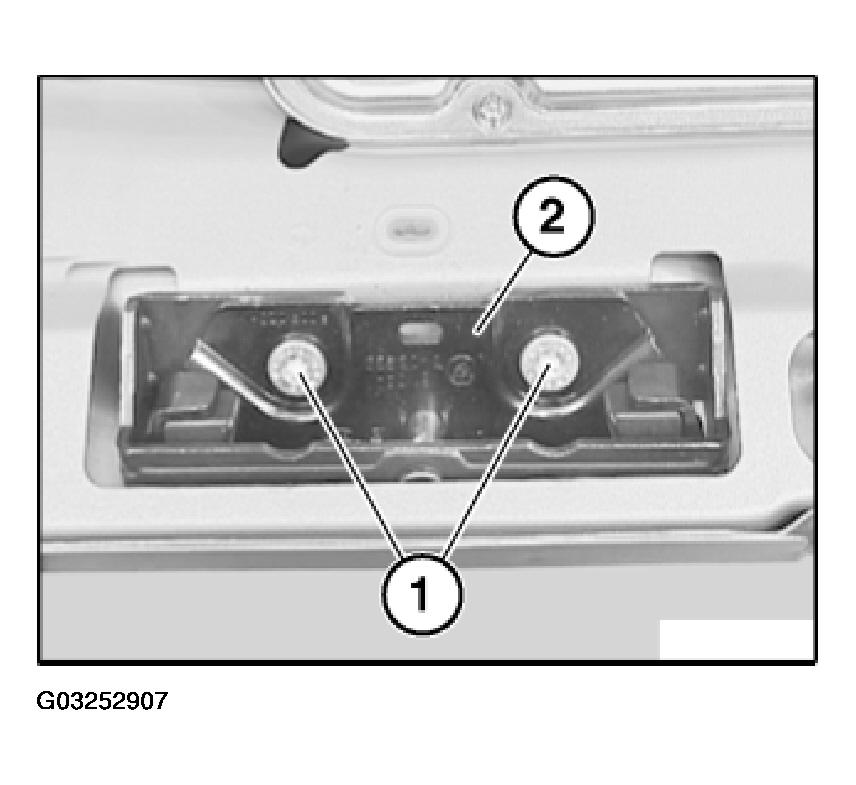

Release screws (1) and remove striker (2).
Installation:
Adjust rear lid latch (striker) for upper section of rear lid lock.
CAUTION:
Closing bracket and rear lid lock must not be greased.
