51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly. See 51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly .

Remove entrance cover strip at front (inside).

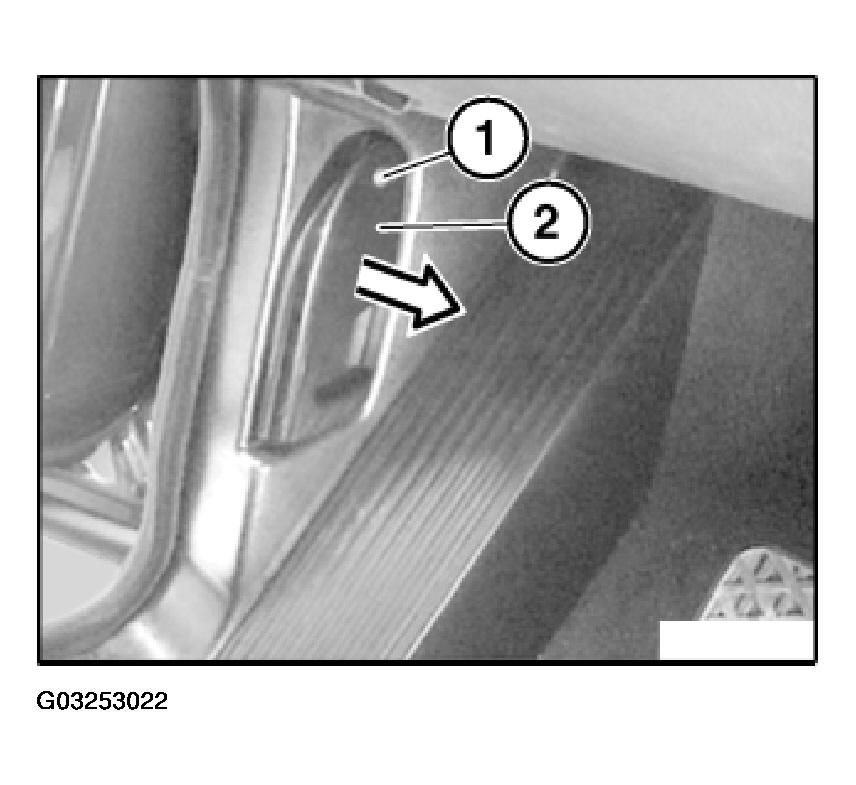

Release screw (1) and remove release lever (2).

Fig 1: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

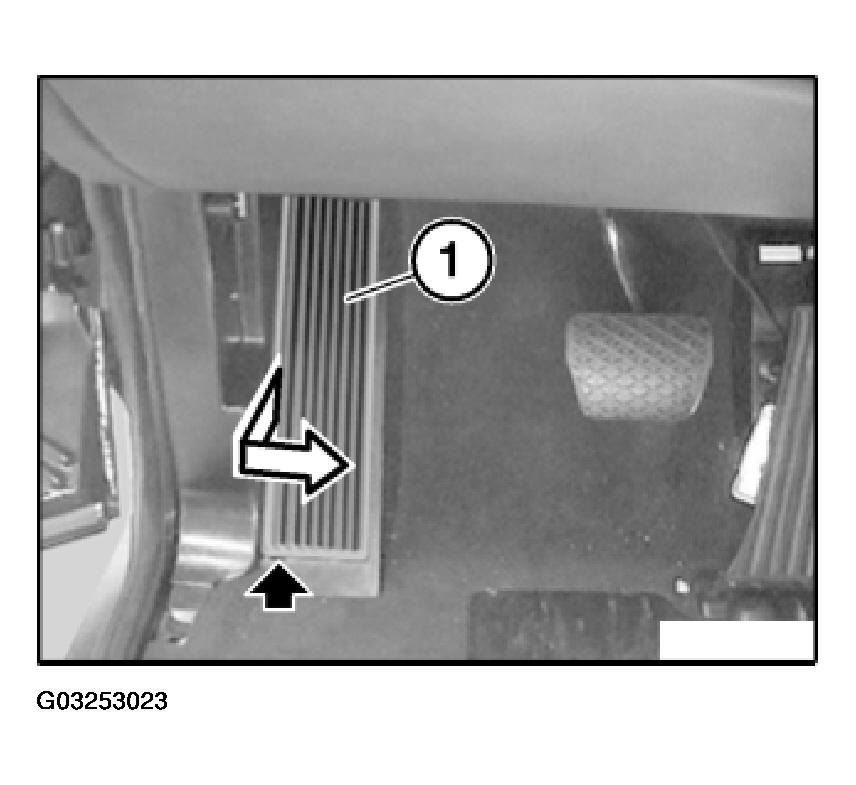

Unclip running board (1) on outside from below towards top and remove towards interior.

Fig 2: Removing Towards Interior

Courtesy of BMW OF NORTH AMERICA, INC.

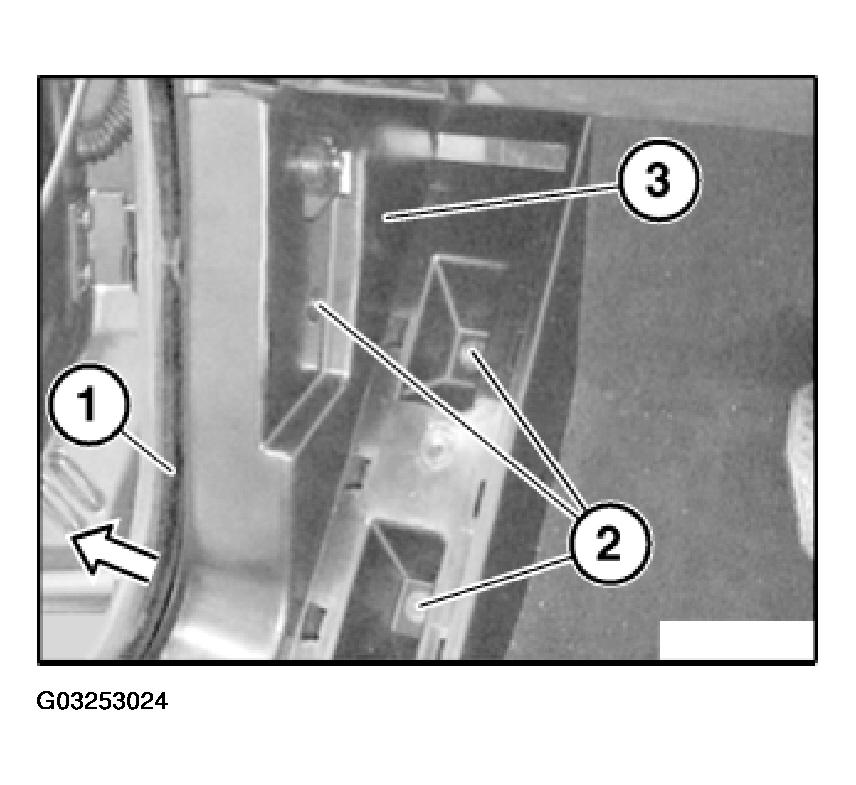

Detach mucket (1) in area of footwell trim (3).

Release screws (2).

Remove footwell trim (3) towards front/interior.

Fig 3: Removing Footwell Trim Towards Front/Interior

Courtesy of BMW OF NORTH AMERICA, INC.
