51 34 171 Replacing rear left or right door window

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove sound insulation on rear door. See 51 48 ... Removing And Installing/Replacing Sound Insulation In Rear Door, Left Or Right .

NOTE: When removing the power window lift (51 37 000), do not remove the door window glass.

Only for removal and installation of door window glass:

If necessary, remove trim on window frame of rear door (front). 51 34 420 Removing And Installing/Replacing Trim On Window Frame Of Rear Door (Front), Left Or Right .

Open door window glass to distance (A).

A approx. 85 mm

CAUTION: Disconnect battery negative lead.

Loosen bolt (1).

NOTE: When removing the power window lift (51 37 000), do not remove the door window glass.

If necessary, stow door window glass towards bottom in rear door.

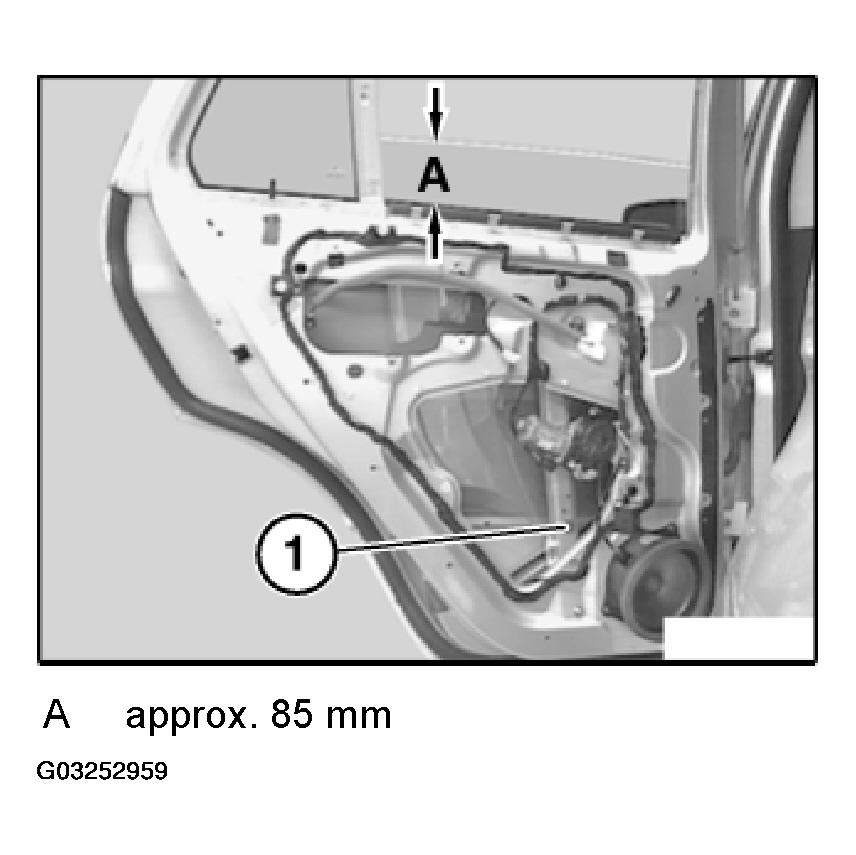

Fig 1: Opening Door Window Glass To Distance (A)

Courtesy of BMW OF NORTH AMERICA, INC.

After removing or replacing door window glass:

Remove door window glass towards top.

Installation:

Each time the door window glass is removed or replaced, the holder (2) must be replaced.

If necessary, fit new screw (1) and nut (3) on door window glass (4).

NOTE: Door window glass does not need to be adjusted.

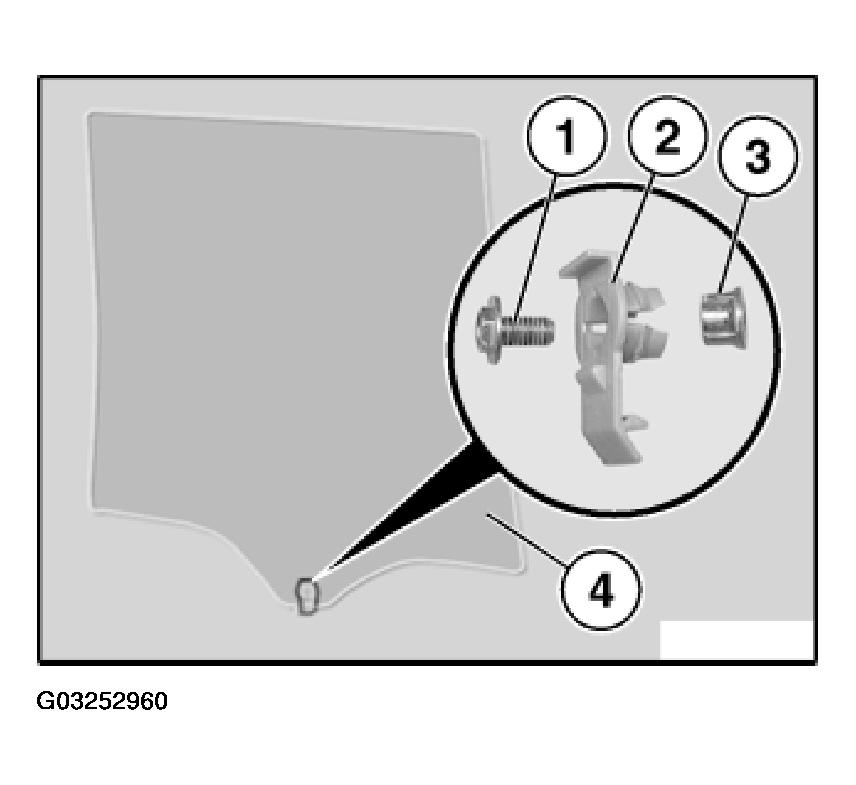

Fig 2: Fitting Screw And Nut On Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
