51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right

Open door window.

Remove rear door trim panel. See 51 42 000 Removing And Installing Rear Left Or Right Door Trim Panel .

Remove window cavity cover strip on outside of rear door. See 51 22 300 Removing And Installing/Replacing Window Cavity Cover Strip On Rear Door On Left Or Right .

Pull out window rubber guide in front area.

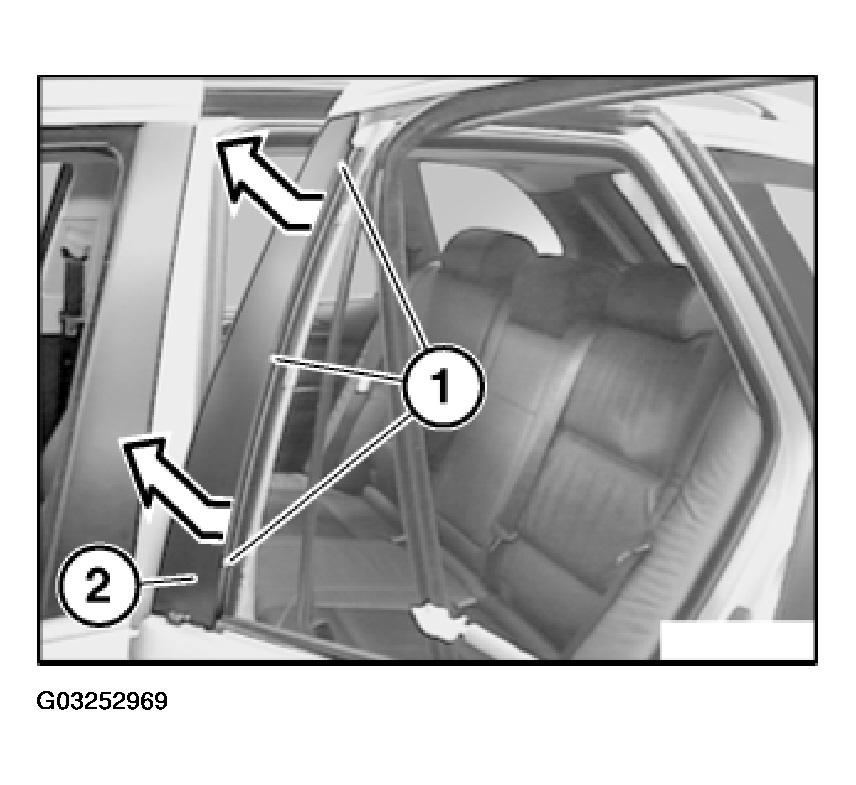

Carefully pull out clip (1) and lever out trim (2) in front area.

Fig 1: Pulling Out Clip And Lever Out Trim In Front Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

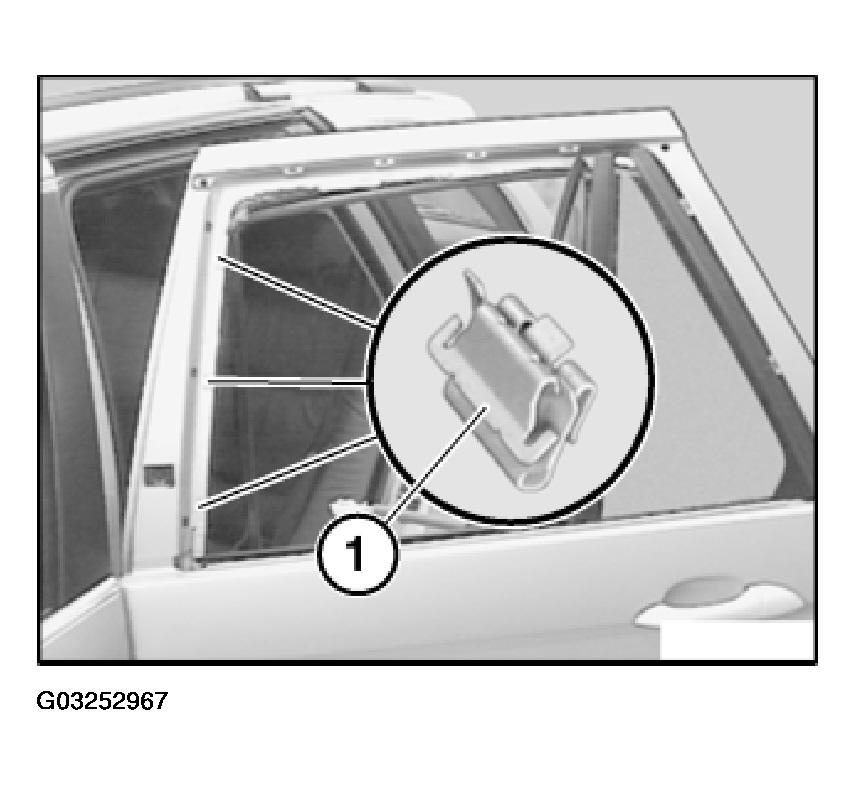

If applicable, replace defective clips (1).

Fig 2: Inspecting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

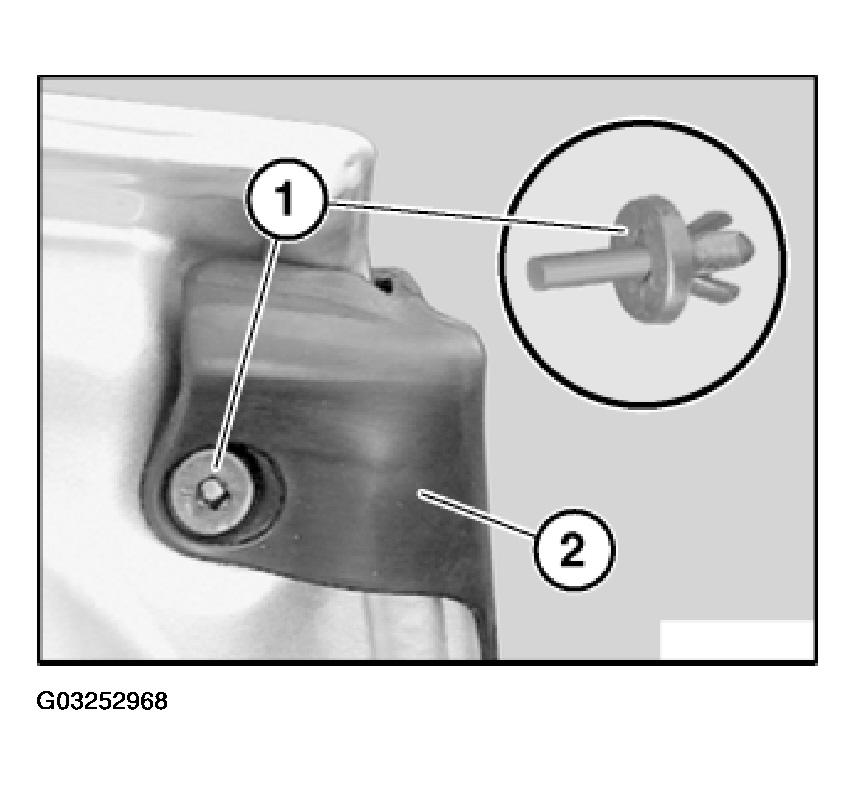

Release expansion rivet (1) on seal (2).

Fig 3: Releasing Expansion Rivet On Seal

Courtesy of BMW OF NORTH AMERICA, INC.

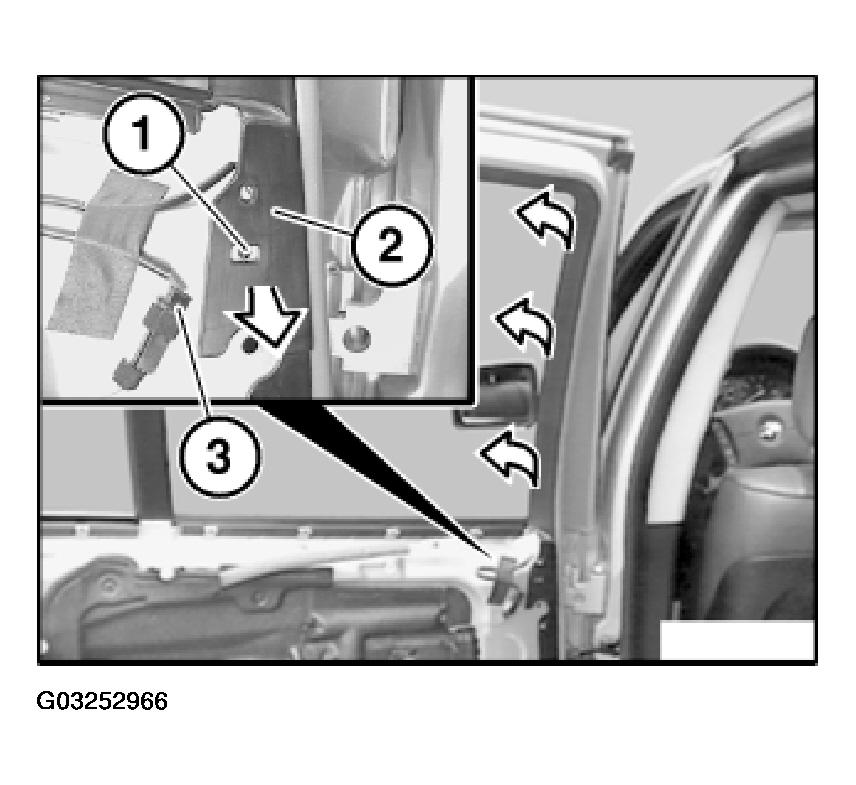

Release screws (1) and detach trim (2).

Fig 4: Releasing Screws And Detach Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

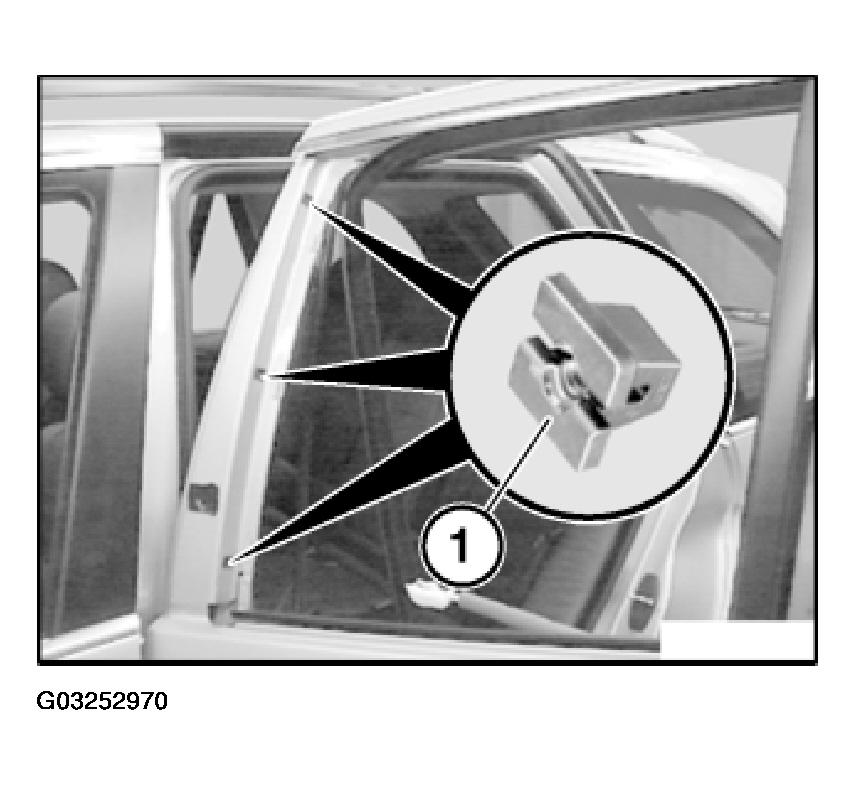

If necessary, replace faulty plastic nuts (1).

Fig 5: Inspecting Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

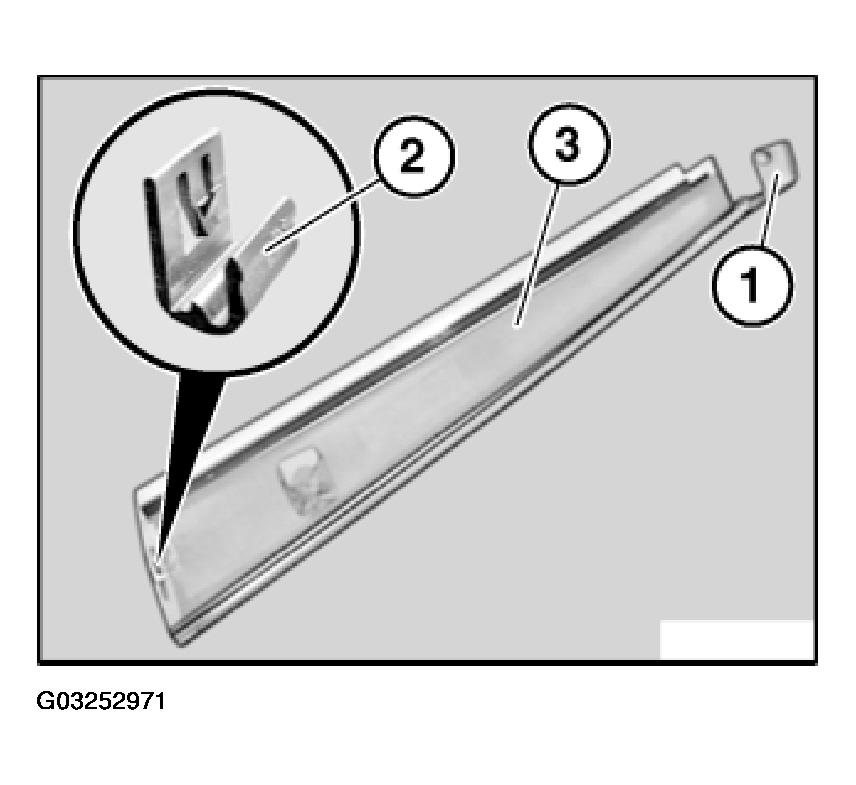

Seal (1) must not be damaged.

If necessary, replace faulty clip (2) on trim (3).

Fig 6: Inspecting Clip On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
