51 49 080 Removing and installing/replacing cover for loading sill (on rear lid lower section)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear reflector (in rear lid lower section). See 63 14 120 REMOVING AND INSTALLING/REPLACING REAR REFLECTOR .

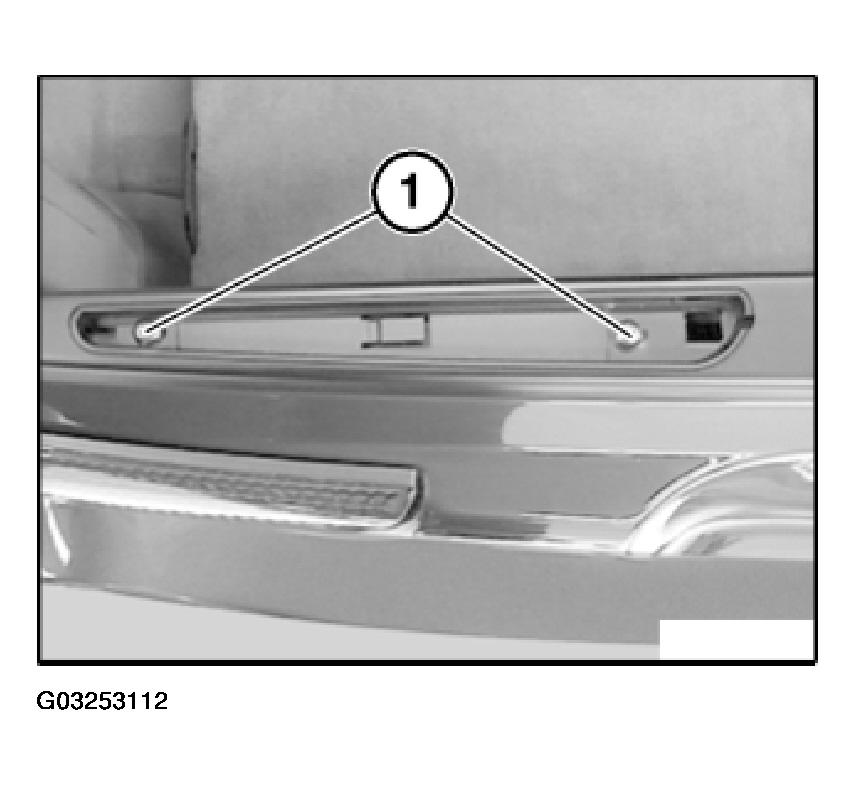

Release left/right screws (1).

Fig 1: Releasing Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

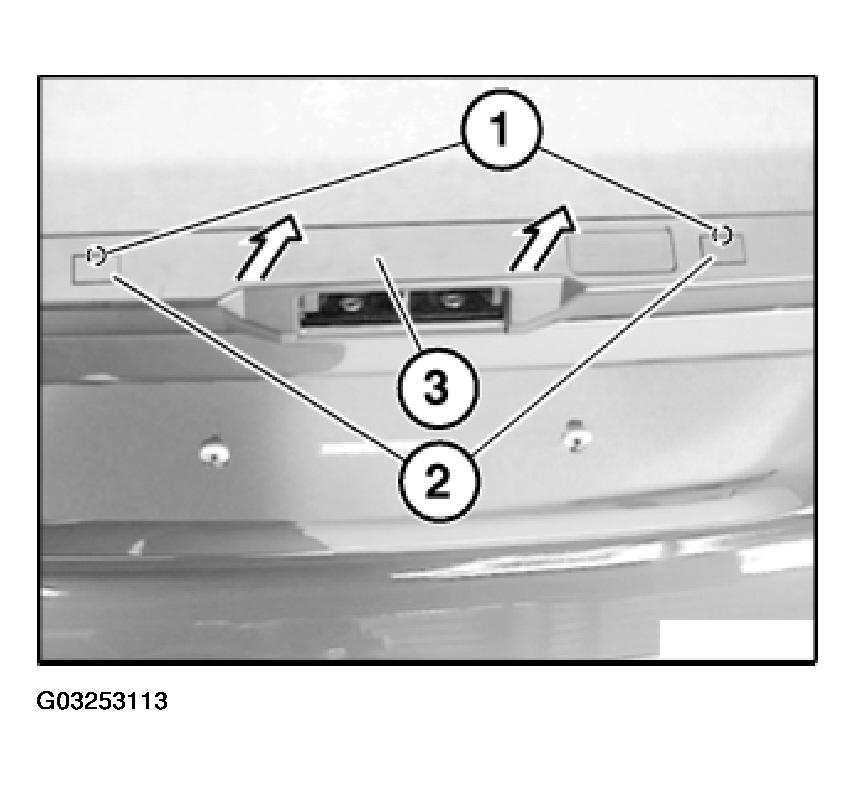

Using a small screwdriver, lever out covers (2) by means of chamfers (1) and release screw underneath.

Pull off cover (3) for loading sill.

Fig 2: Pulling Off Cover For Loading Sill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

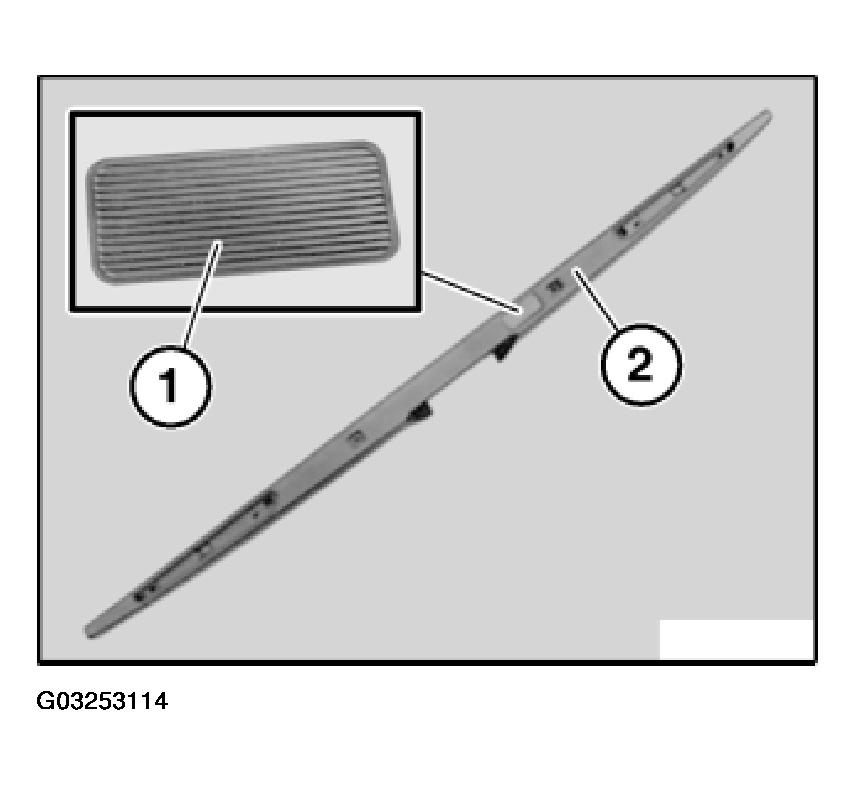

If necessary, replace faulty cover (1) for button on cover (2) for loading sill.

Fig 3: Checking Cover For Button On Cover For Loading Sill

Courtesy of BMW OF NORTH AMERICA, INC.
