Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lamps (in rear lid upper section). 63 31 080 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LIGHT .

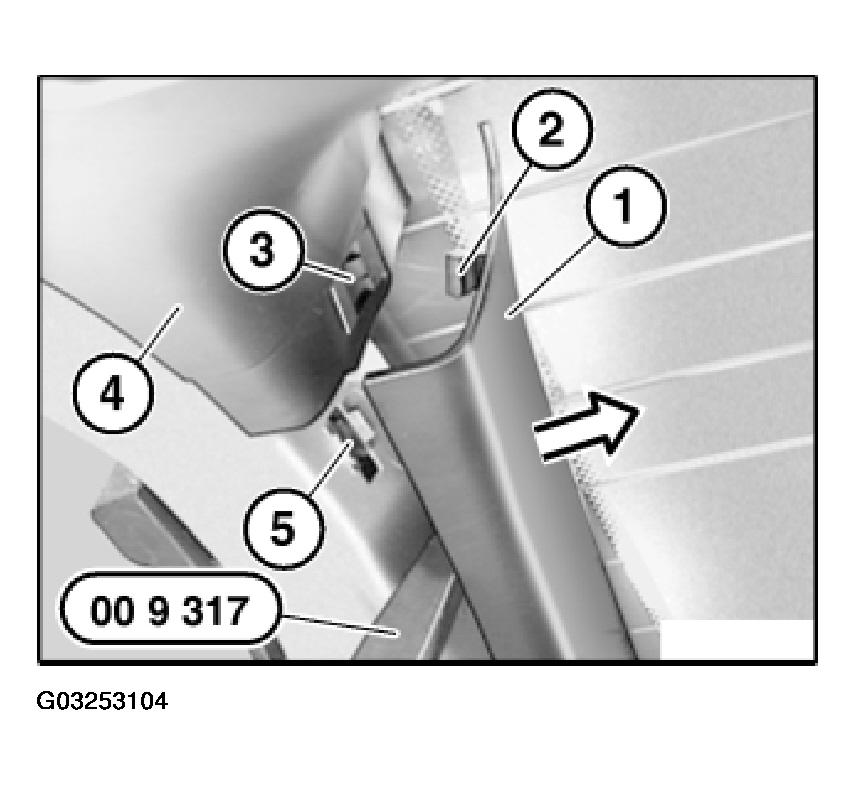

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

Installation:

If necessary, replace faulty retainer (5).

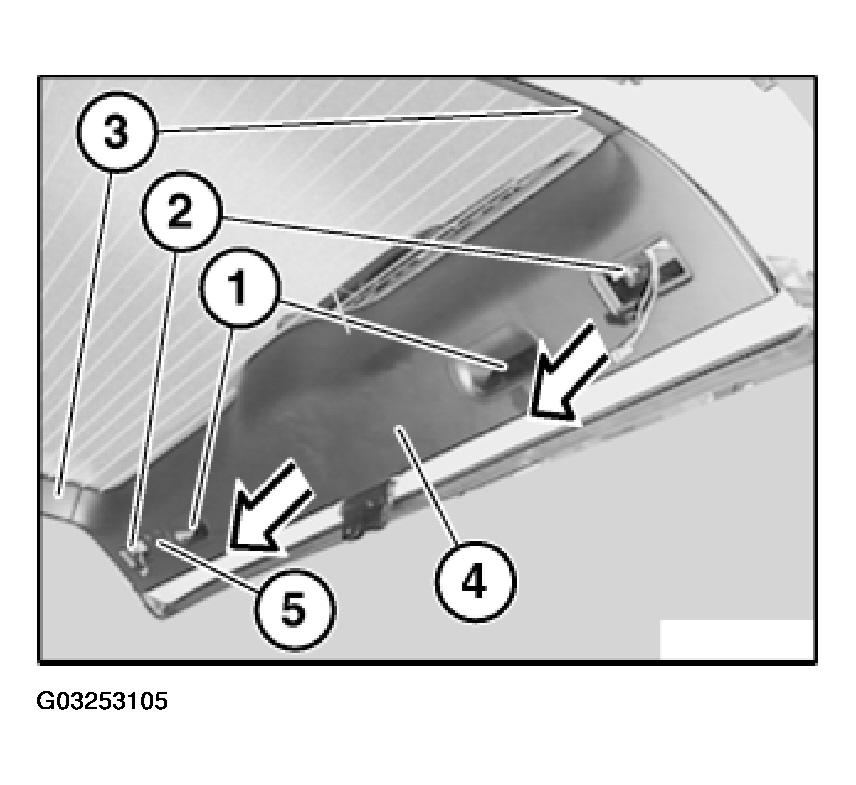

Fig 1: Checking Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective caps (1) and release screws underneath.

Release screws (2).

Lever out side trims (3) and clip out lower trim (4).

Feed emergency actuator (5) out of trim (4).

Fig 2: Removing Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainers (1) and clips (2) in trim (3).

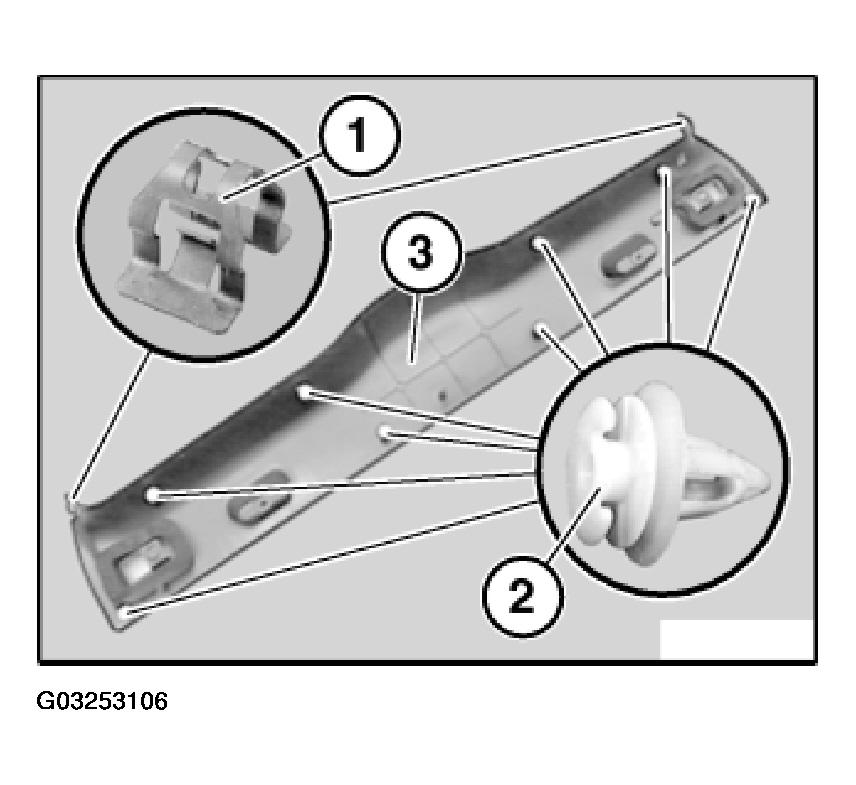

Fig 3: Checking Retainers And Clips In Trim

Courtesy of BMW OF NORTH AMERICA, INC.
