63 31 080 Removing and installing/replacing luggage compartment light (in rear lid, top)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

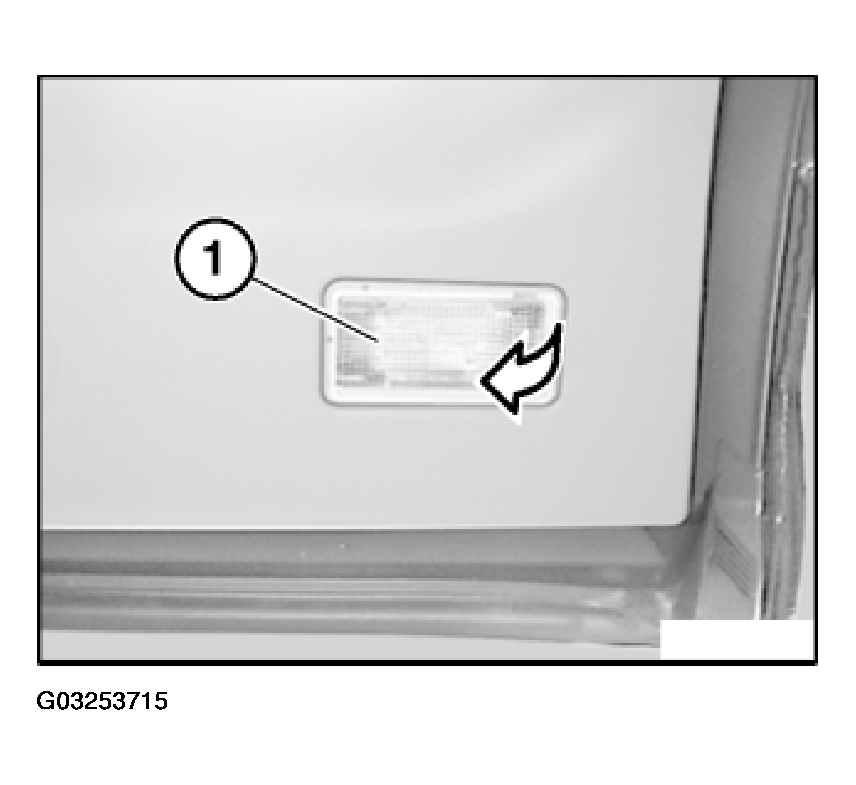

Lever out luggage compartment light (1) in direction of arrow.

Fig 1: Removing Luggage Compartment Light
G03253715Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and remove luggage compartment light (1).
