Replacing Rear Bumper Center Section (Carrier) (51 12 011):

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete rear bumper. See 51 12 000 Removing And Installing Complete Rear Bumper .

Release expansion rivets (1).

Remove cover (2) on left/right.

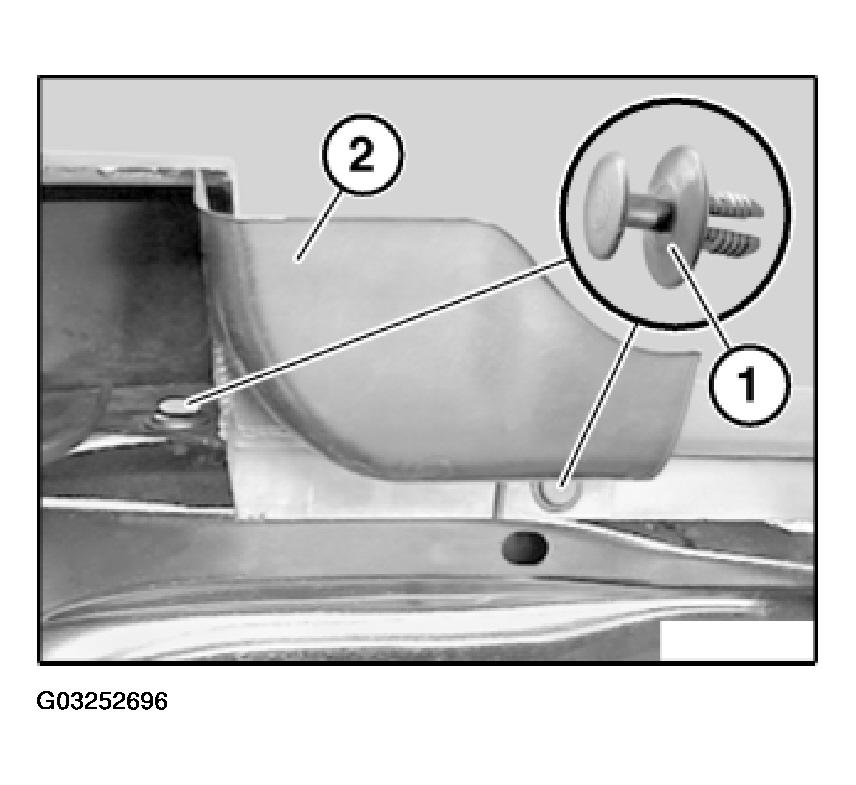

Fig 1: Releasing Expansion Rivets
G03252696Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) and remove bumper center section (2) (carrier).

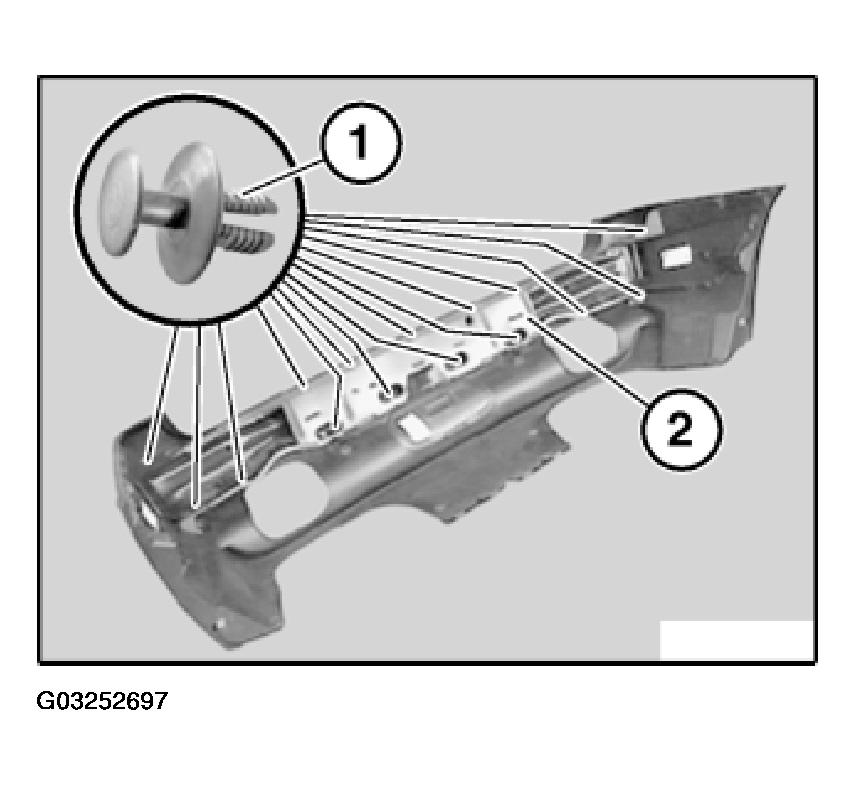

Fig 2: Releasing Expansion Rivets And Removing Bumper Center Section
G03252697Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The work for "Replacing rear bumper center section (carrier) (51 12 011)" ends here.
