51 16 201 Replacing center console

Remove trims for center console. See 51 16 220 Replacing Trims For Center Console .

Remove rear center console with cup holder. See 51 16 204 Removing And Installing/Replacing Rear Cup Holder .

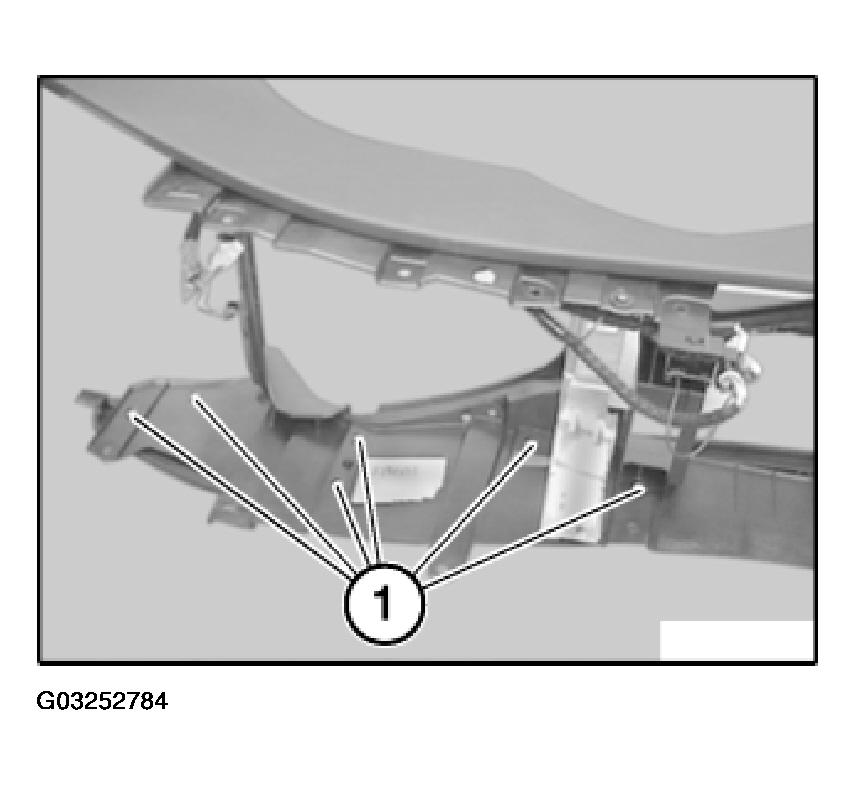

Release left/right screws (1).

Fig 1: Releasing Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

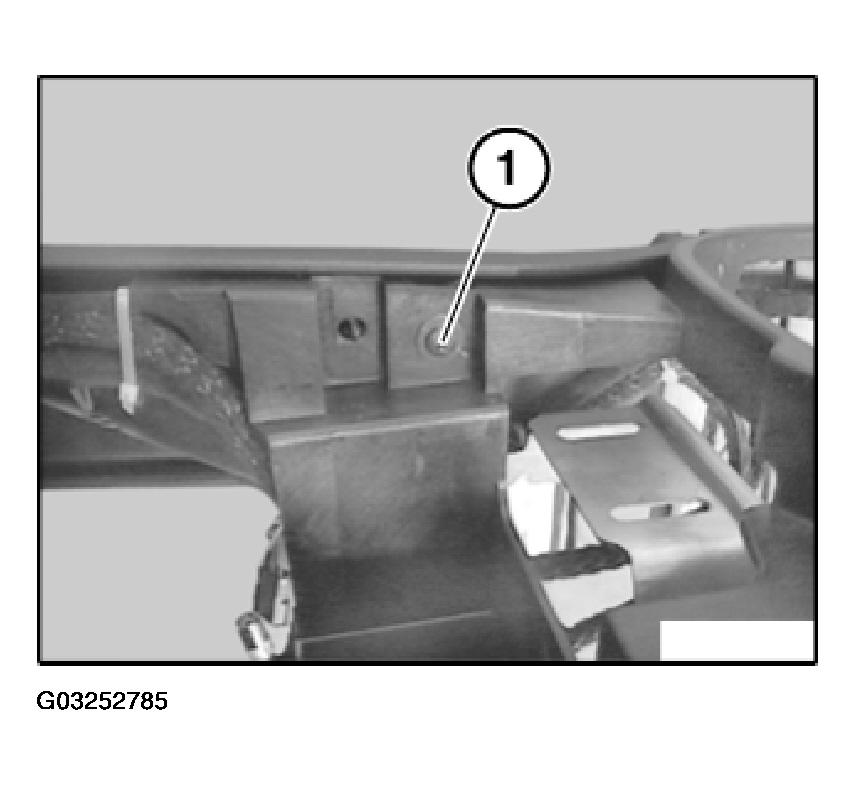

In addition, release screw (1) on driver's side.

Fig 2: Releasing Screw On Driver's Side

Courtesy of BMW OF NORTH AMERICA, INC.

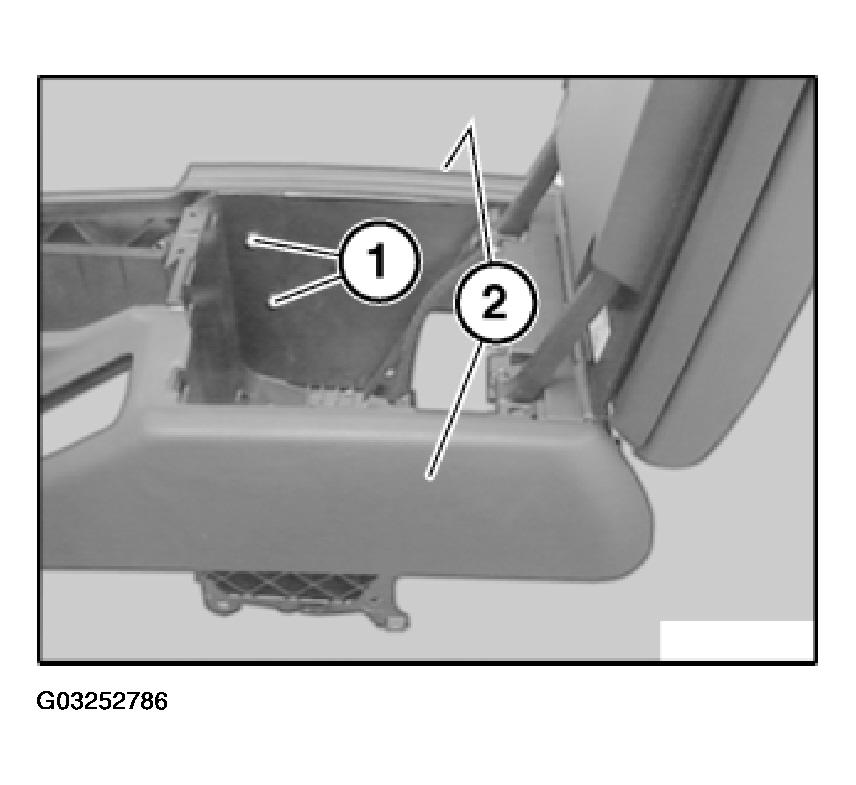

Release left/right screws (1) and remove side sections (2).

Fig 3: Releasing Left/Right Screws And Removing Side Sections (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

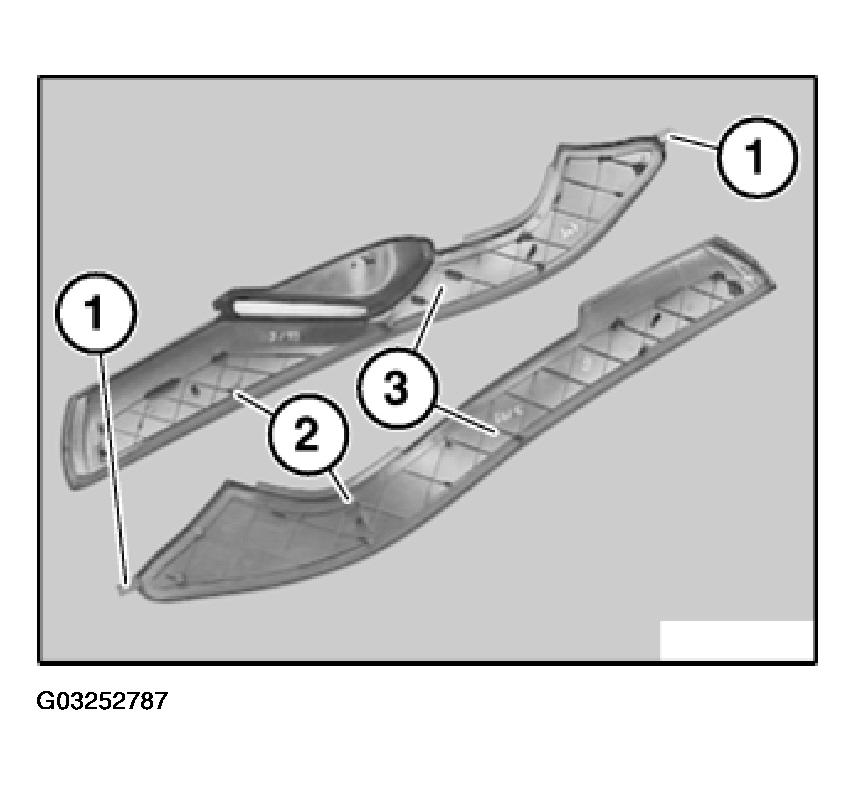

Guides (1) and all screw points (2) of side sections (3) must not be damaged.

Fig 4: Checking Guides And All Screw Points Of Side Sections

Courtesy of BMW OF NORTH AMERICA, INC.

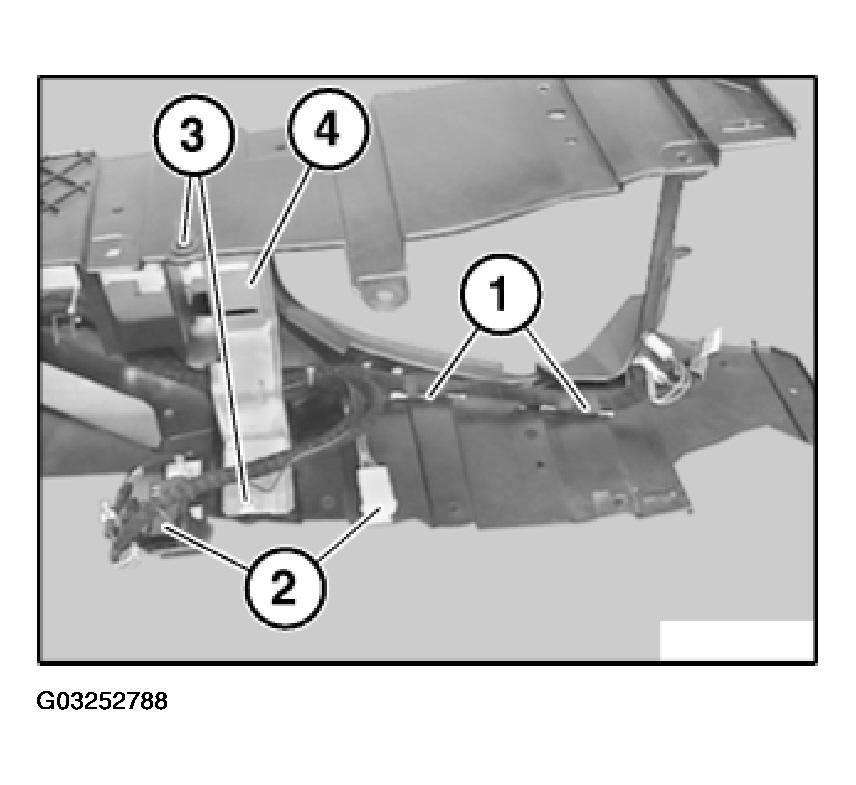

Release cable holder (1).

Turn and detach plug connections (2).

Release screws (3) and remove holder (4).

Fig 5: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

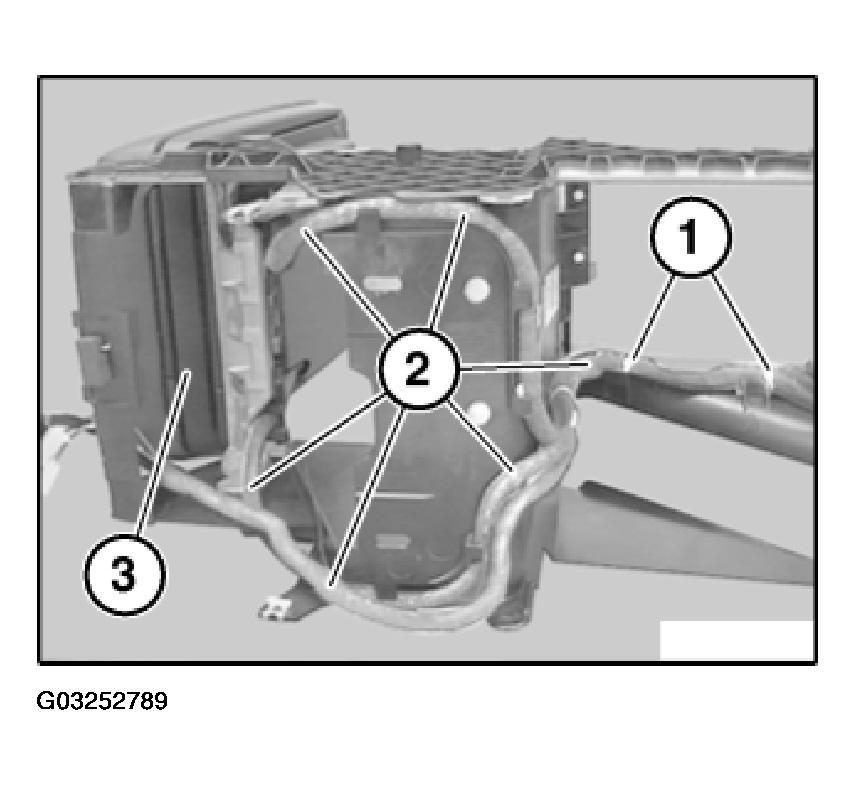

Unfasten cable clip (1).

Feed cable (2) out of center console (3).

Fig 6: Unfastening Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

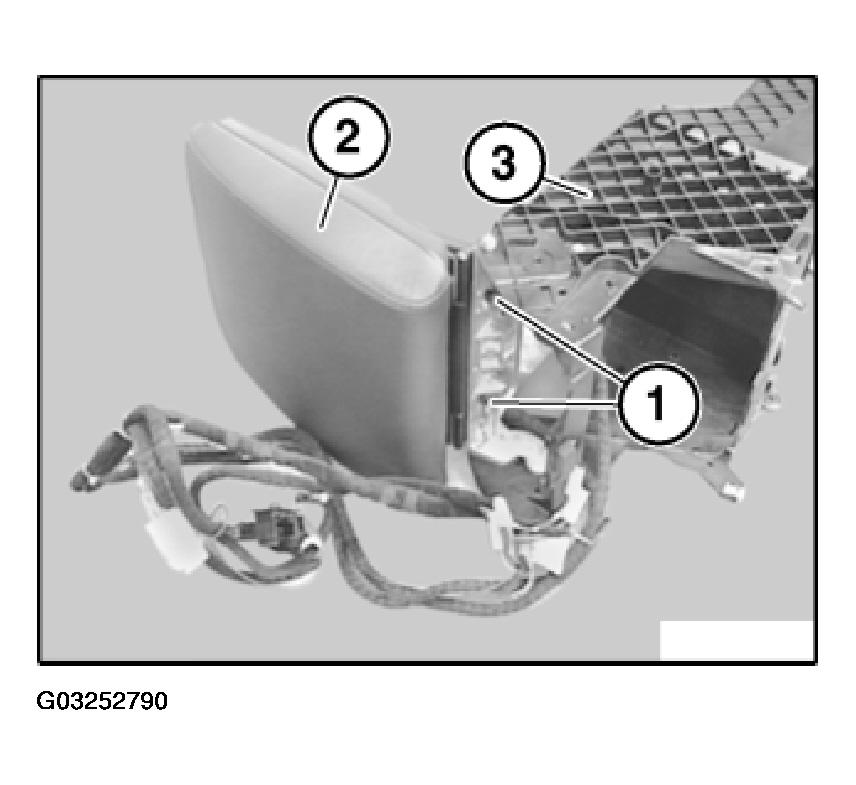

Release screws (1) and remove armrest (2) from center console (3).

Fig 7: Releasing Screws And Removing Armrest From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

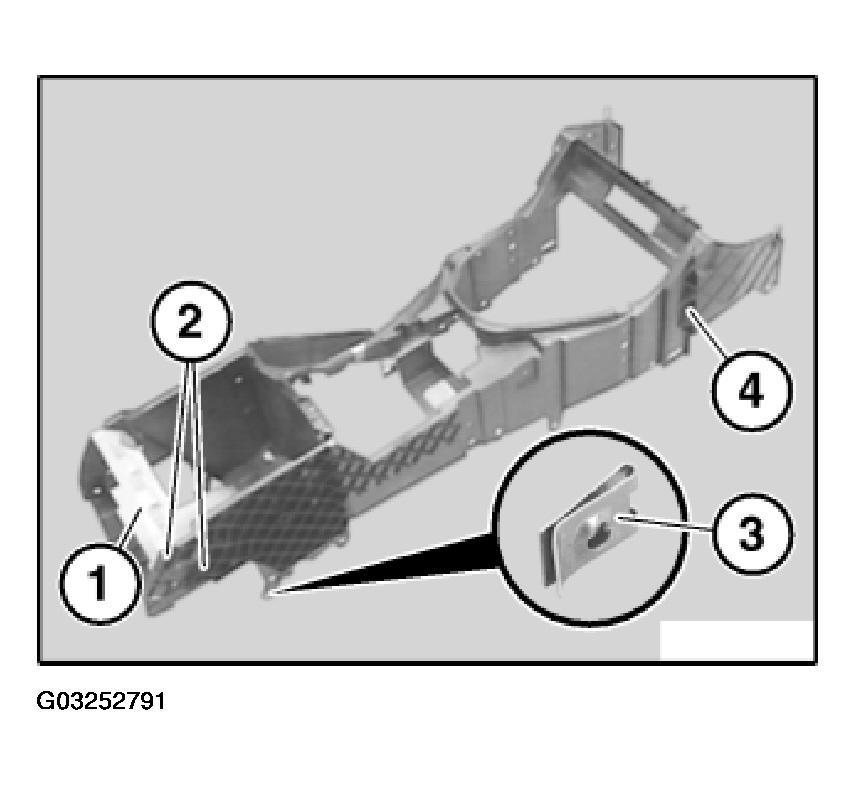

Release screws (2) and remove frame (1).

Remove left/right metal nuts (3) from center console (4).

Fig 8: Removing Left/Right Metal Nuts From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
