51 16 204 Removing and installing/replacing rear cup holder

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release center console at rear:

Remove fresh air grill in footwell.

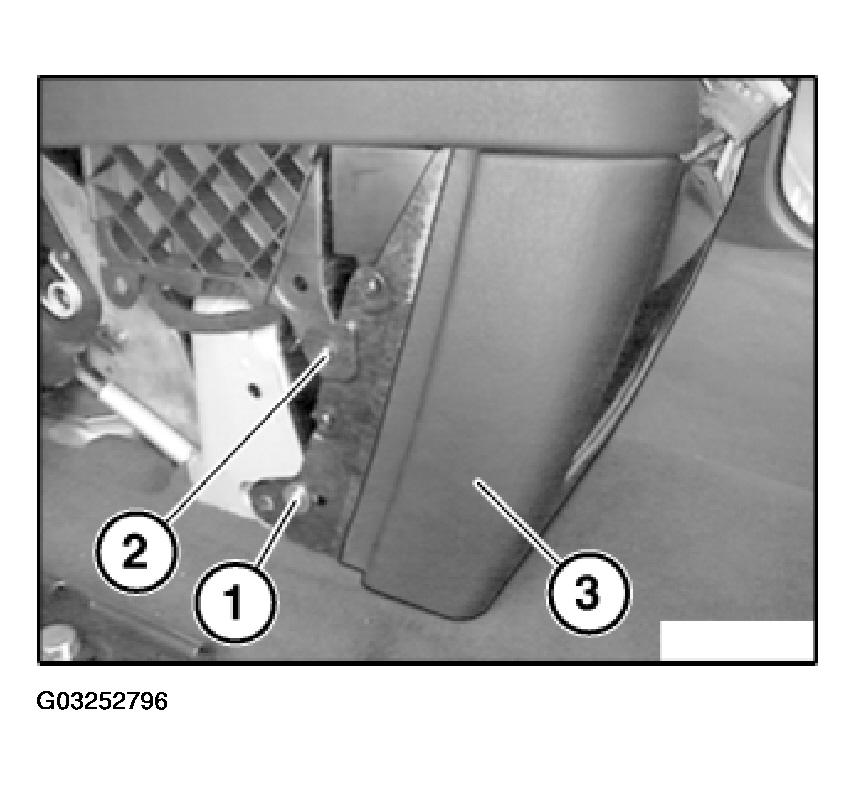

Remove air duct (2).

Installation:

Prior to tightening down all screws, fit air duct (2) correctly.

Fig 1: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

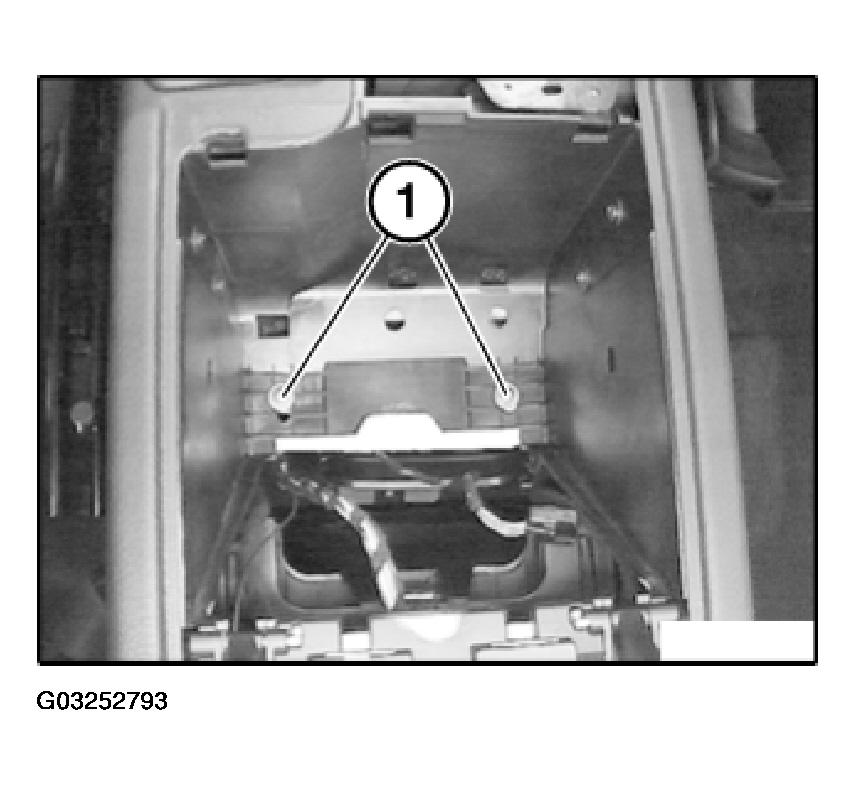

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

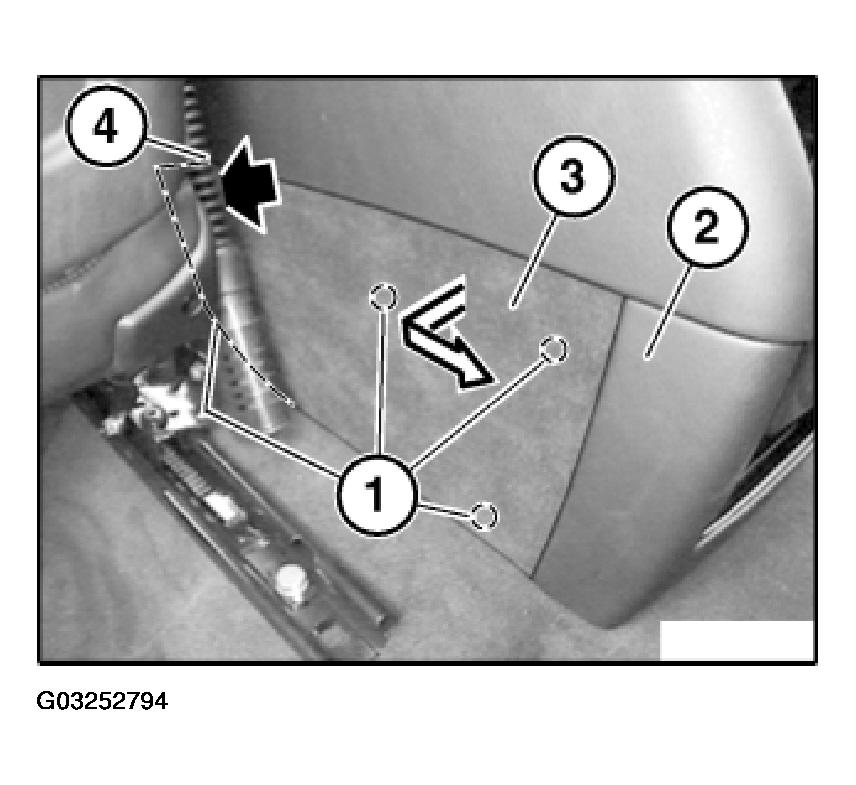

CAUTION: Last clip on front carpet (4) must be unclipped (risk of damage).

Unclip clips (1) on left/right with carpet (3) outwards from center console (2).

Pull out carpet (3) towards rear.

Fig 3: Pulling Out Carpet Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

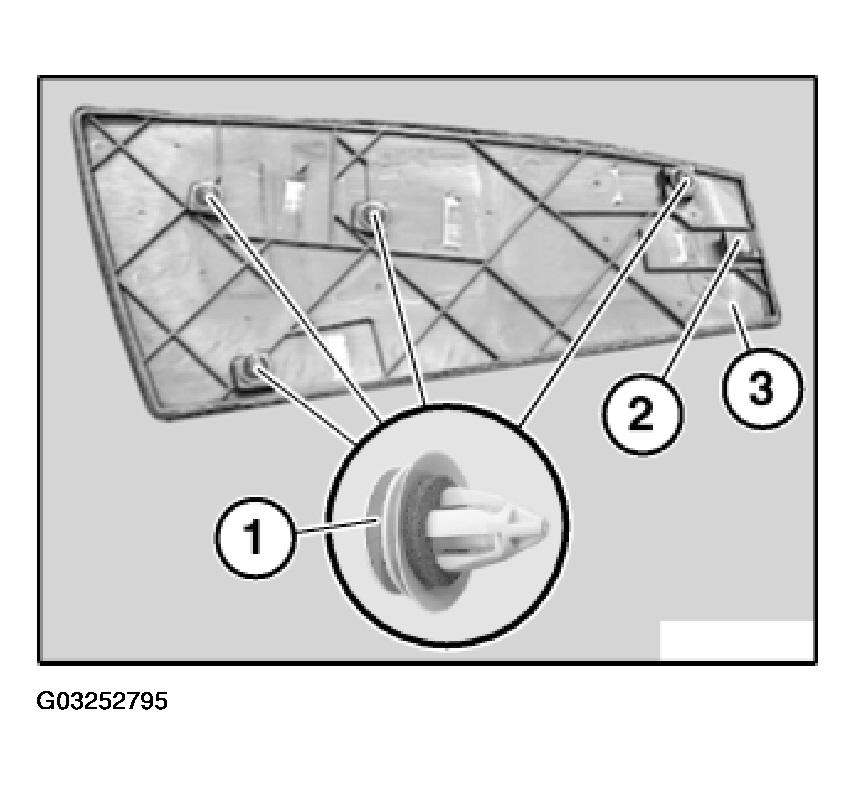

If necessary, replace faulty clips (1) with sealing washer and retainer (2) on carpet (3).

Fig 4: Checking Faulty Clips With Sealing Washer And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screw (2) is only released for removal of cup holder (3).

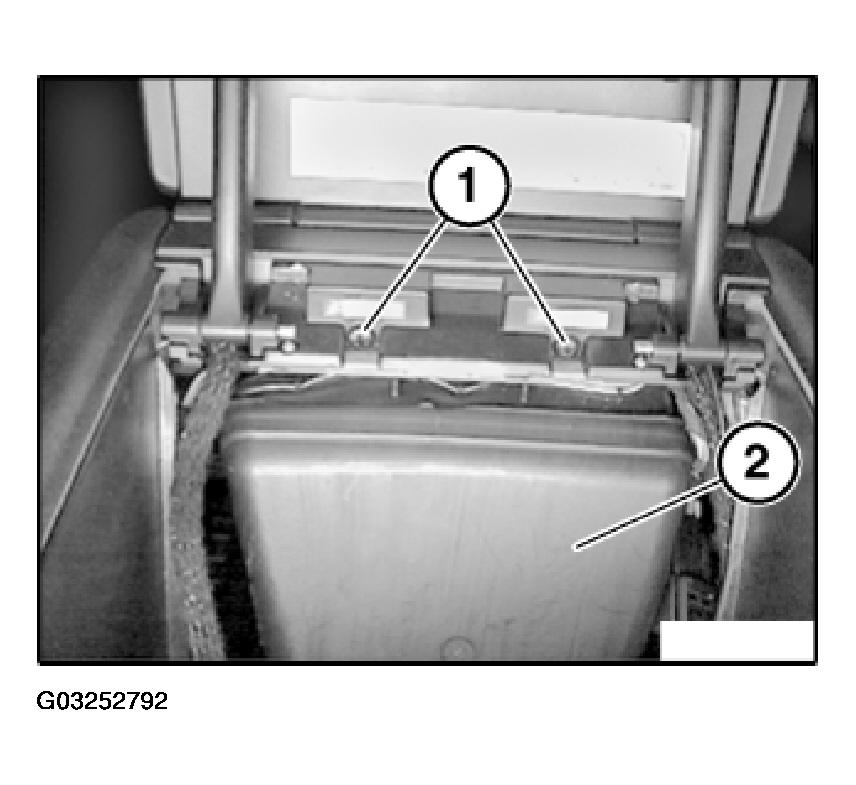

Unfasten screws (1) and (2) left/right.

Fig 5: Unfastening Screws (1) And (2) Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Releasing center console at rear" ends here.

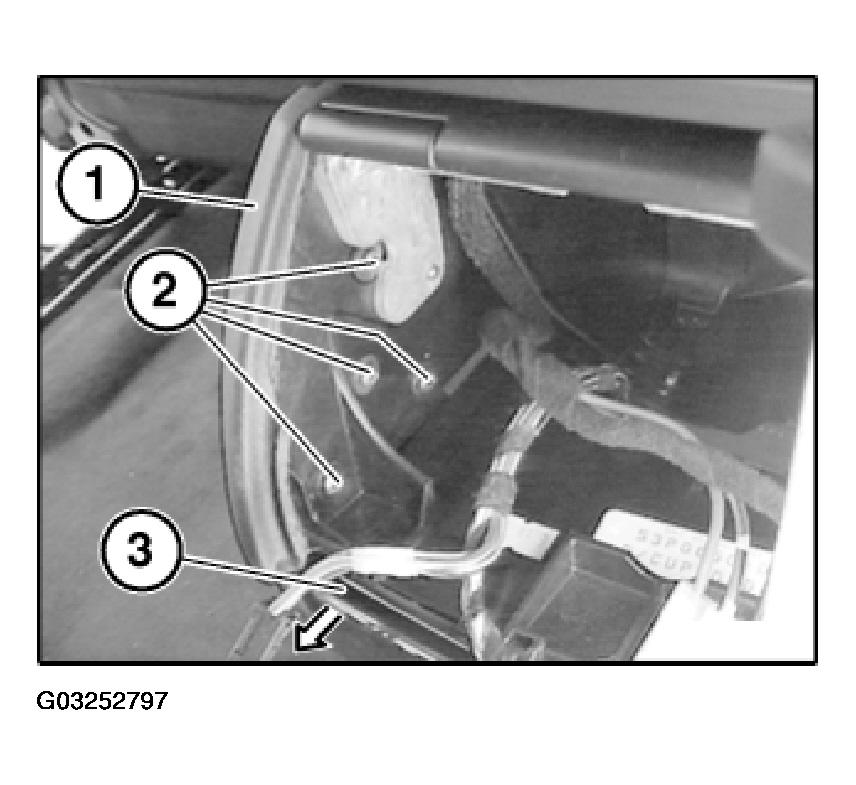

Release left/right screws (2).

Pull left/right side sections (1) apart and pull out center console (rear) with cup holder (3).

Fig 6: Releasing Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

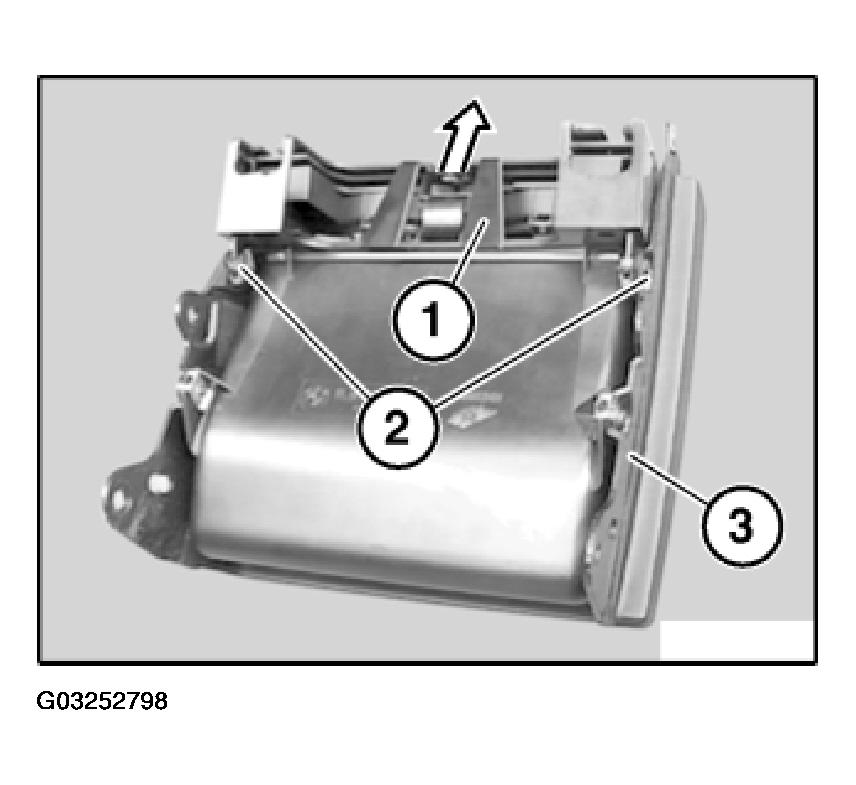

Release screws (2).

Detach cup holder (1) from carrier (3).

Fig 7: Detaching Cup Holder From Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Open cup holder.

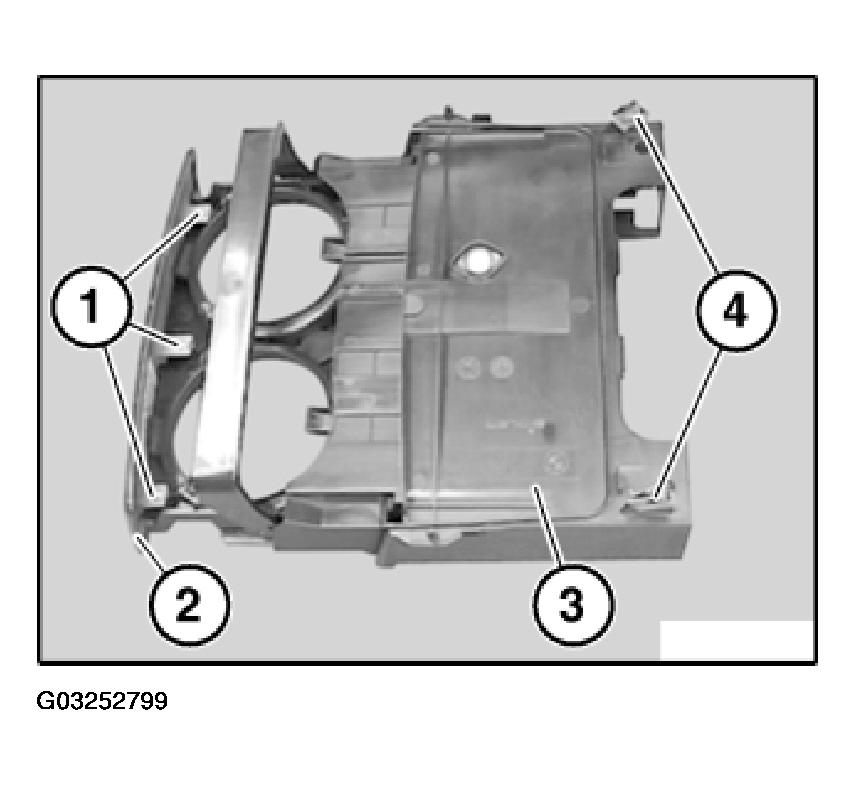

Release screws (1) and detach molding (2).

Detach metal nuts (4) from cup holder (3).

Fig 8: Detaching Metal Nuts From Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
