51 71 415 Removing and installing rear spoiler lower section
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear spoiler. See 51 71 412 Removing And Installing Rear Spoiler .
- Disconnect plug connection for antenna (AM pickup)

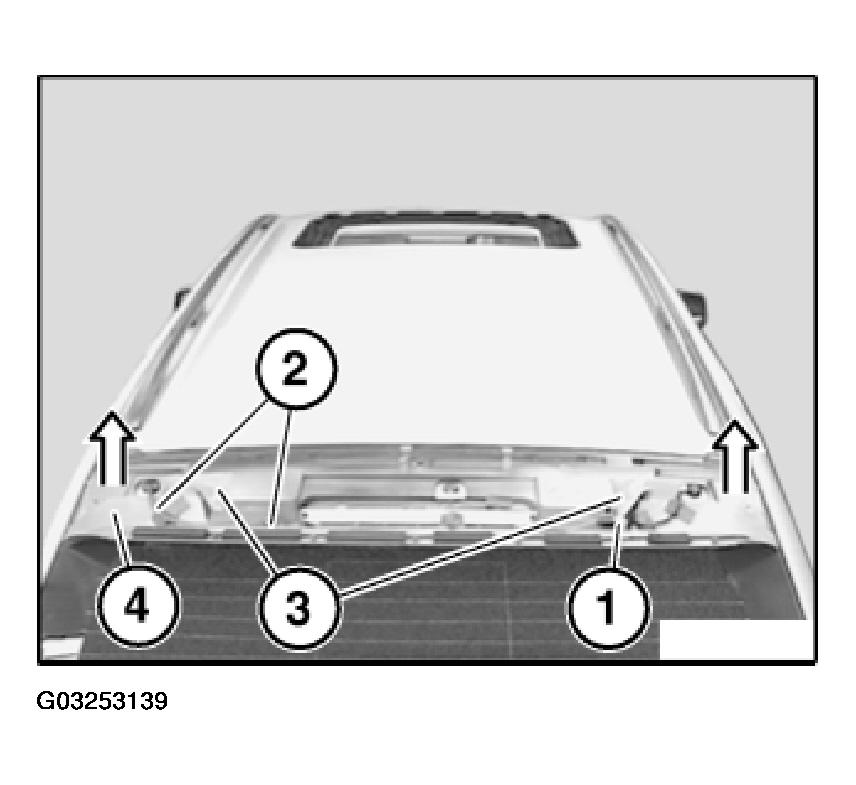

Disconnect plug connection (1) for auxiliary brake light and expose lead.
Detach water hose (2) from jet nozzle and expose.
Release nuts (3) and remove rear spoiler lower section (4).
Installation:
Fit attachment parts.
Tightening torque, see 51 71 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
