51 71 412 Removing and installing rear spoiler

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out covers (1) on left/right and release screw underneath.

Release screws (2) on left/right and screw (3).

Remove rear spoiler and set down on a clean surface.

Installation:

If necessary, make a note of number of shims on screws (2) and (3) and refit them during installation at same position.

Tighten screw (3) first.

Tightening torque, see 51 71 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

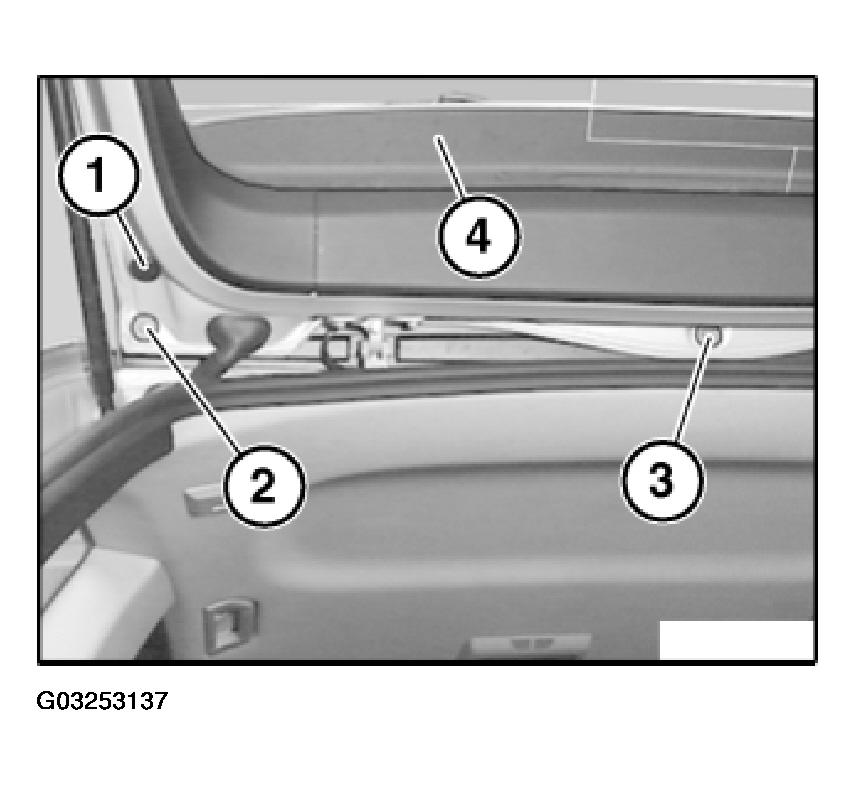

Fig 1: Releasing Screws On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) on rear spoiler (3) must not be damaged.

If necessary, replace faulty tapes (2) (dual-lock tape).

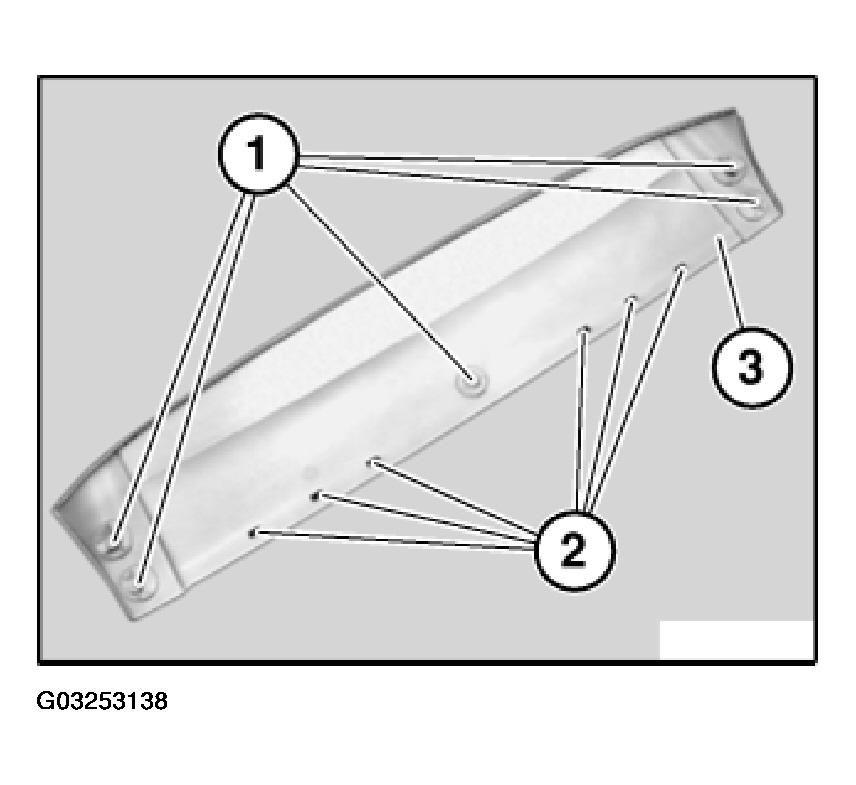

Fig 2: Checking Threads On Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
