51 45 031 Replacing instrument panel trim

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel. See 51 45 030 Removing And Installing Instrument Panel Trim .

Remove speakers (in instrument panel) on left and right. See 65 13 050 REMOVING AND INSTALLING/REPLACING SPEAKERS .

Remove decorative strip next to light switch and radio. See 51 16 221 Replacing A Clipped Finisher (Decorative Strip On Panel For Instrument Panel, Front Or Rear Door) .

Remove right fresh air nozzle. See 64 22 136 REMOVING AND INSTALLING/REPLACING RIGHT FRESH AIR GRILLE .

Release screws (1) and remove frame (2) for passenger airbag.

Fig 1: Removing Frame For Passenger Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) and remove cover (2) for steering column.

Fig 2: Removing Cover For Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

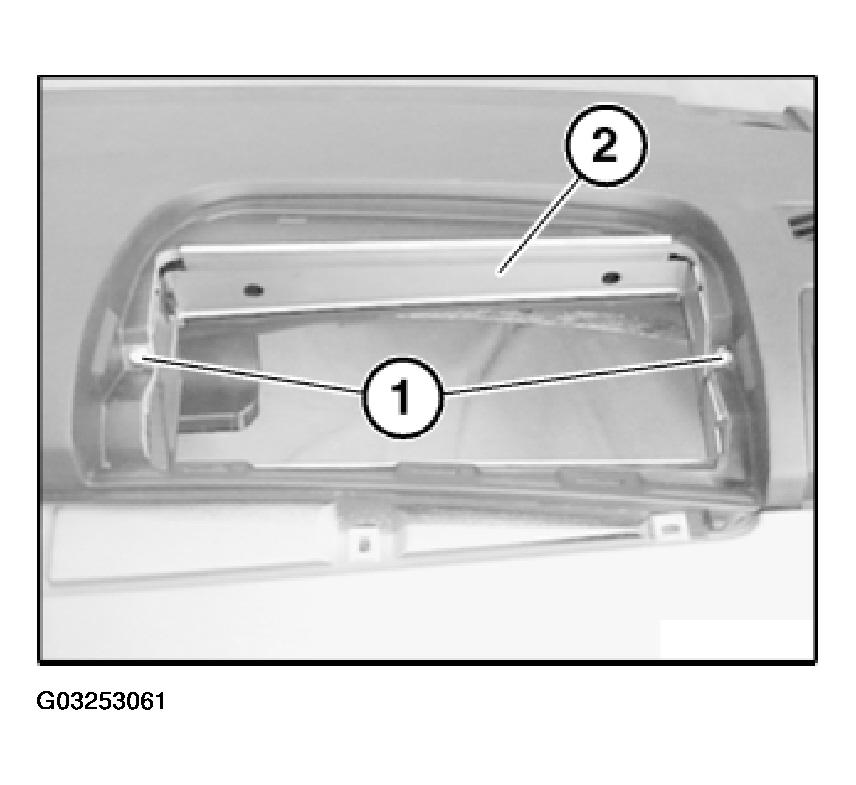

Release screws (1) from below.

Release screws (2) from above and remove frame (3) for heating controls.

Fig 3: Removing Frame For Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

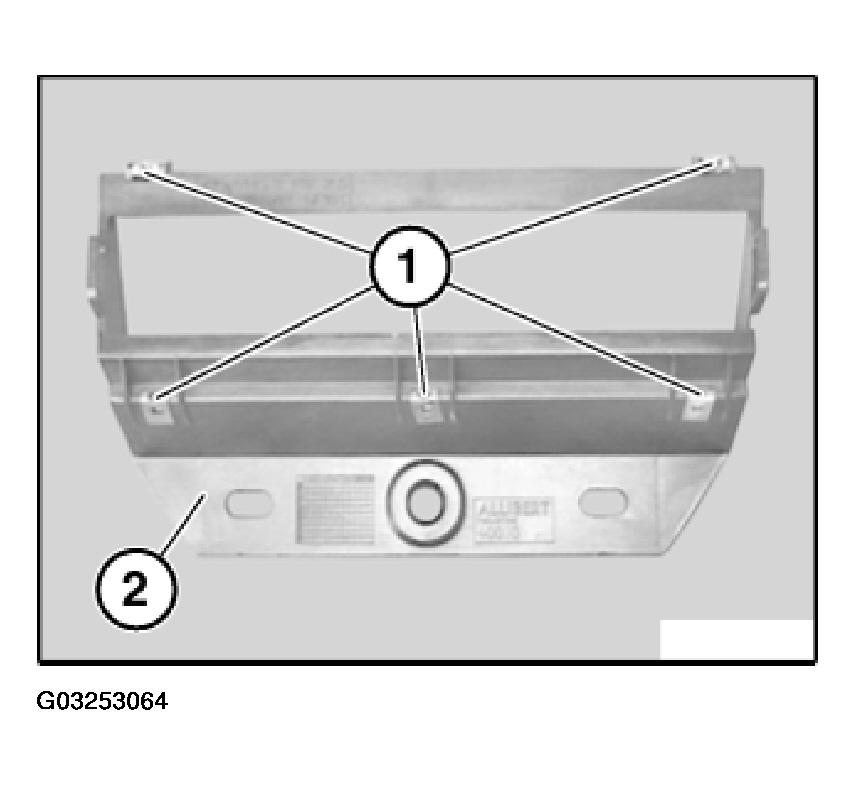

If necessary, replace faulty metal nuts (1) on frame (2) for heating controls.

Fig 4: Checking Metal Nuts On Frame For Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

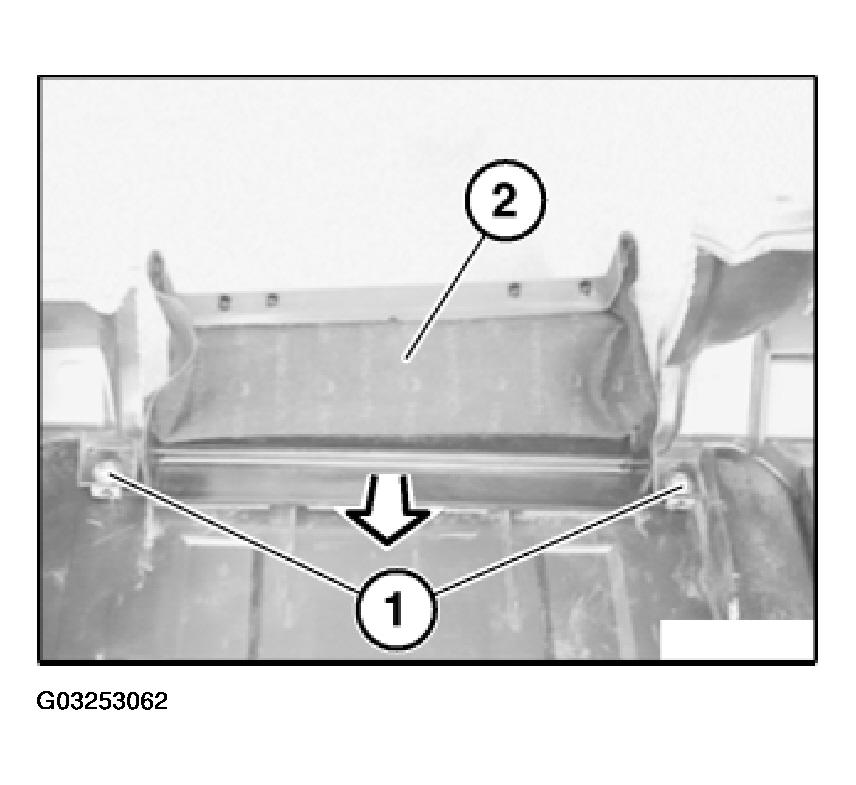

Detach anti-drumming coating (1) until air ducts can be removed at side.

Installation:

Foam strip (2) must be correctly fitted.

Fig 5: Inspecting Foam Strip Must Be Correctly Fitted

Courtesy of BMW OF NORTH AMERICA, INC.

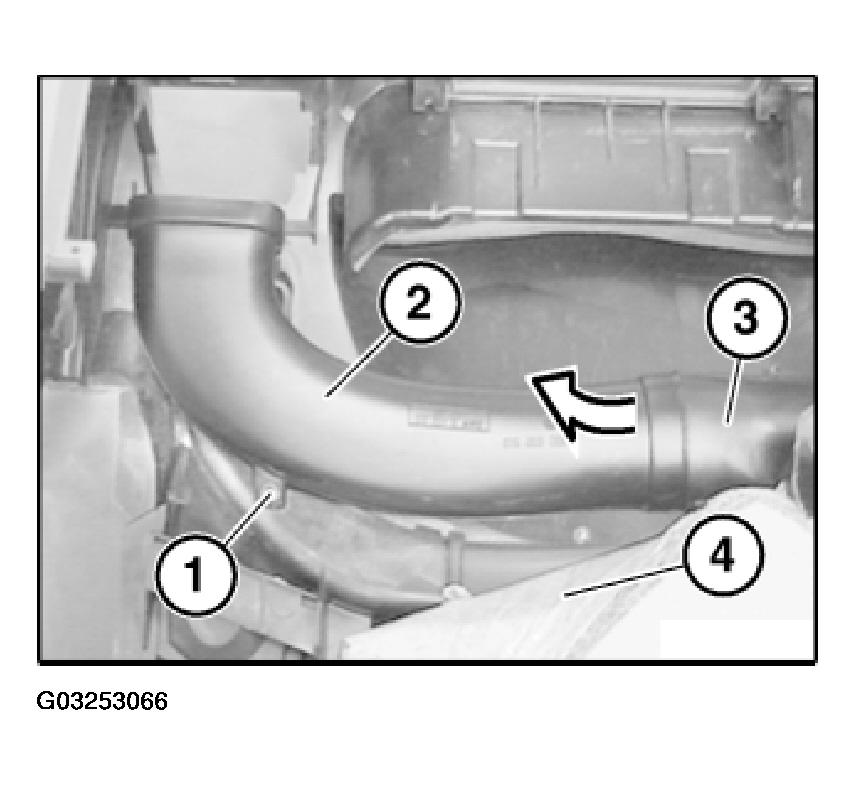

Release left/right screws (1).

Detach air duct (2) on left/right from center air duct (3).

Installation:

Re-attach anti-drumming coating (4) to air duct (2).

Fig 6: Releasing Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

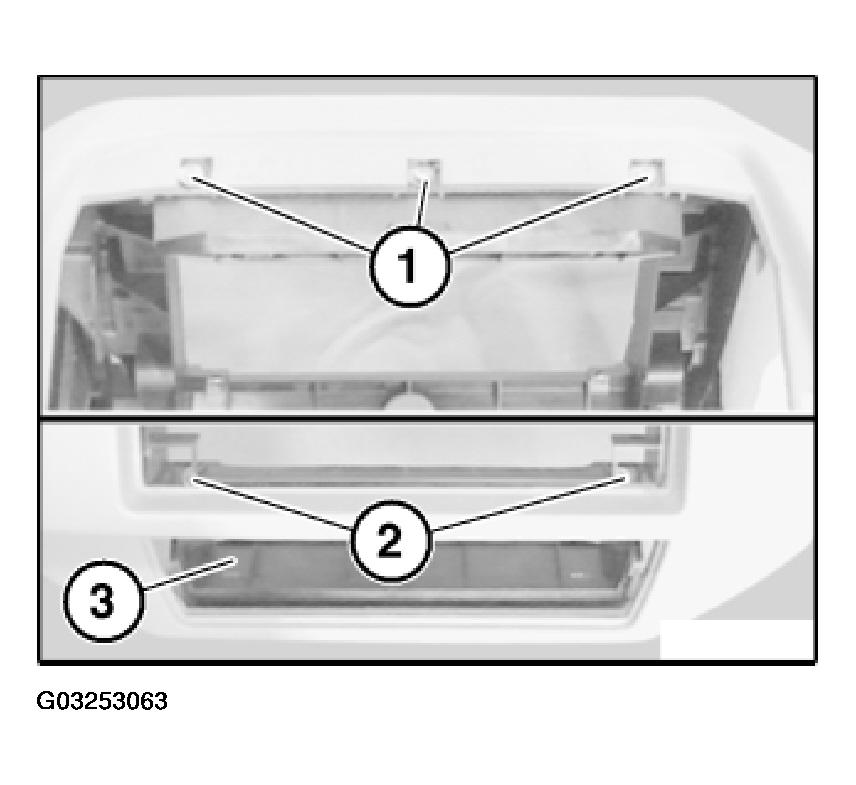

Remove metal nuts (1).

Installation:

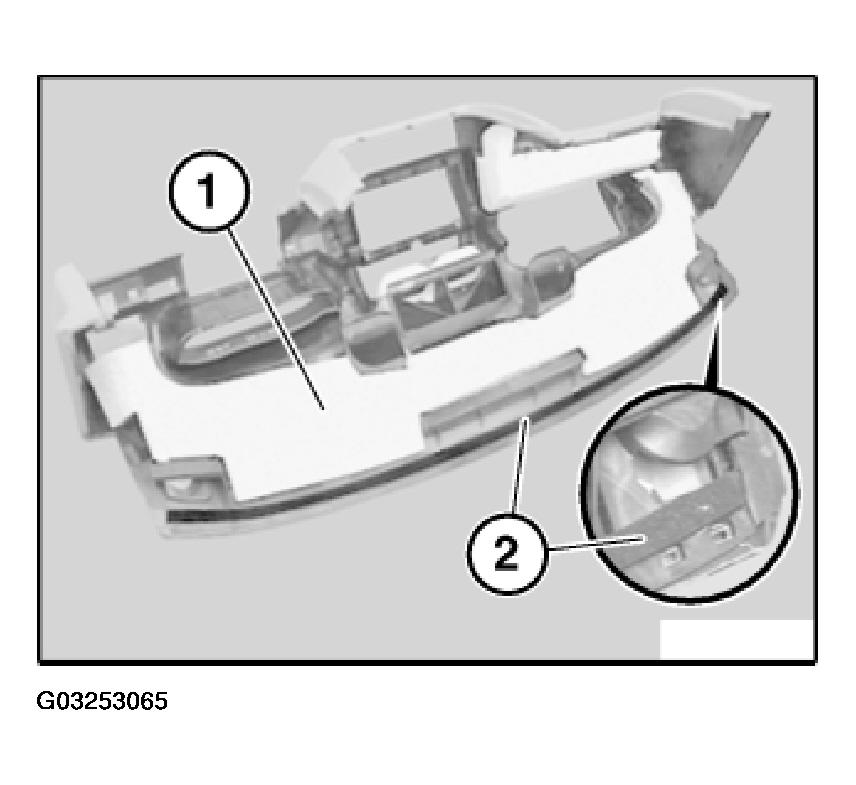

Styrofoam block (2) must be correctly fitted.

Fig 7: Removing Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

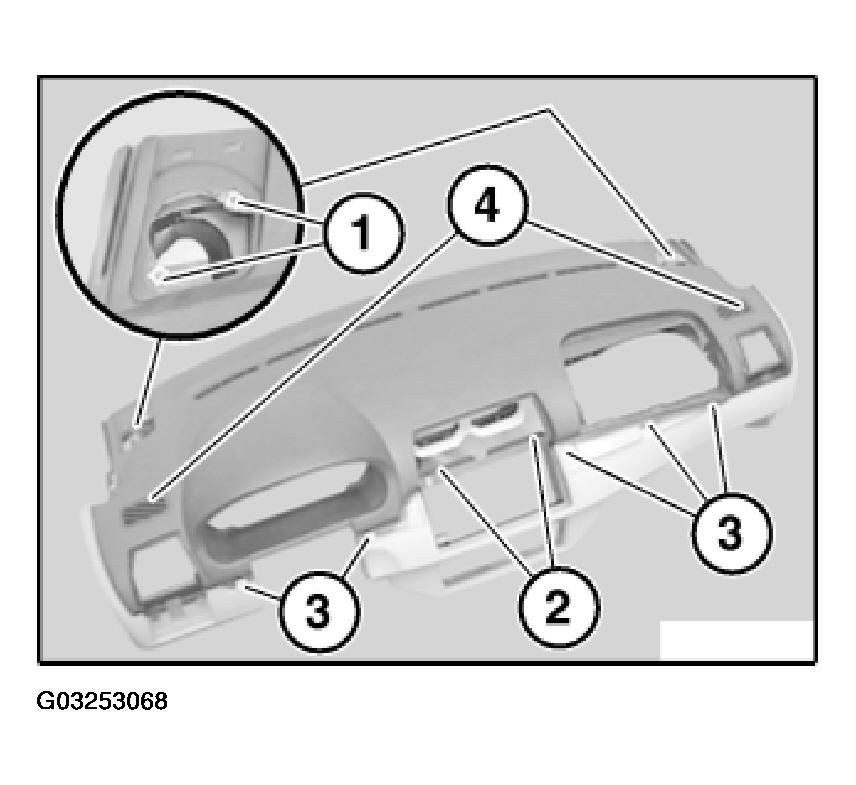

Remove metal nuts (1) for left/right speakers.

Remove fasteners (3) for decorative strips.

Unclip fresh-air grill (4) on left/right.

Fig 8: Removing Metal Nuts For Left/Right Speakers
