65 13 050 Removing and installing/replacing speaker (in instrument panel, left or right)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, illustration shows component removed.

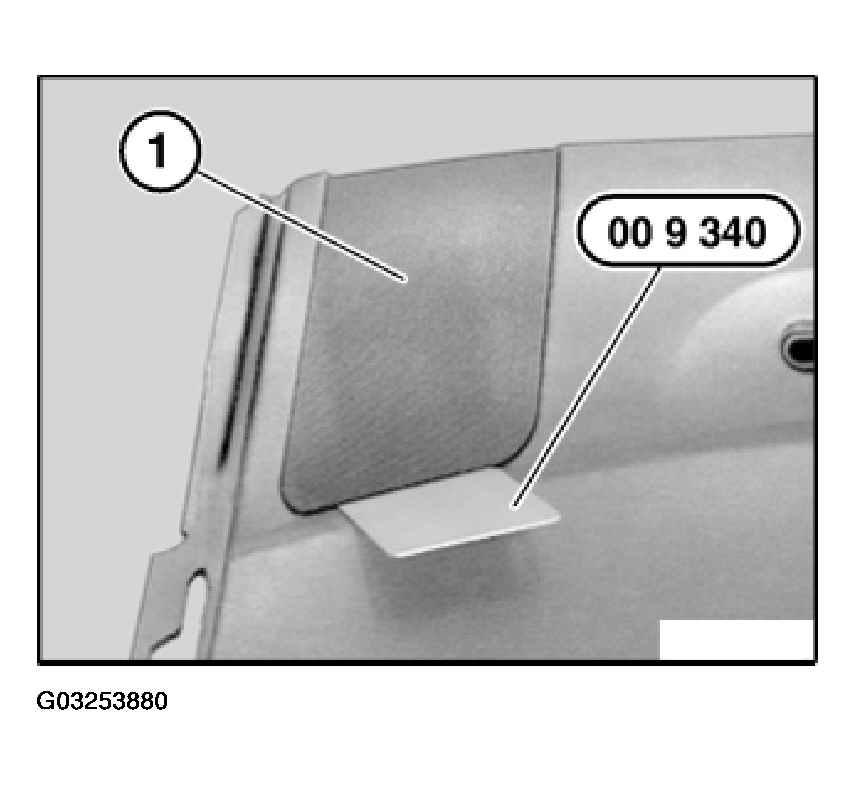

Lever out trim (1) with special tool 00 9 340.

Fig 1: Removing Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

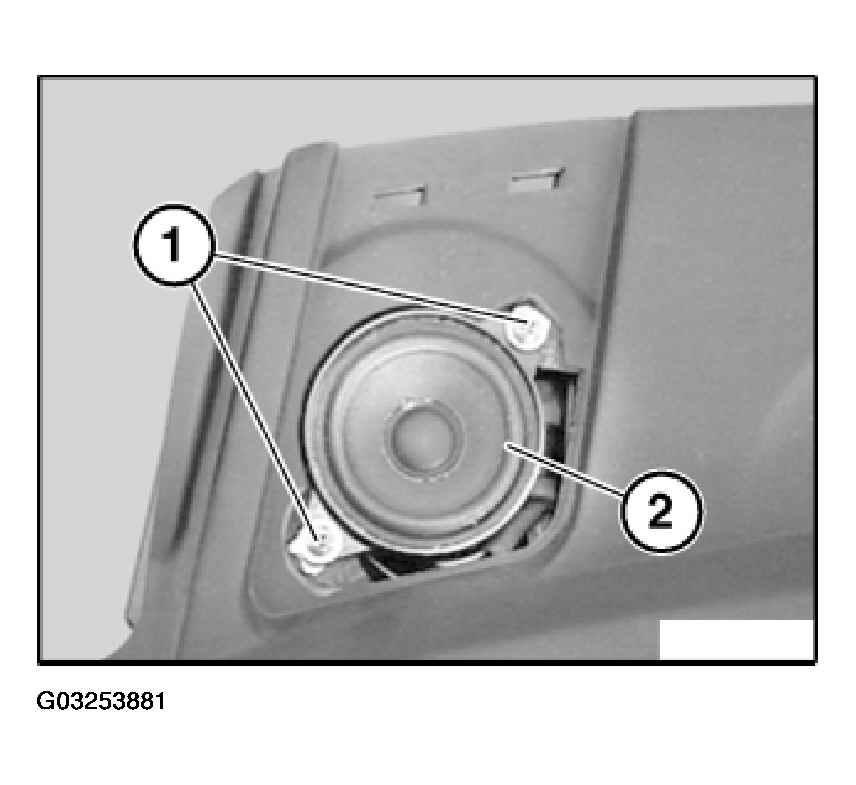

Release screws (1) and remove speaker (2).

Fig 2: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.
