12 41 041 Replacing solenoid switch

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove starter motor.

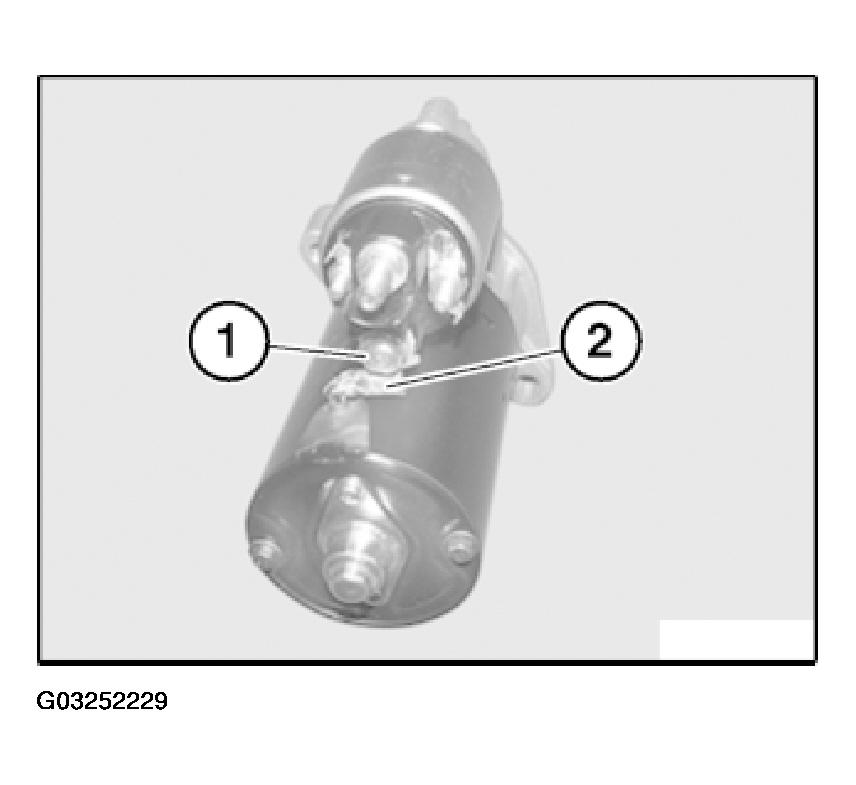

Release nut (1).

Remove cable lug (2).

Fig 1: Removing Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing.

Tightening torque, see 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

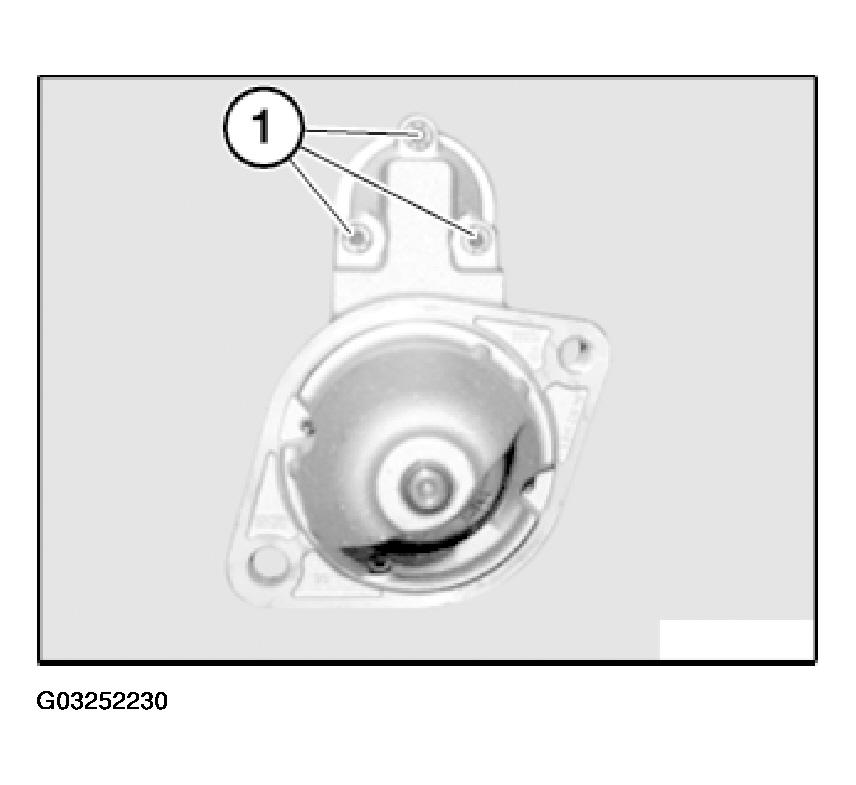

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

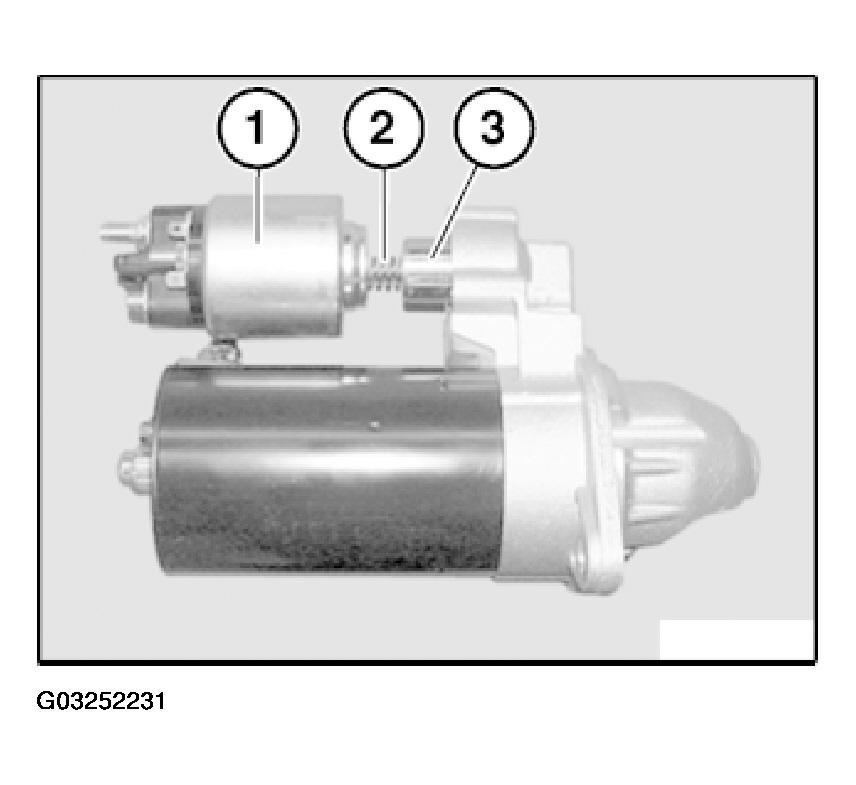

Remove solenoid switch (1) and spring (2).

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.

Fig 3: Removing Solenoid Switch And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
