12 41 020 Removing and installing/replacing starter motor (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

NOTE: Follow instructions for disconnecting and connecting battery, refer to General Information MG 12.

Disconnect battery negative lead from battery.

Remove reinforcement plate. Refer to FRONT AXLE SUPPORT .

Remove protective cap (1) of battery positive lead from starter motor.

Release nut (2).

Tightening torque, see 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Disconnect battery positive lead (3) from starter motor.

Unclip battery positive lead from holders.

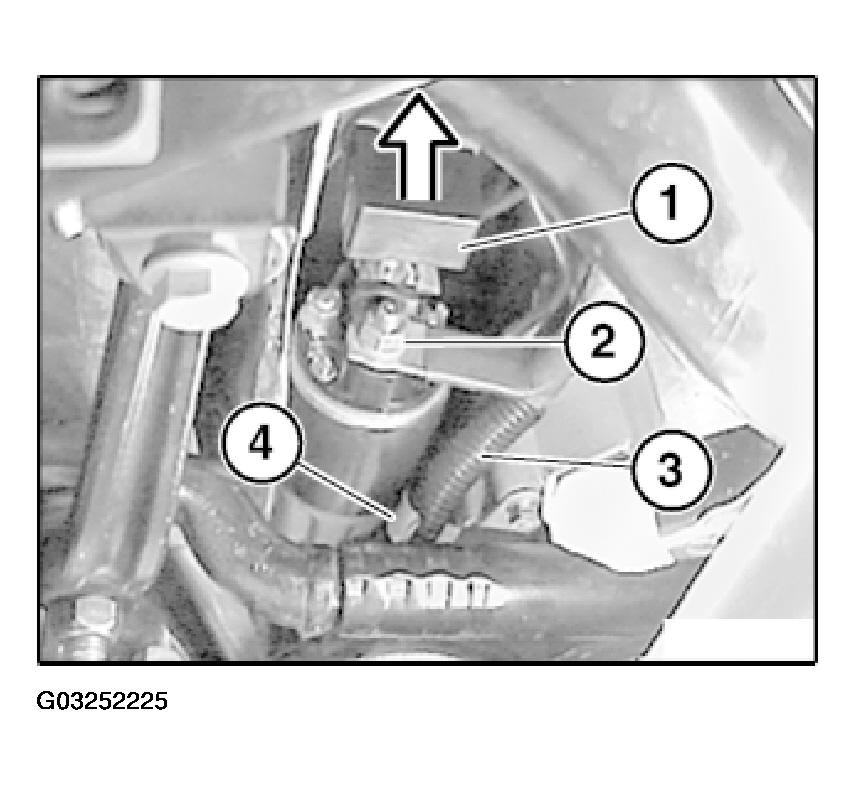

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1).

Tightening torque, see 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

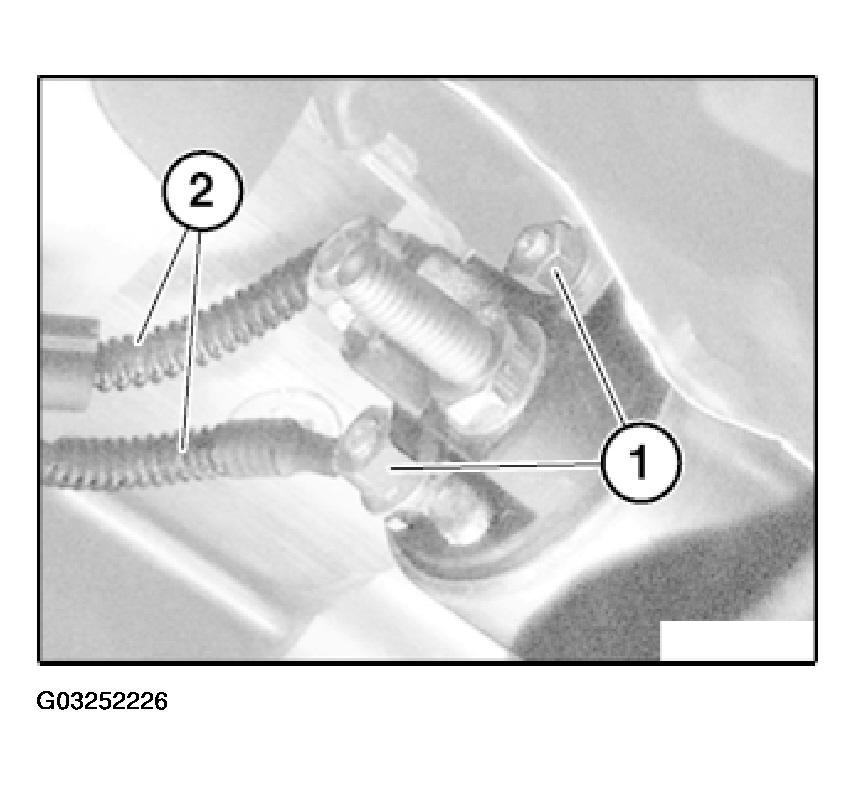

Detach leads (2) from starter motor.

Fig 2: Detaching Leads From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque, see 12 41 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

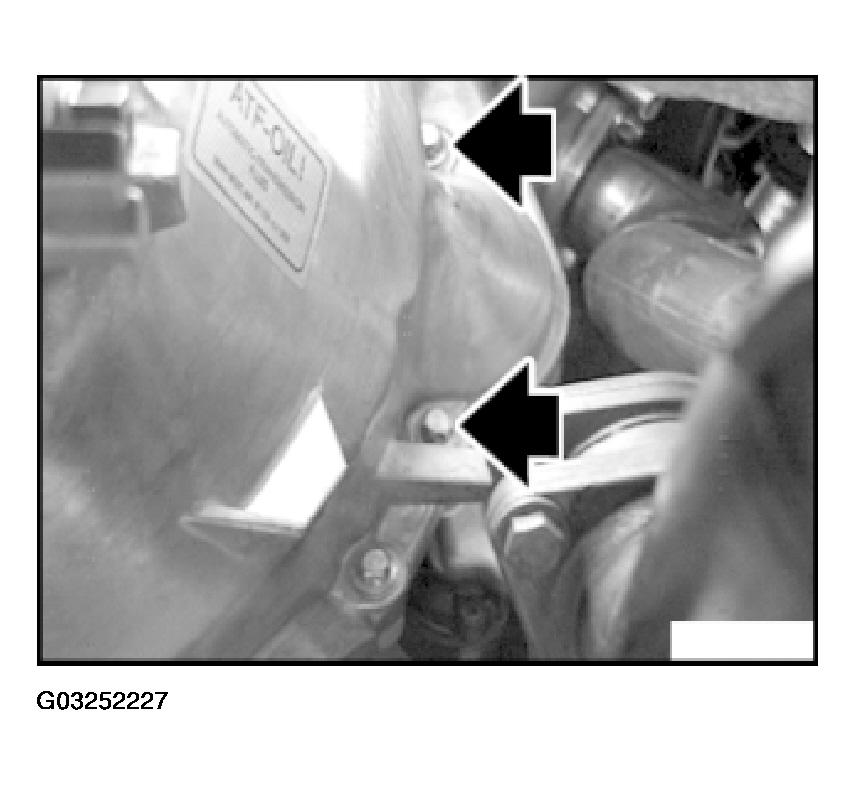

Fig 3: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull starter motor out of transmission mount and remove.

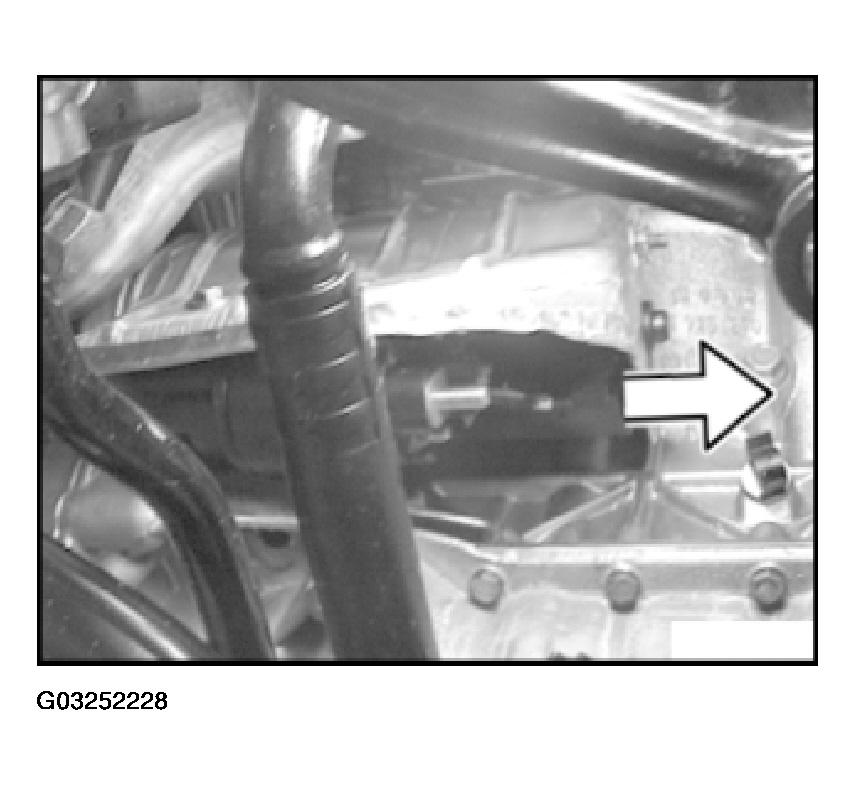

Fig 4: Pulling Starter Motor Out Of Transmission Mount

Courtesy of BMW OF NORTH AMERICA, INC.
