12 42 540 Replacing safety battery terminal (SBK): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

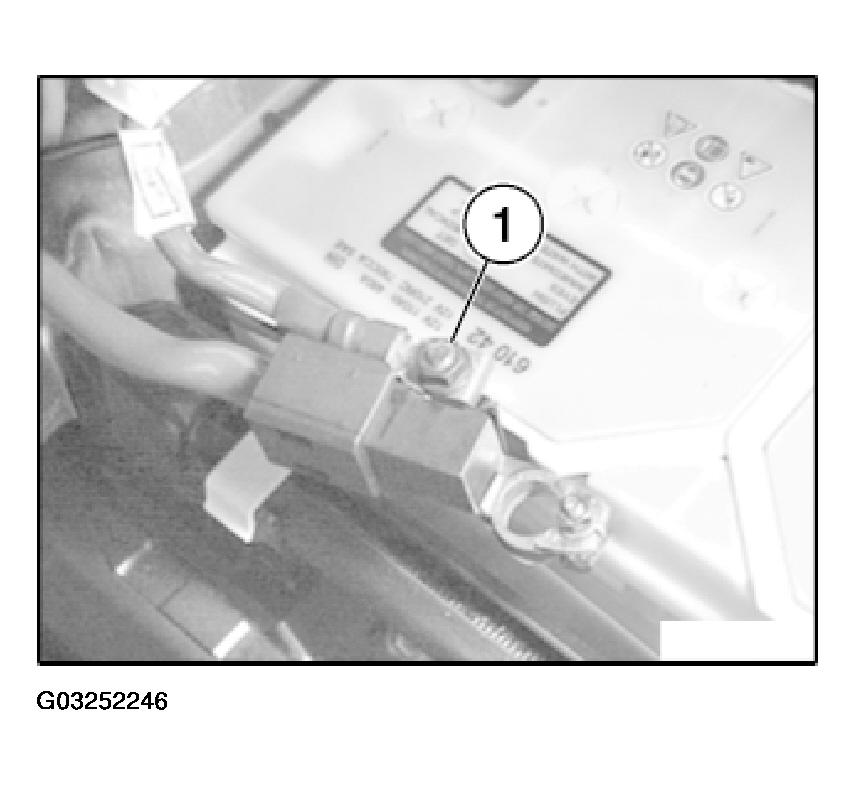

Remove faulty fuses and carry out troubleshooting.

Fig 1: Removing Faulty Fuses And Carrying Out Troubleshooting

G03252246

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Pay attention to interface.
The repair cable is always a standard length.
The heavy-current connector of the repair cable has a larger diameter than the battery positive lead.

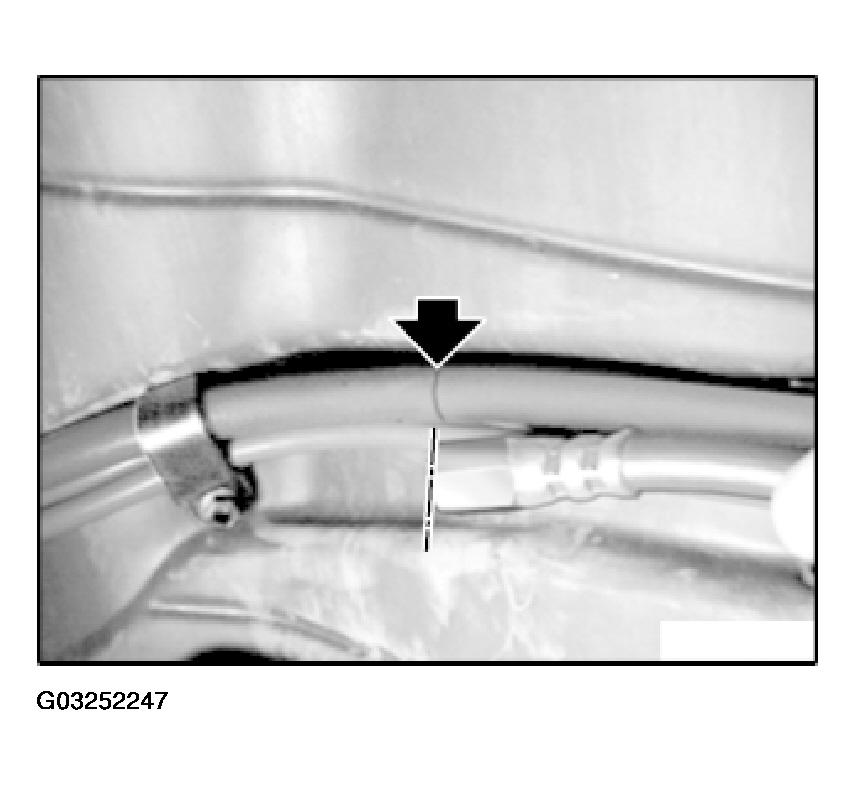

Lay repair cable parallel to battery positive lead.

Mark interface of battery positive lead at end of repair cable.

Fig 2: Laying Repair Cable Parallel To Battery Positive Lead

G03252247

Courtesy of BMW OF NORTH AMERICA, INC.

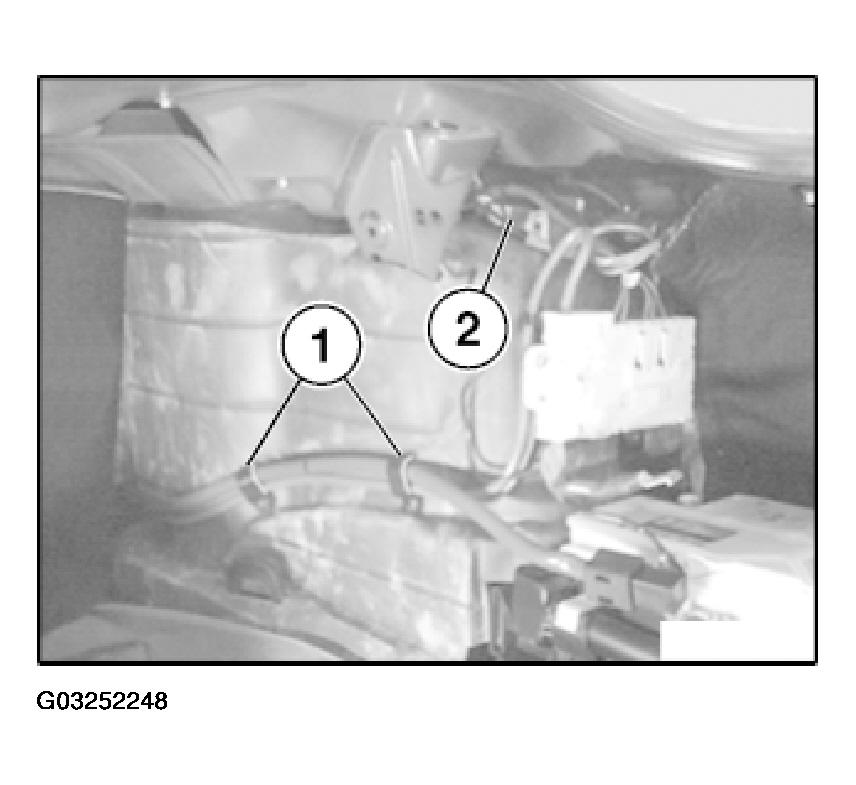

Release cable ties (1).

Disconnect plug connection (2).

Fig 3: Releasing Cable Ties

G03252248

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not use bolt cutters or similar tools to cut through the cable.

A cable end that has been squashed flat will no longer fit into the clamping sleeve.

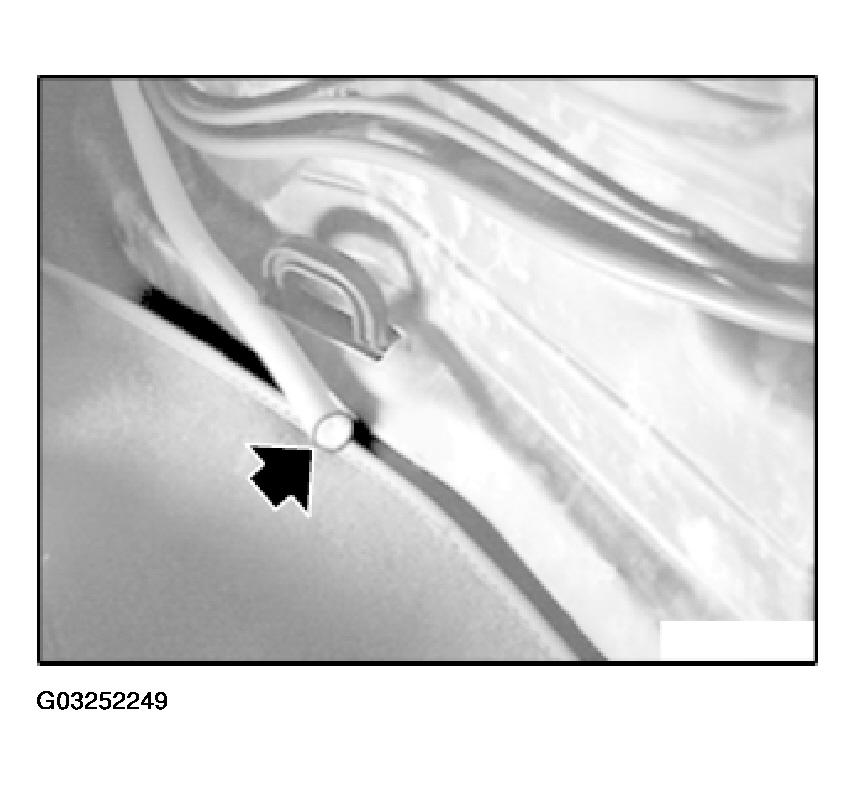

Saw through battery positive cable at marked point with an iron saw.

Fig 4: Identifying Pipe

G03252249

Courtesy of BMW OF NORTH AMERICA, INC.

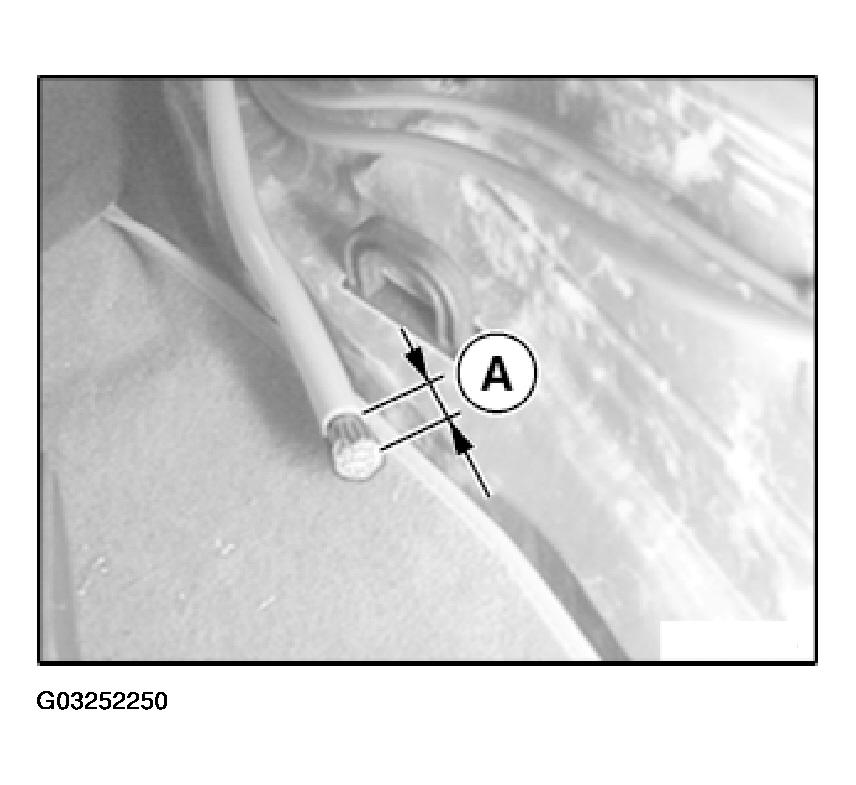

Strip insulation - length (A) - from cable end.

Distance (A) = 15 mm.

Fig 5: Measuring Distance Of Pipe

G03252250

Courtesy of BMW OF NORTH AMERICA, INC.

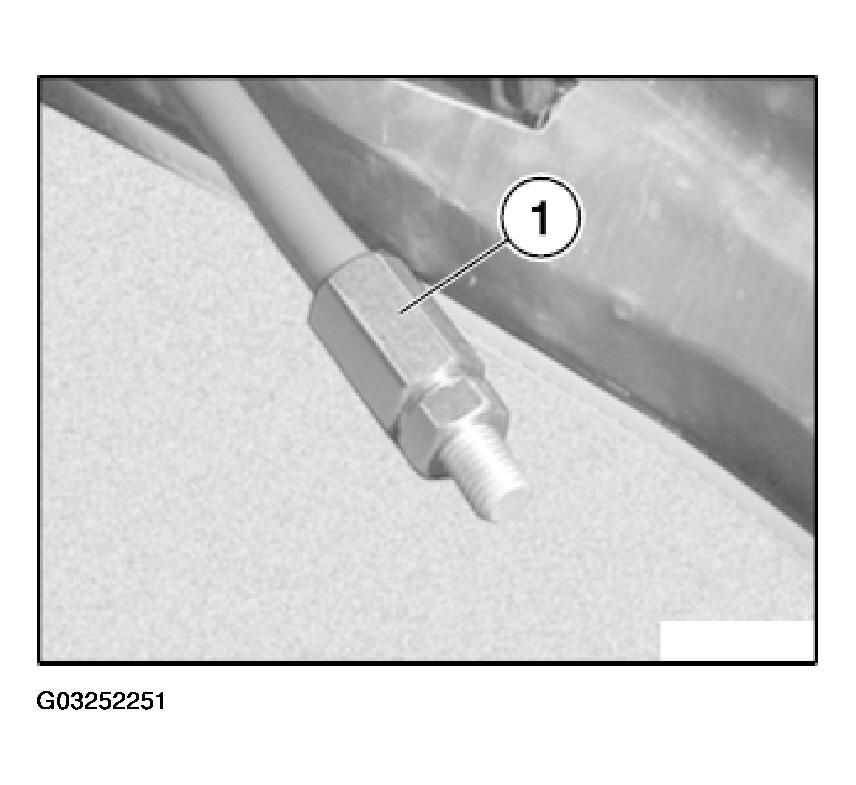

Push heavy-current connector (1) over stripped cable end and screw into position.

Fig 6: Pushing Heavy-Current Connector Over Stripped Cable End And Screw Into Position

G03252251

Courtesy of BMW OF NORTH AMERICA, INC.

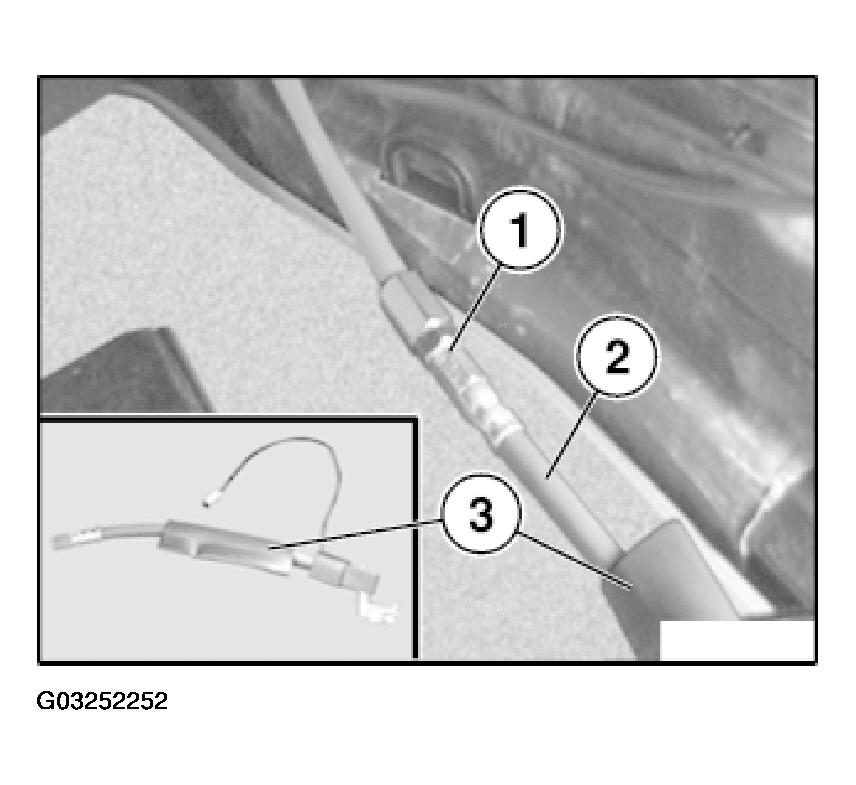

Push shrink-fit hose (3) over repair cable.

Screw threaded sleeve (1) of repair cable (2) to heavy-current connector.

Fig 7: Screwing Threaded Sleeve Of Repair Cable To Heavy-Current Connector

G03252252

Courtesy of BMW OF NORTH AMERICA, INC.

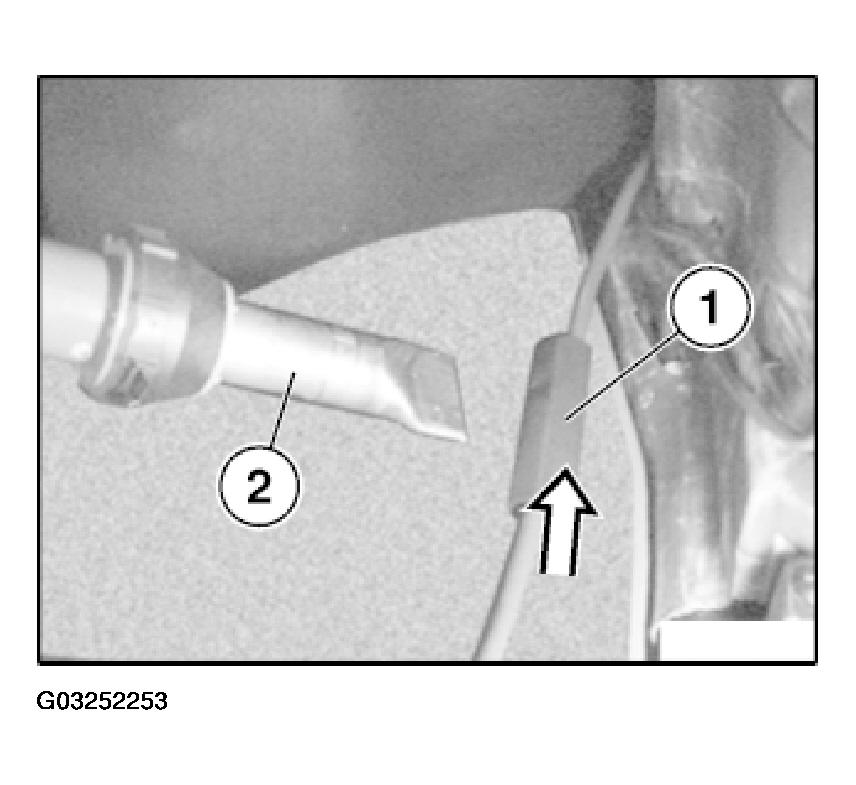

Push shrink-fit hose (1) over connecting point and shrink on with a hot-air blower (2).

Fig 8: Pushing Shrink-Fit Hose

G03252253

Courtesy of BMW OF NORTH AMERICA, INC.

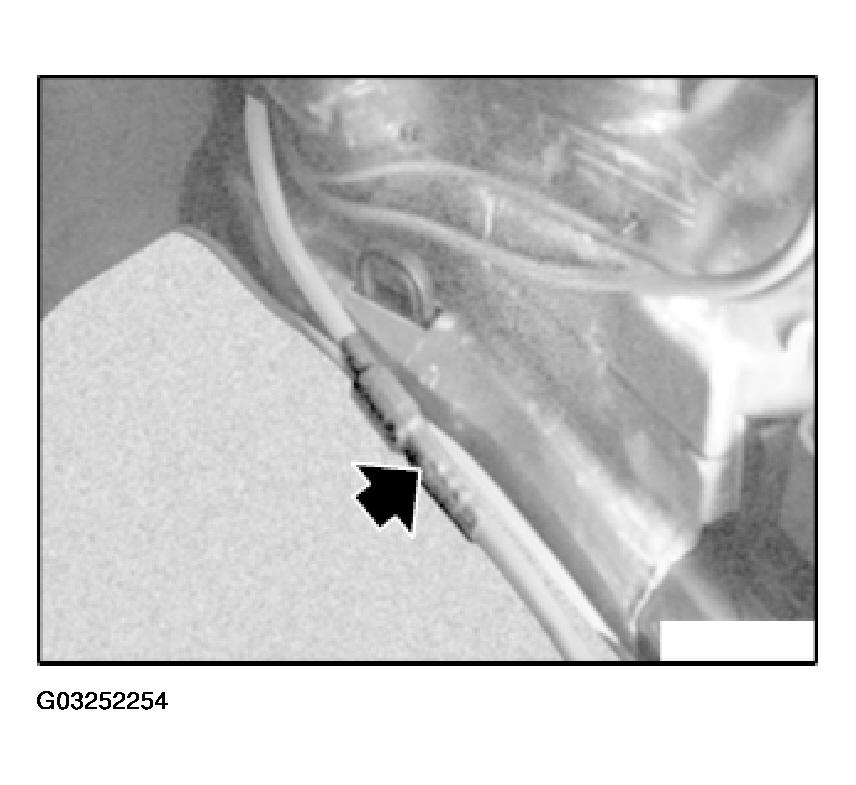

NOTE: Heat up shrink-fit hose until it has settled completely around the connection point.

Fig 9: Heating Up Shrink-Fit Hose

G03252254

Courtesy of BMW OF NORTH AMERICA, INC.

When laying the repaired battery positive cable, observe the following:

The shrink-fit hose must not be scuffed during any movement.
The repair cable must not cause any disturbing noises during driving operation.

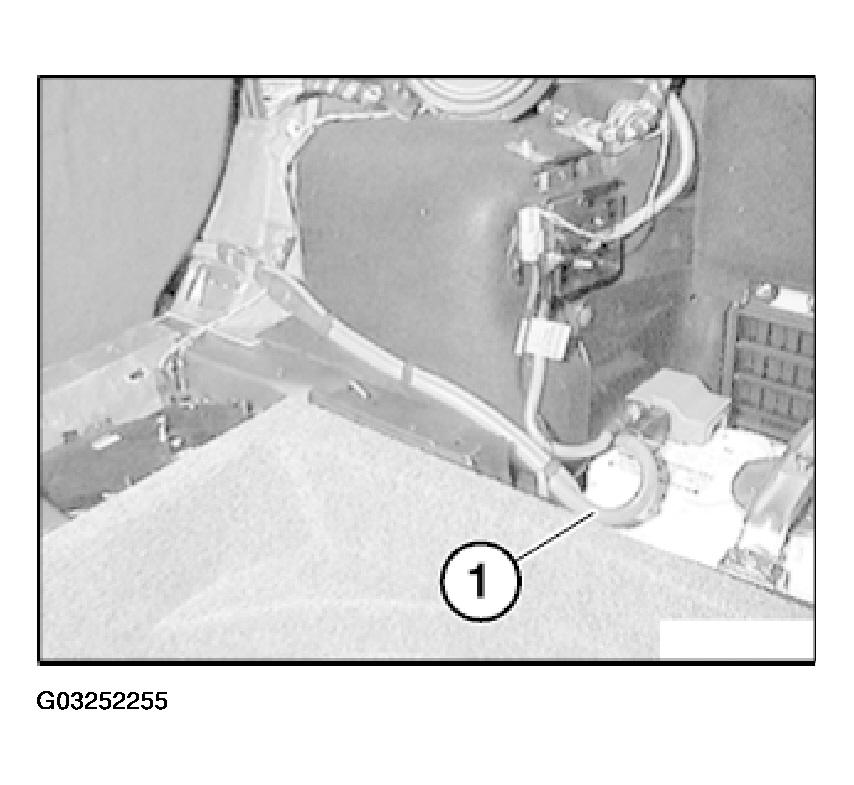

NOTE: Offsetting cutting line by approx. 10 cm produces excess length of battery positive lead (1).

Lay battery positive lead (1) without kinks or abrasions.

(Shown on E46 touring.)

Fig 10: Identifying Offsetting Cutting Line
Courtesy of BMW OF NORTH AMERICA, INC.
