Battery In Luggage Compartment Under Floor Trim Panel
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Follow instructions for disconnecting and connecting battery.

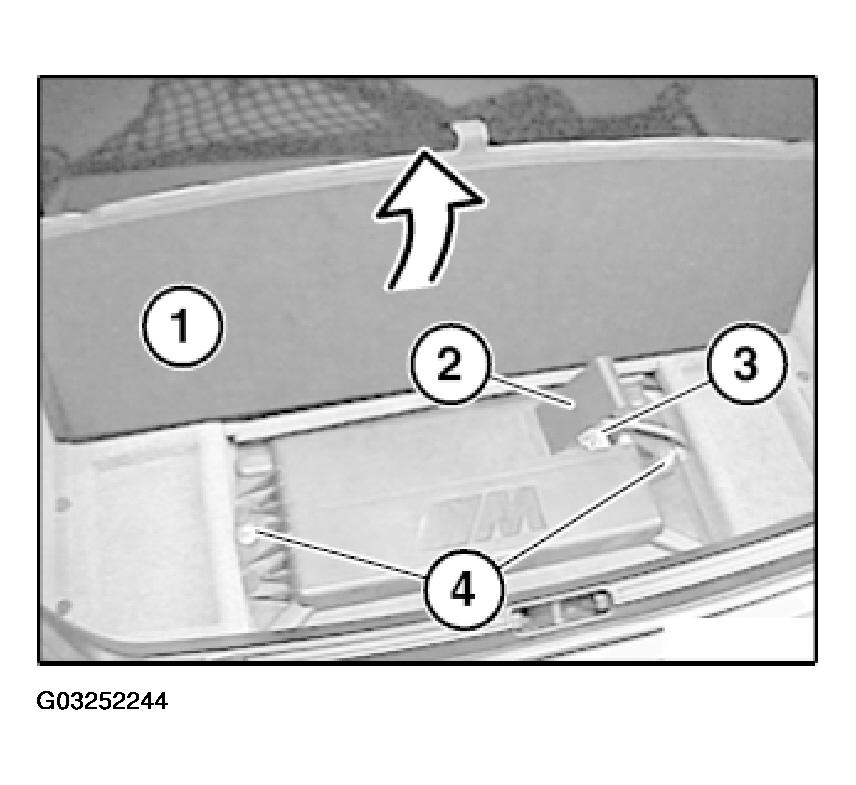

Fold back floor trim panel (1).
Lift cover (2) on battery negative lead.
Disconnect and cover battery negative lead (3).
Release nuts (4).
Remove battery cover.
