Battery In Luggage Compartment Behind Side Trim Panel

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove side trim panel.

Follow instructions for disconnecting and connecting battery.

Disconnect and cover battery negative lead.

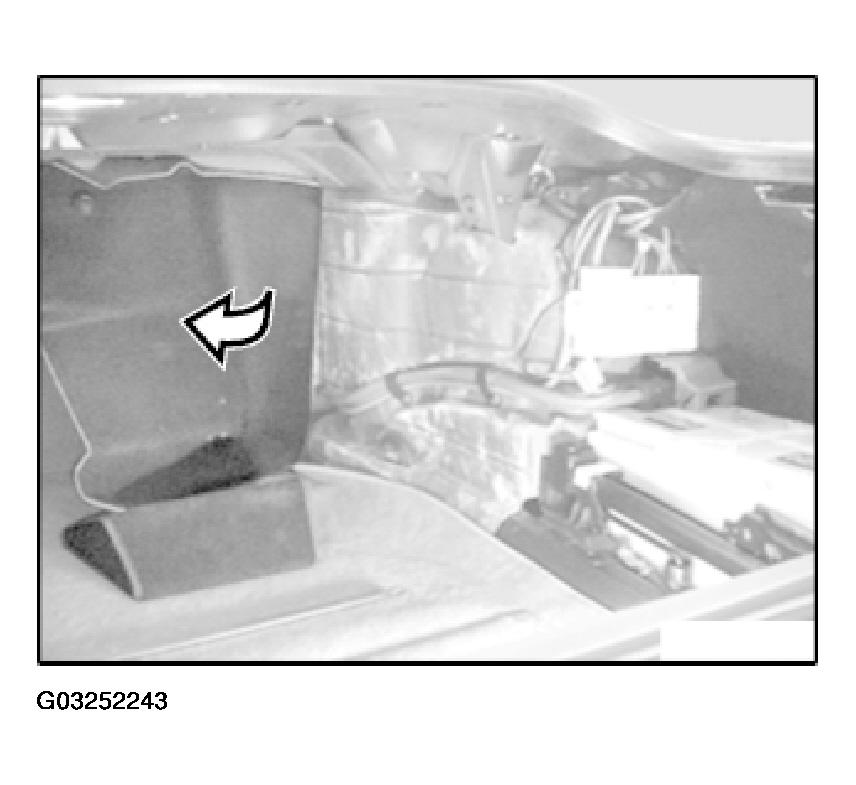

Fig 1: Removing Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release front side trim panel partly and fold forward.

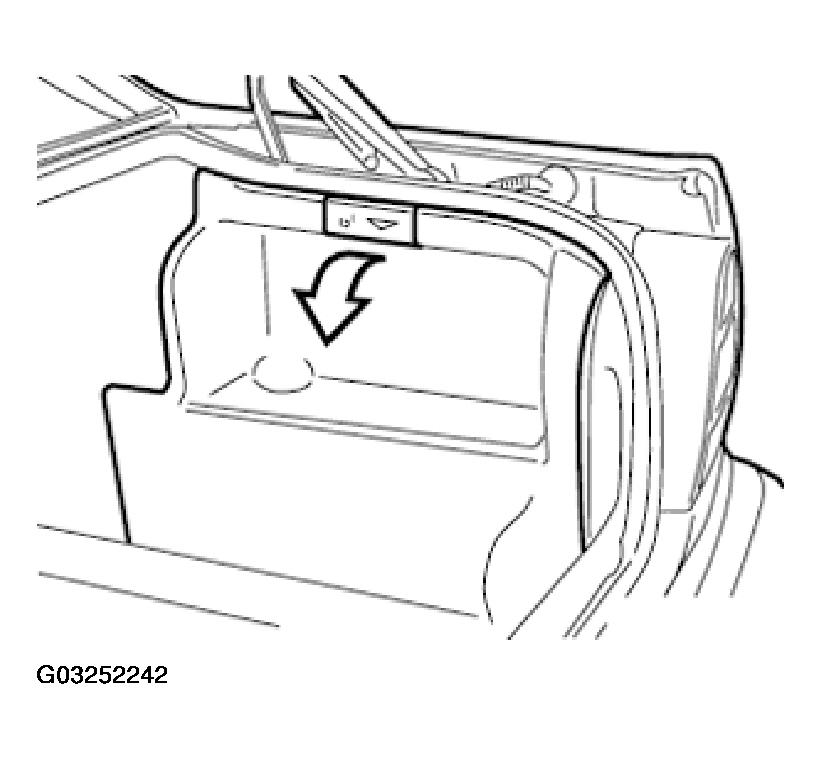

Fig 2: Releasing Front Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
