12 42 500 Removing and installing or replacing battery positive lead (between starter motor, alternator and battery positive support point) (M62): Notes

Interrogate fault memory of DME control unit.

Switch off ignition.

Observe safety instructions for handling vehicle battery.

Follow instructions for disconnecting and connecting battery, refer to General Information MG 12.

Disconnect negative battery lead.

Remove reinforcement plate. Refer to FRONT AXLE SUPPORT .

Release screws.

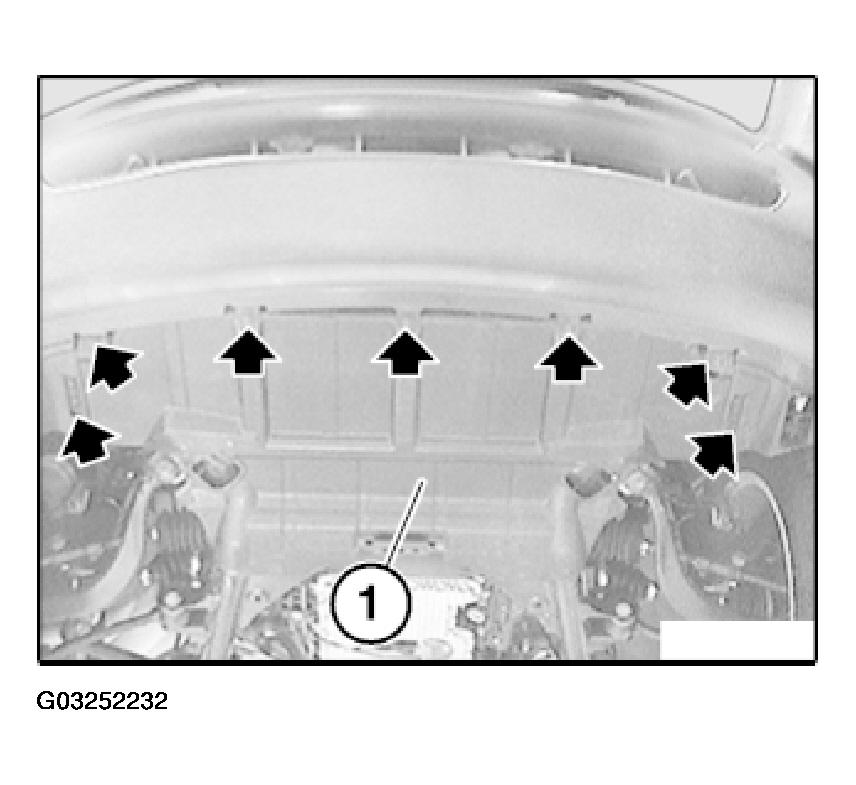

Remove underbody paneling (1).

Fig 1: Removing Underbody Paneling

Courtesy of BMW OF NORTH AMERICA, INC.

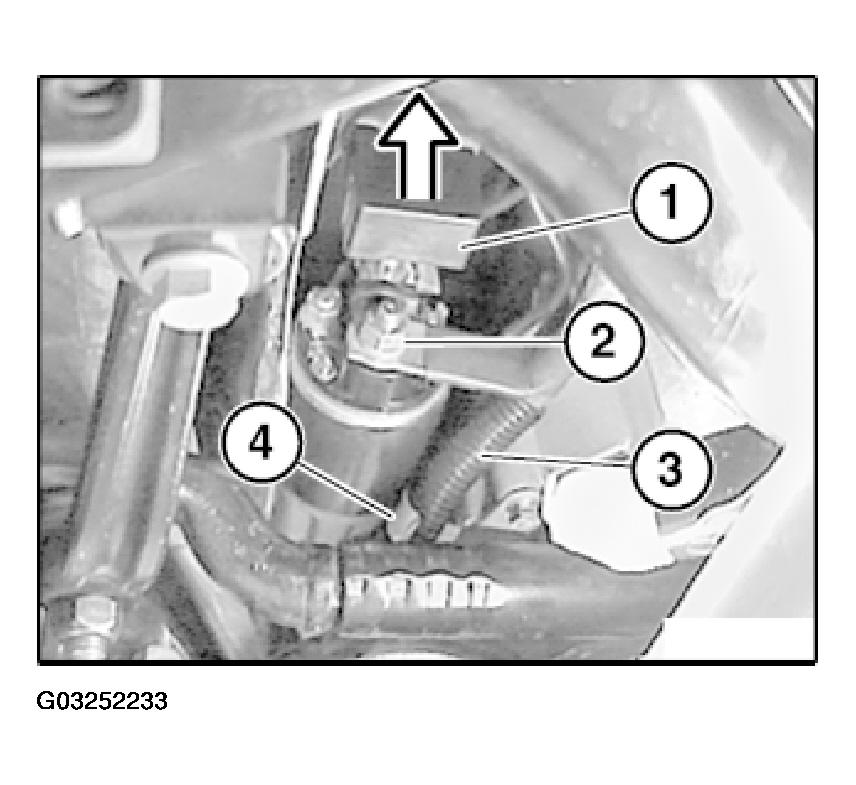

Remove protective cap (1) of battery positive lead from starter motor.

Release nut (2).

Tightening torque, see 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Disconnect battery positive lead from starter motor.

Unclip battery positive lead from holders.

Fig 2: Removing Protective Cap Of Battery Positive Lead From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

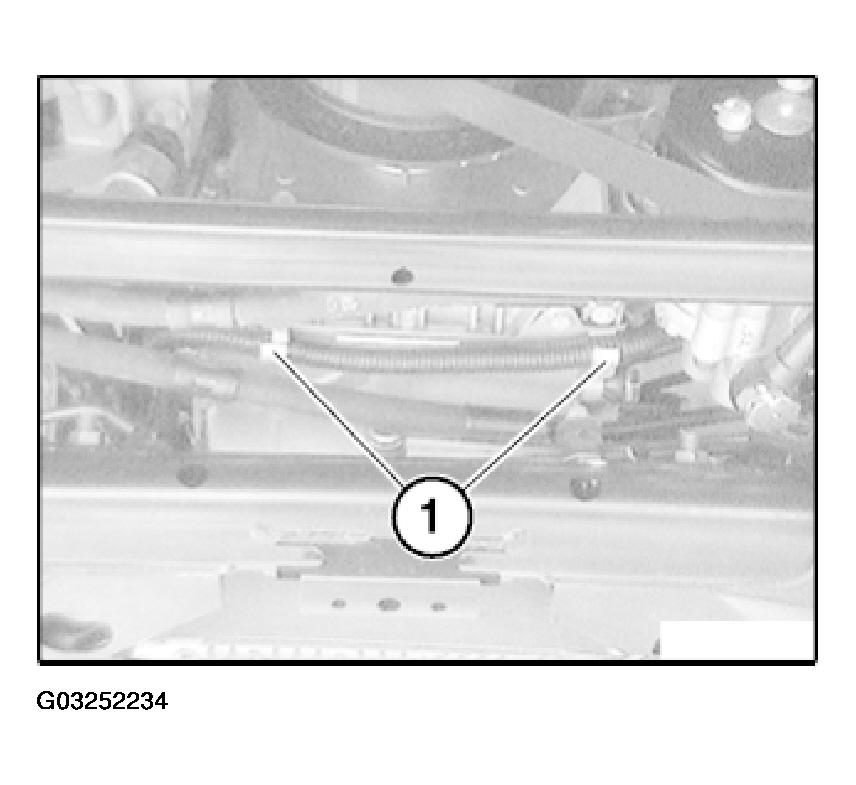

Unclip battery positive lead from holders (1) on upper oil sump section.

Fig 3: Unclipping Battery Positive Lead From Holders On Upper Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.

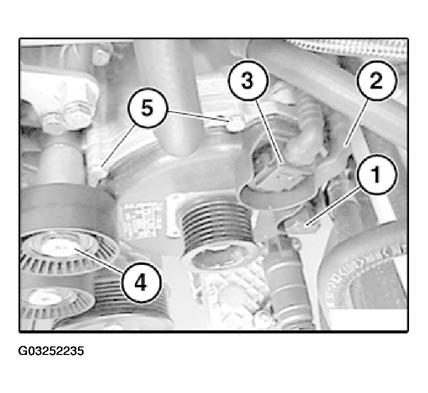

Release nut (1).

Disconnect battery positive lead (2) from alternator.

Tightening torque, see 12 31 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 4: Disconnecting Battery Positive Lead From Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

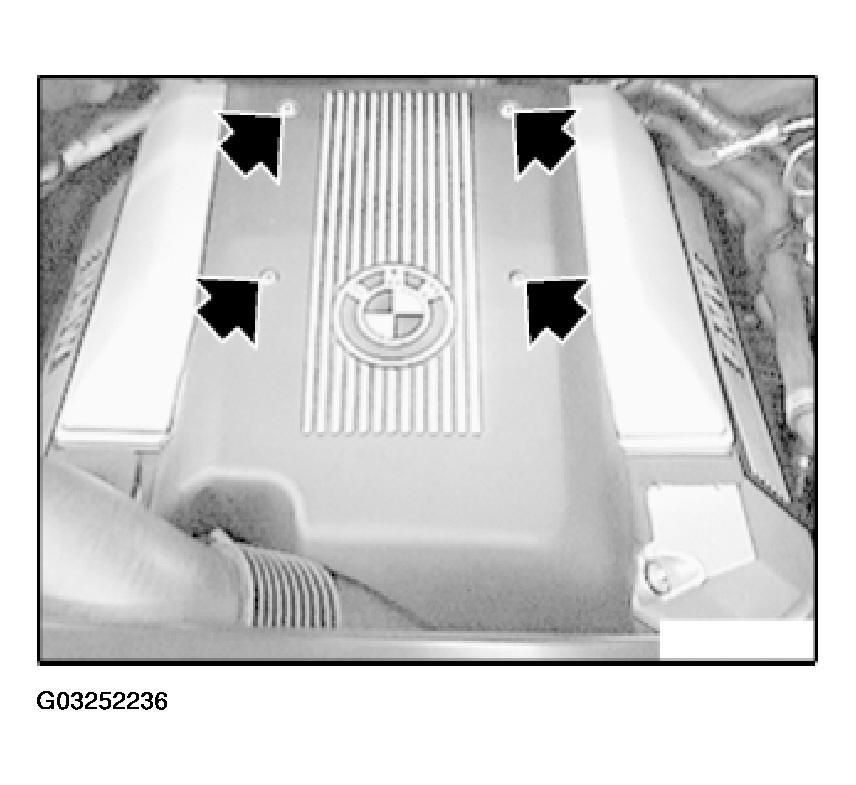

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

Fig 5: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

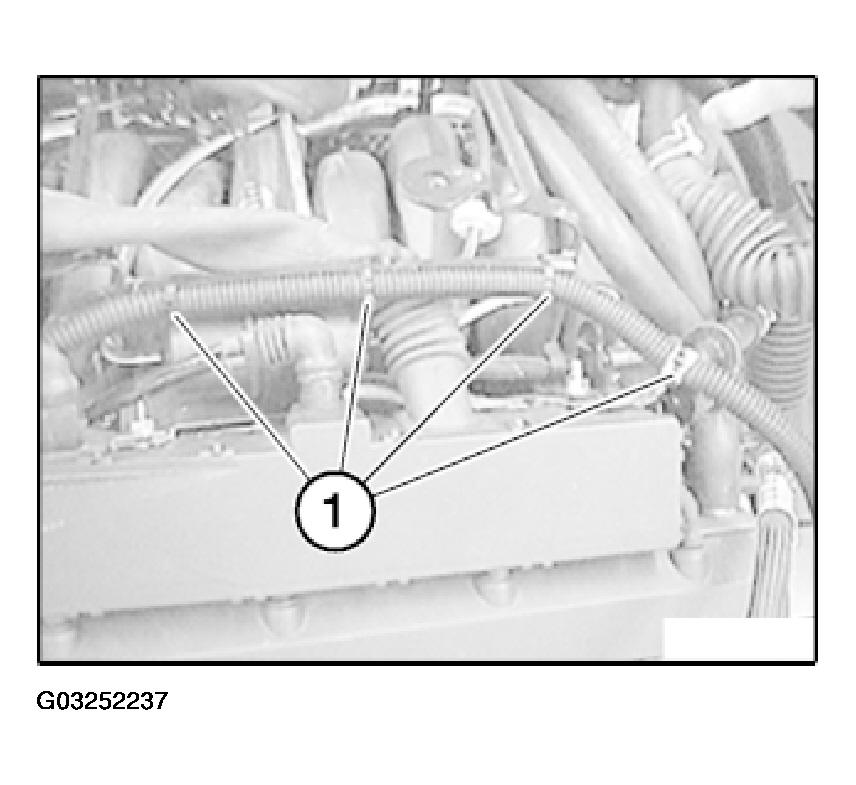

Release cable ties (1).

Fig 6: Releasing Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

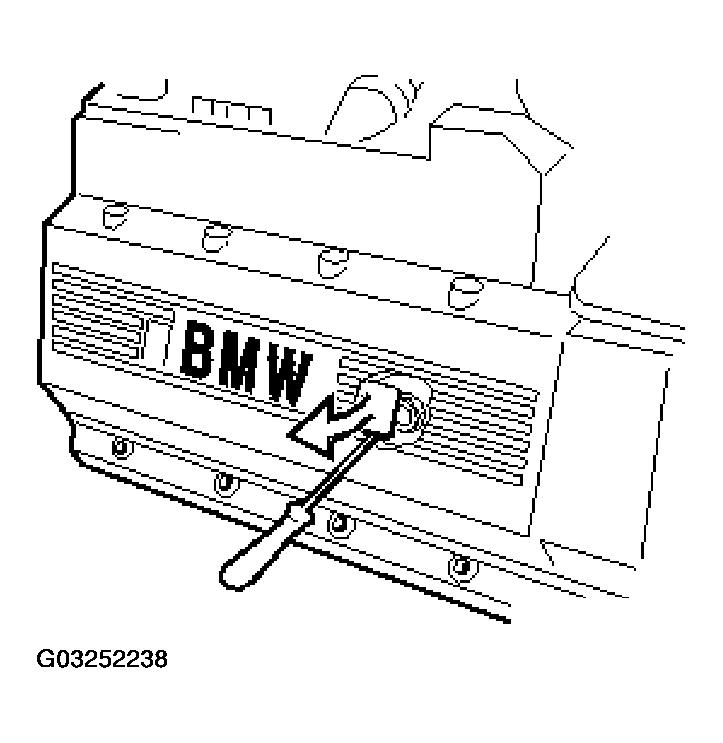

Remove sealing caps on cover of ignition coils on left.

Release nuts.

Remove cover on ignition coils on left.

Fig 7: Removing Cover On Ignition Coils On Left
