12 72 520 Removing and installing/replacing pedal travel sensor (M62, M54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Carefully press down locking lug (1) and pull out accelerator pedal module (2) at side.

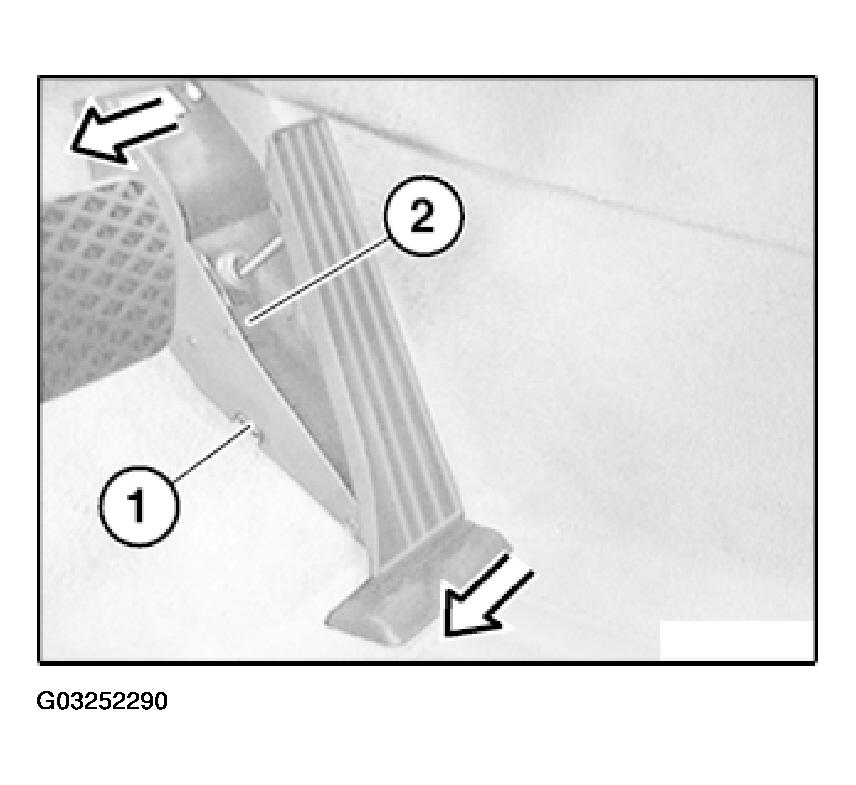

Fig 1: Pressing Down Locking Lug And Pulling Out Accelerator Pedal Module At Side

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from accelerator pedal module (2).

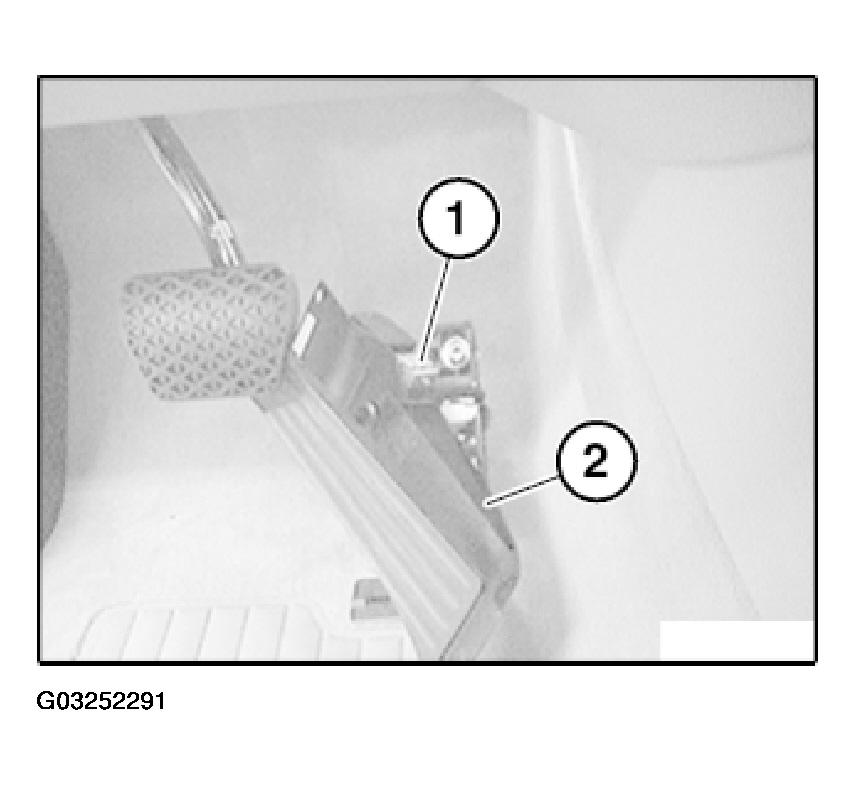

Fig 2: Removing Plug From Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.
