12 61 285 Replacing level switch for engine oil (M62, M54, S54, M56)
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Unfasten cover on full-flow oil filter to enable engine oil in filter to flow back into the oil sump.
- Drain engine oil.
See 00 00 ... CHANGING ENGINE OIL AND OIL FILTER .
Remove reinforcement plate. See FRONT AXLE SUPPORT .

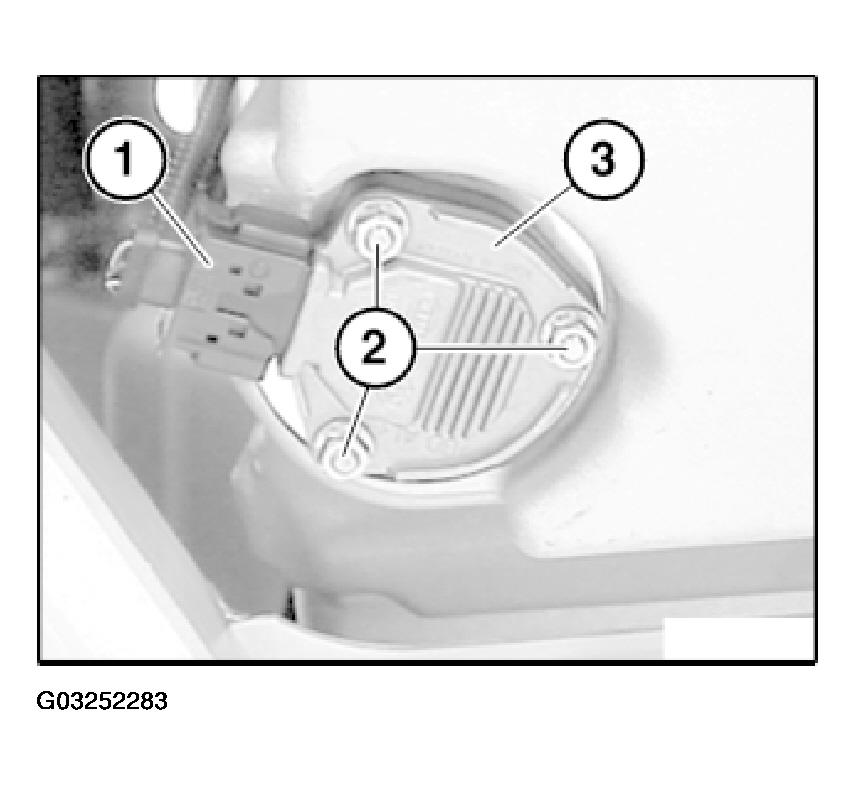

Disconnect plug connection (1).
Unscrew nuts (2).
Remove level switch (3).
Installation:
Clean sealing surface on oil sump and replace seal of level switch.
Installation:
Screw on oil-filter cover tightly.
Tightening torque, see 11 42 2AZ in ENGINE - TIGHTENING TORQUES .
Top up engine oil.
