12 61 280 Removing and installing/replacing oil pressure switch (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

NOTE: Drain the main flow oil filter in order to avoid an excessive discharge of oil when the oil pressure switch is removed.

Refer to 00 00 ... CHANGING ENGINE OIL AND OIL FILTER .

Detach plug (1) from oil pressure switch.

Fig 1: Removing Plug From Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Pull expansion tank (1) upwards and lay to one side.

NOTE: Lines on expansion tank remain connected.

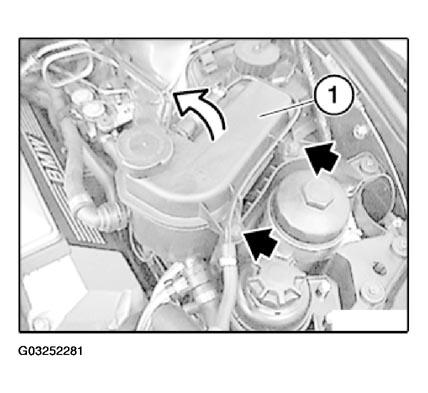

Fig 2: Pulling Expansion Tank Upwards And Lay To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A small amount of engine oil emerges when the oil pressure switch is removed. Have a cleaning cloth ready.

Unscrew oil pressure switch.

Tightening torque, see 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
