12 61 280 Removing and installing/replacing oil pressure switch (M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Screw on oil-filter cover tightly.

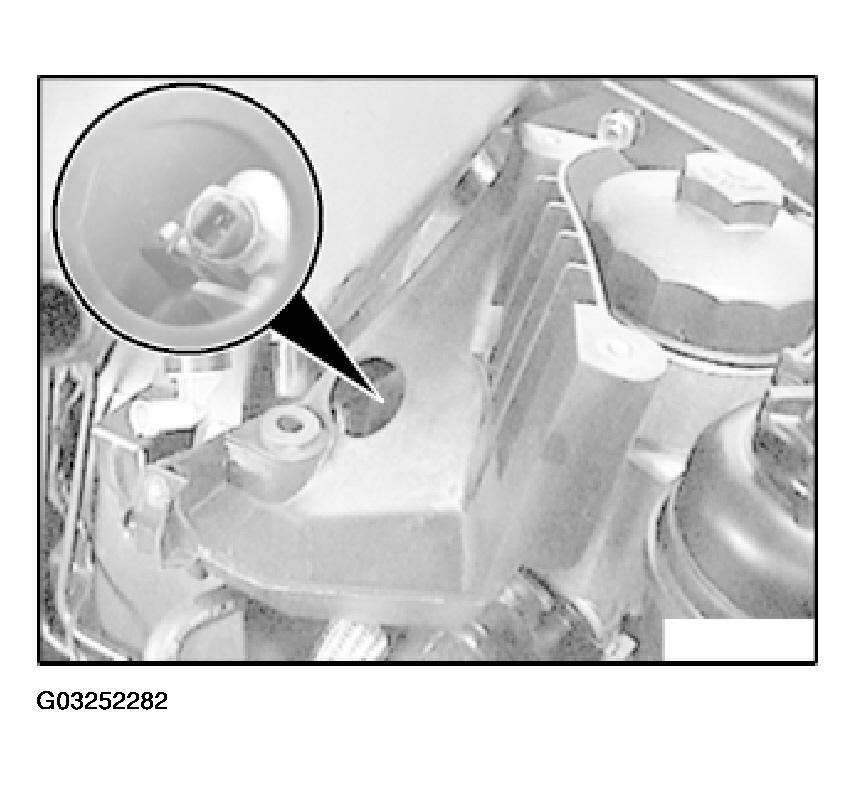

Fig 1: Removing Oil Pressure Switch
G03252282Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Assemble car and set in horizontal position.

Start engine and run at idle until oil indicator lamp goes out.

Switch off engine and wait approx. 5 minutes.

Then check engine oil level.

If necessary, top up engine oil.
