12 13 511 Replacing ignition coil (M60, M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

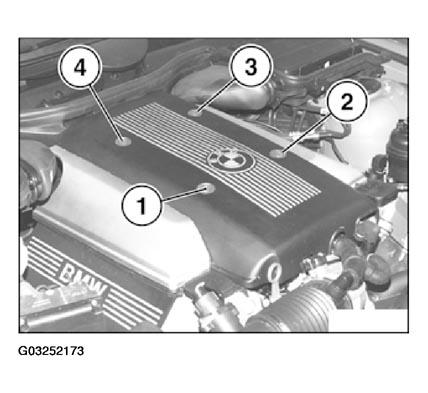

Position acoustic cover and press downwards until press stud fasteners (1... 4) are heard to engage.

Fig 1: Positioning Acoustic Cover And Pressing Downwards Until Press Stud Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

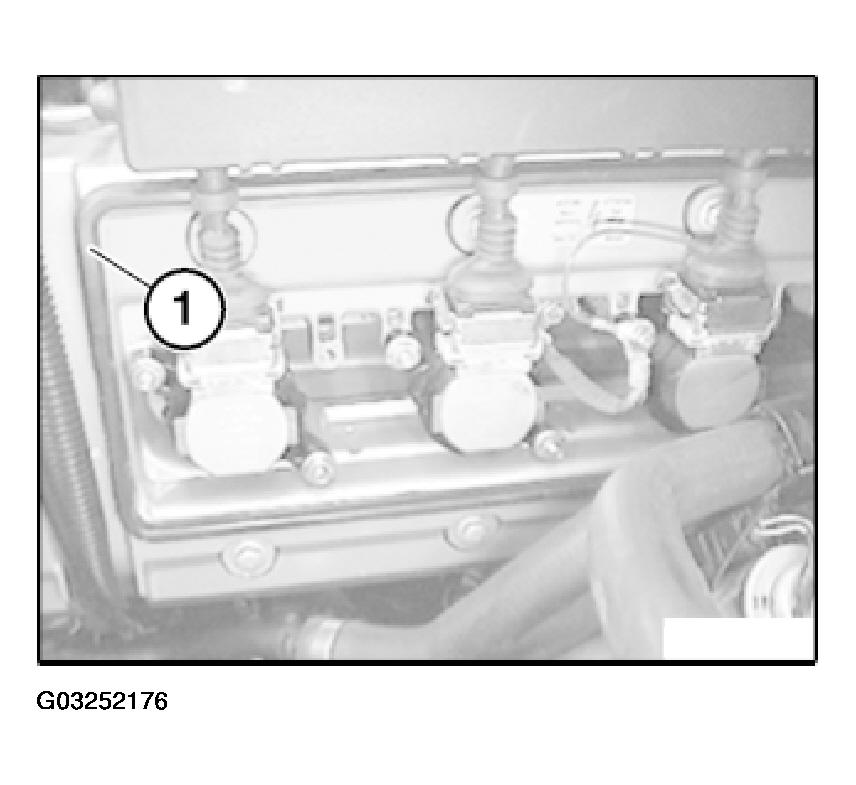

Check profile seal (1) for damage and correct seating, replace if necessary.

Fig 1: Checking Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

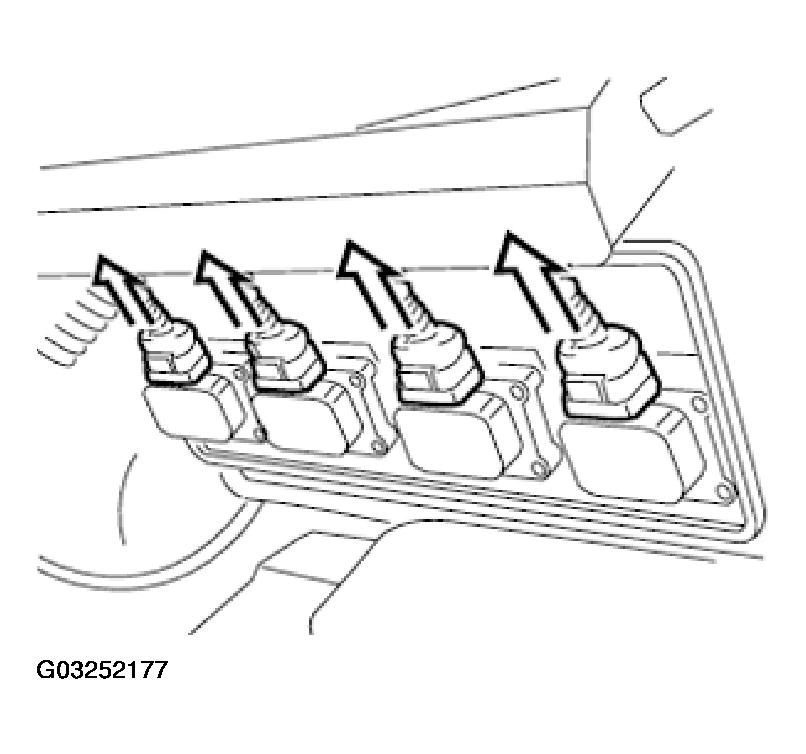

Disconnect plug connections on ignition coils.

Fig 2: Disconnecting Plug Connections On Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

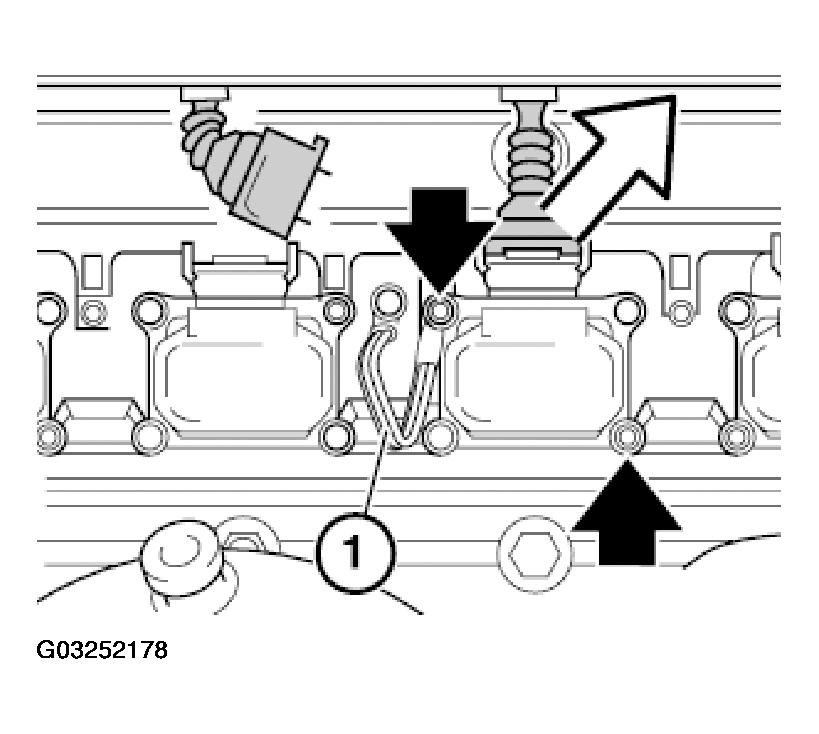

Release screw connections on ignition coils.

Remove ignition coils.

Fig 3: Removing Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.
