12 13 009 Checking ignition coils (M60, M62, S62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

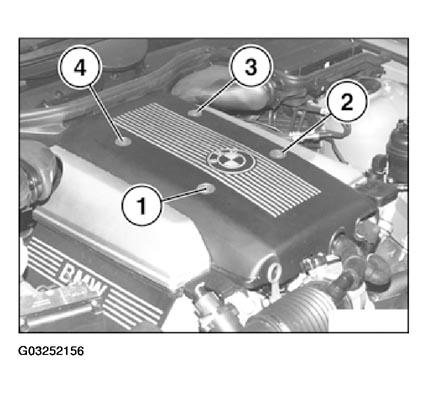

Position acoustic cover and press downwards until press stud fasteners (1... 4) are heard to engage.

Fig 1: Installing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

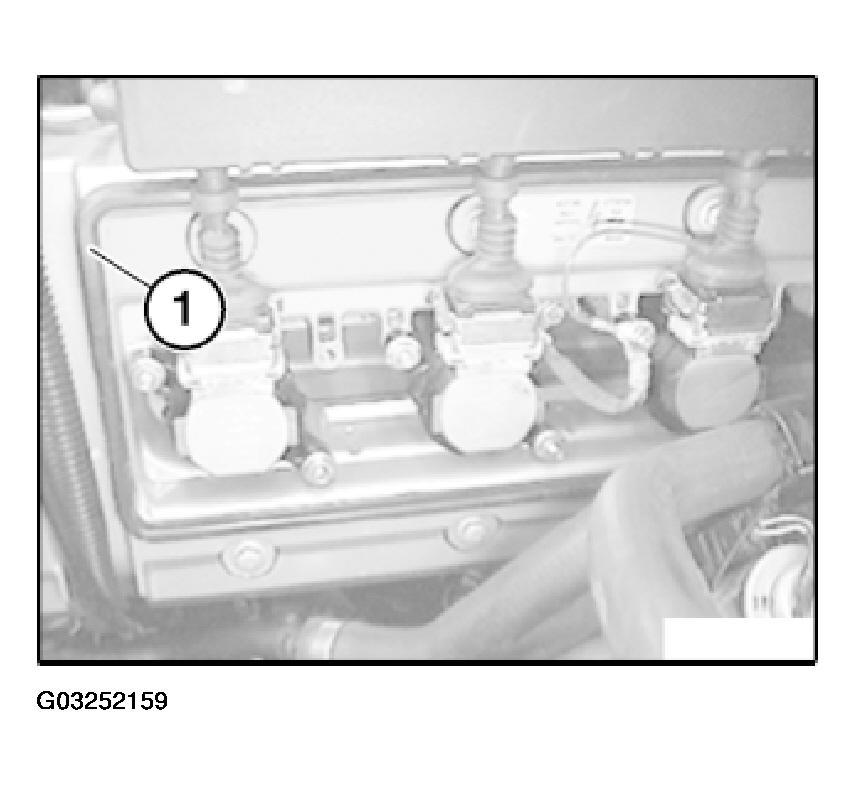

Check profile seal (1) for damage and correct seating, replace if necessary.

Fig 1: Checking Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.
