Section 237 (Engine Electrical System - Repair Instructions - X5 (4.4L))
>>
Ignition Coil
>>
12 13 009 Checking ignition coils (M60, M62, S62)
>>
Acoustic Cover Version 1:
Acoustic Cover Version 1:
WARNING:
This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
(Acoustic cover screwed down)
Remove sealing caps (1).
Release nuts (2).
Remove acoustic cover.

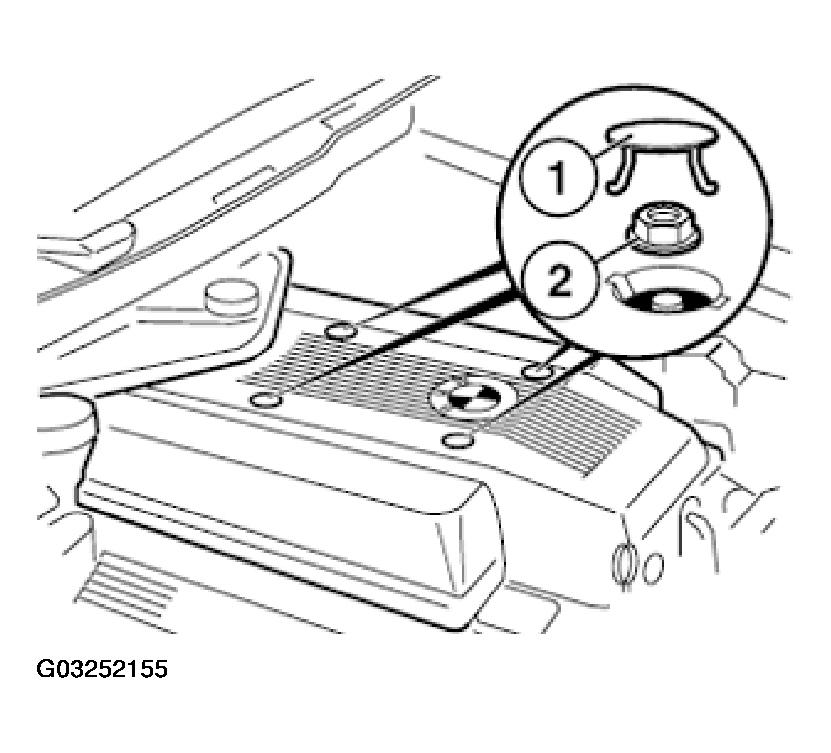

Fig 1: Identifying Nuts
Courtesy of BMW OF NORTH AMERICA, INC.
