12 51 001 Replacing wiring harness section for engine (M62): Installation:

To prevent leaks, you must install profile seals correctly.

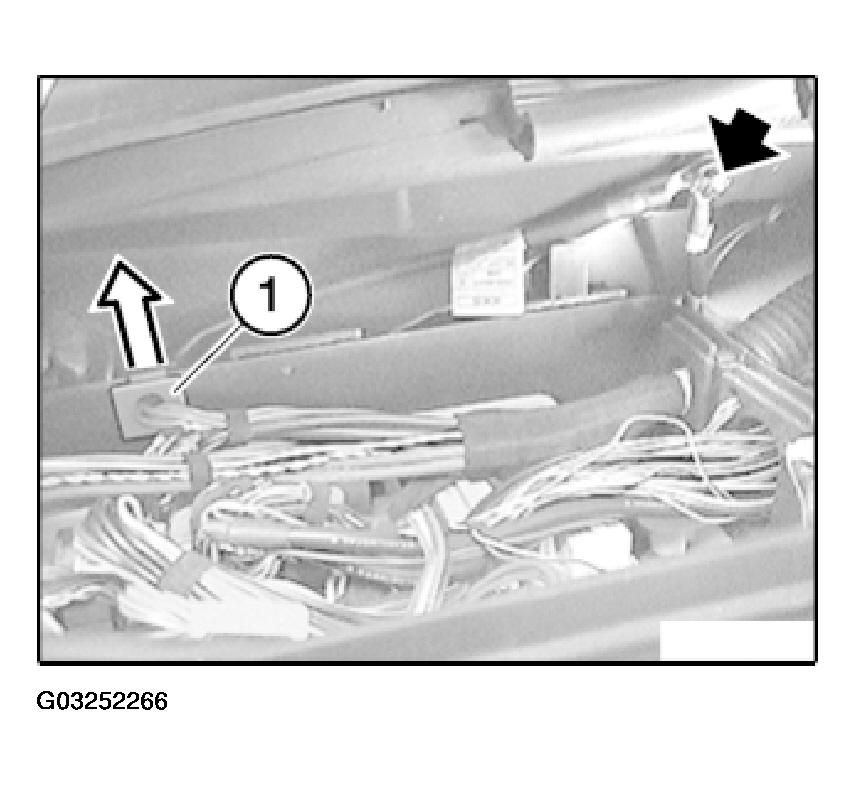

Fig 1: Removing Grounding Cables From Ground Support Point

Courtesy of BMW OF NORTH AMERICA, INC.

Detach profile seals (1) towards top.

To prevent leaks, you must install profile seals correctly.

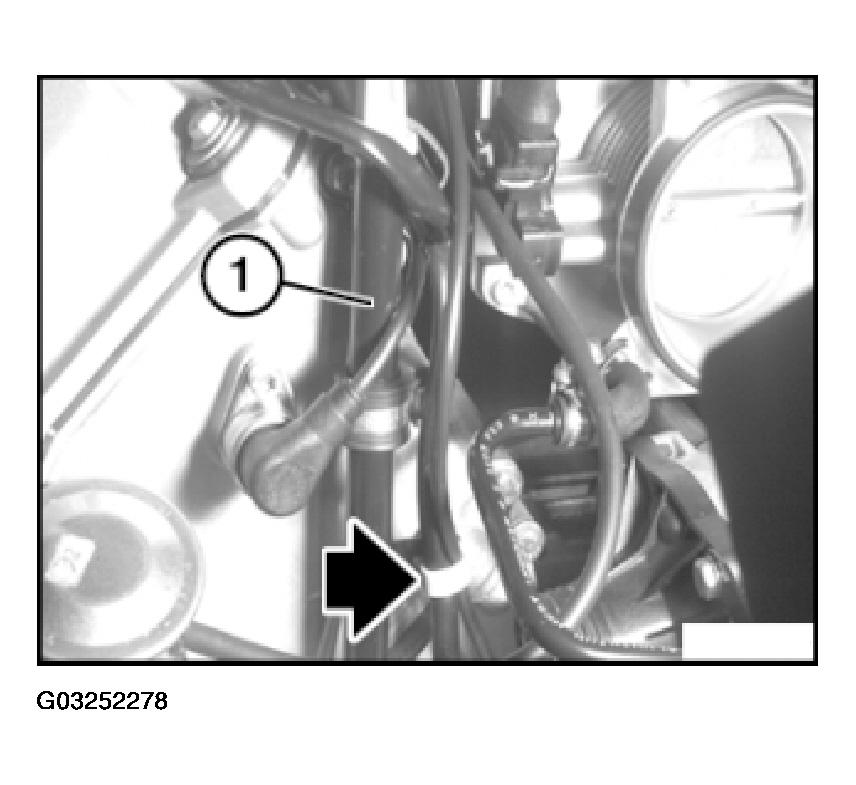

Fig 2: Detaching Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (2) from temperature sensor.

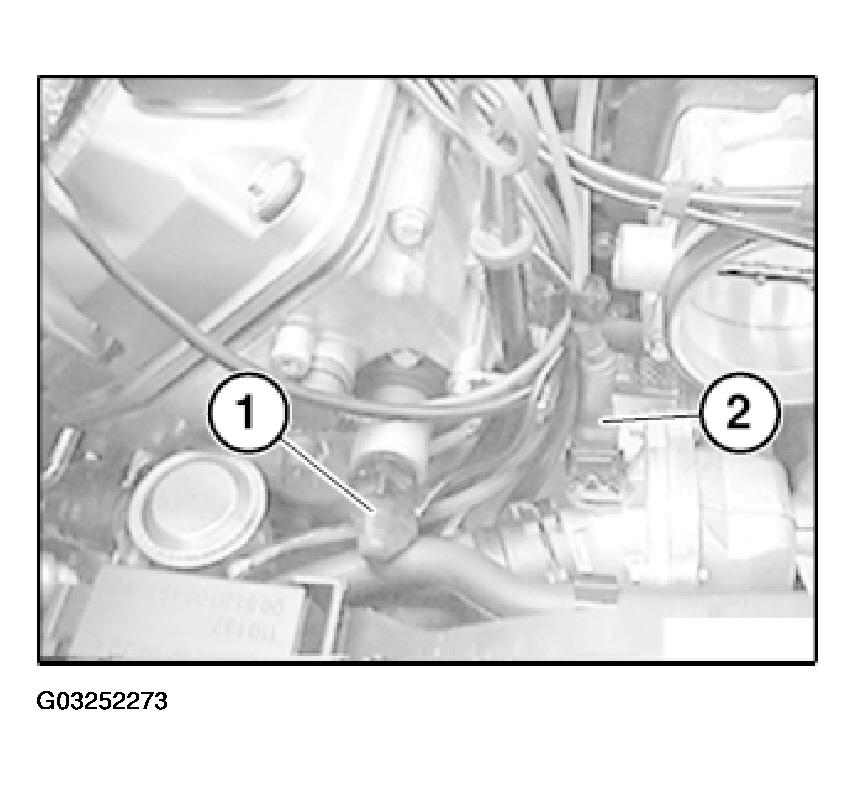

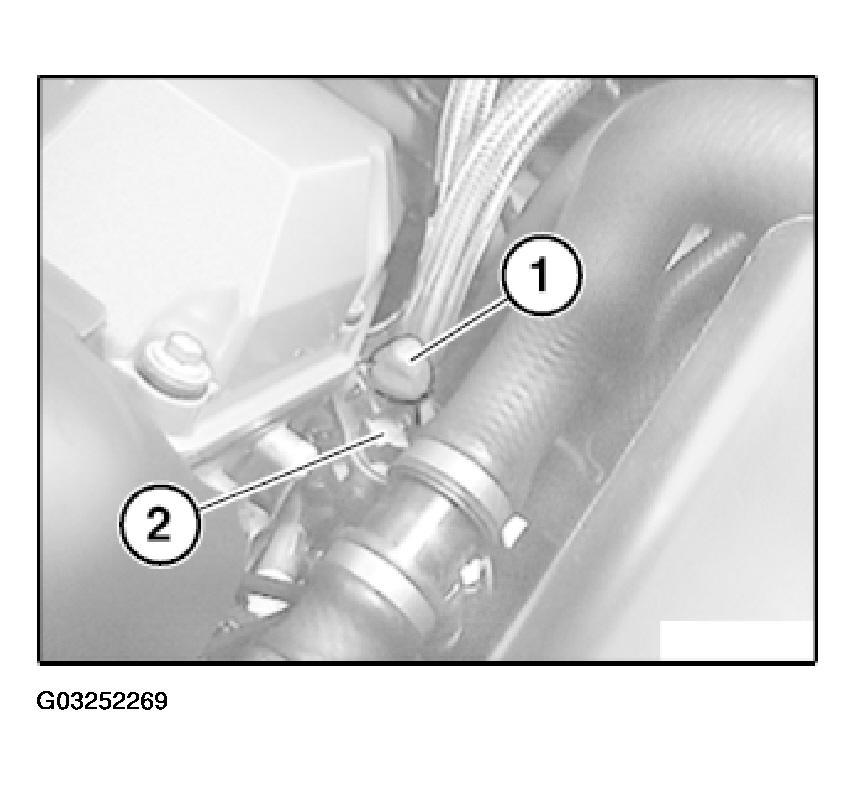

Fig 3: Detaching Plug From Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from tank venting valve (2).

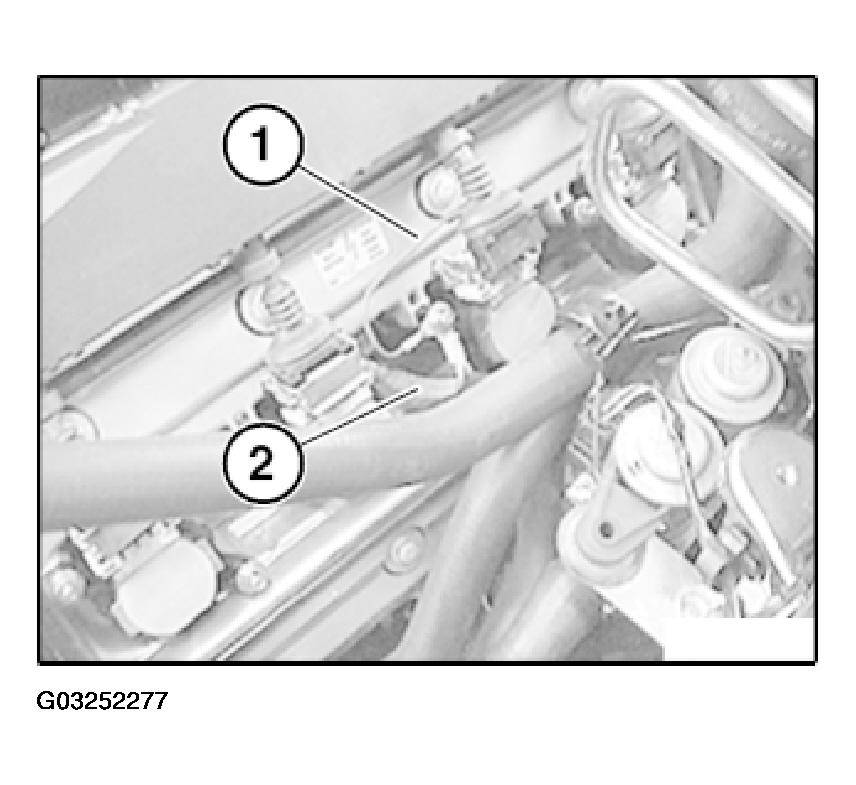

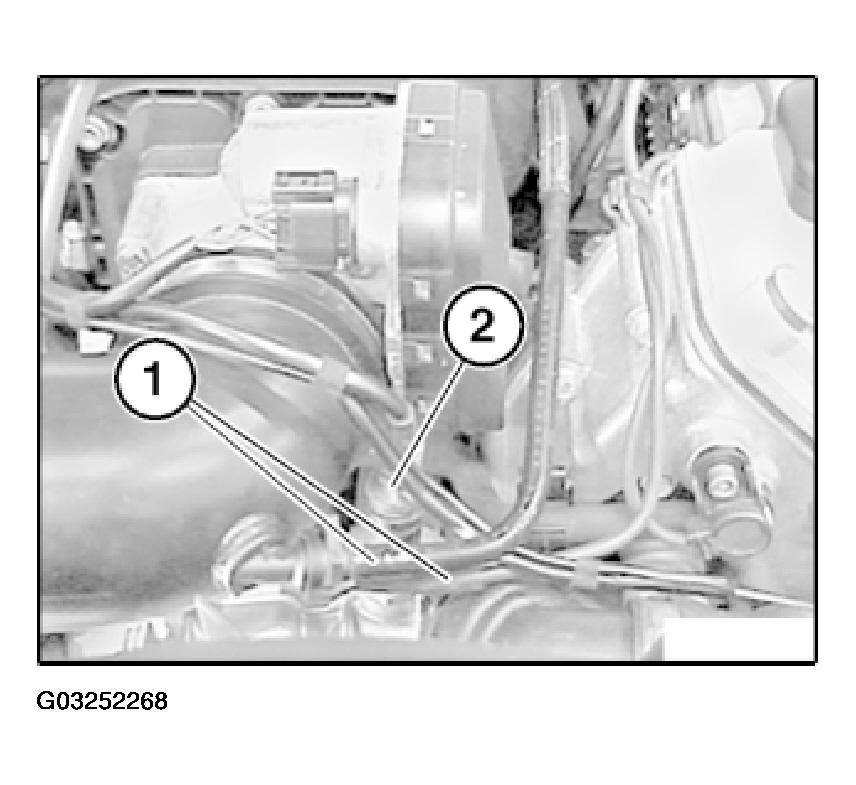

Fig 4: Detaching Plug From Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake hose, refer to 13 54 250 .

Detach plug (1) from throttle assembly.

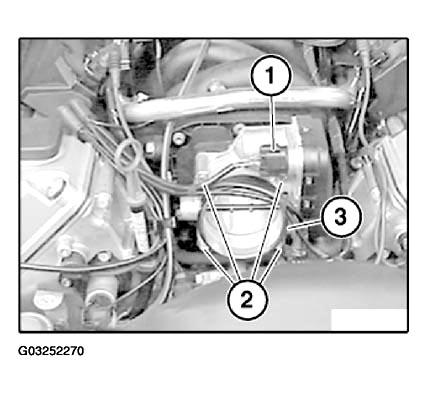

Fig 5: Detaching Plug From Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (3) from alternator.

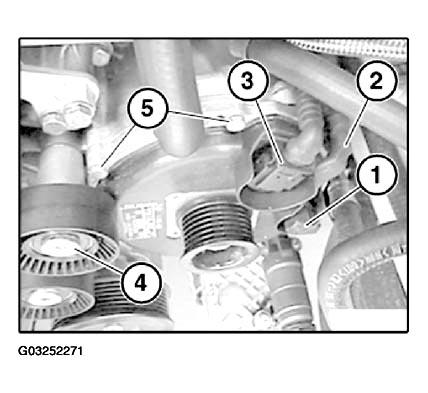

Fig 6: Detaching Plug From Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug connections (1) of knock sensors from cable strips.

Detach plug (2) from electric changeover valve.

Detach plugs (3) of camshaft sensors from cable strips.

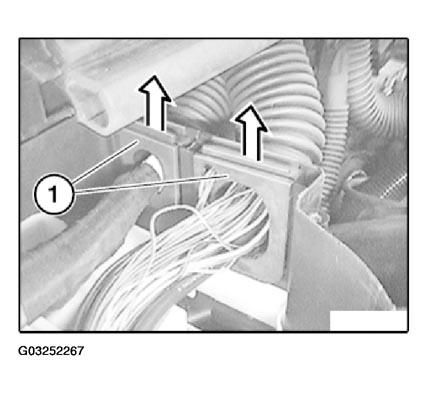

Fig 7: Detaching Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from solenoid valve of camshaft adjustment unit on left and right.

Detach plug (2) from switch for program map control.

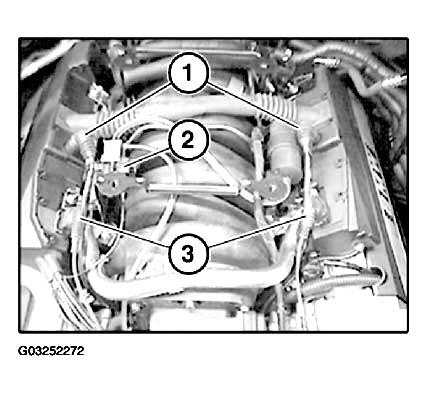

Fig 8: Detaching Plug From Solenoid Valve Of Camshaft Adjustment Unit On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing caps on covers of ignition coils.

Release nuts.

Remove covers on ignition coils.

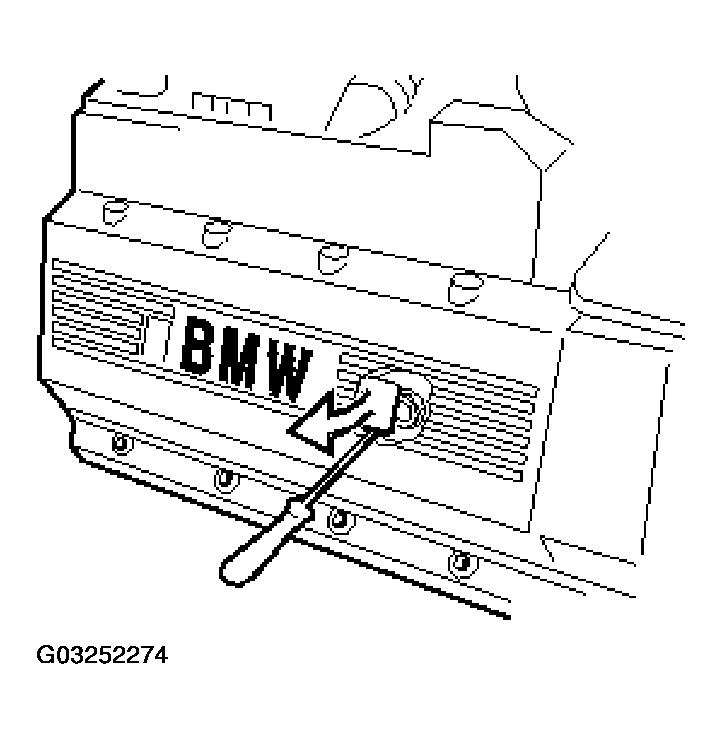

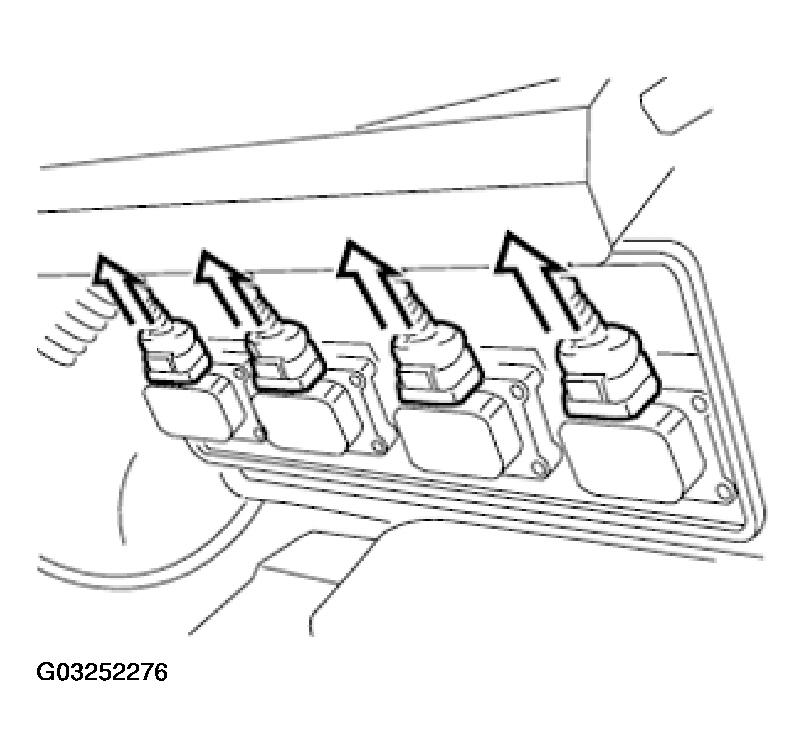

Fig 9: Removing Covers On Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Check profile seals (1) on left and right for damage and correct seating, replace if necessary.

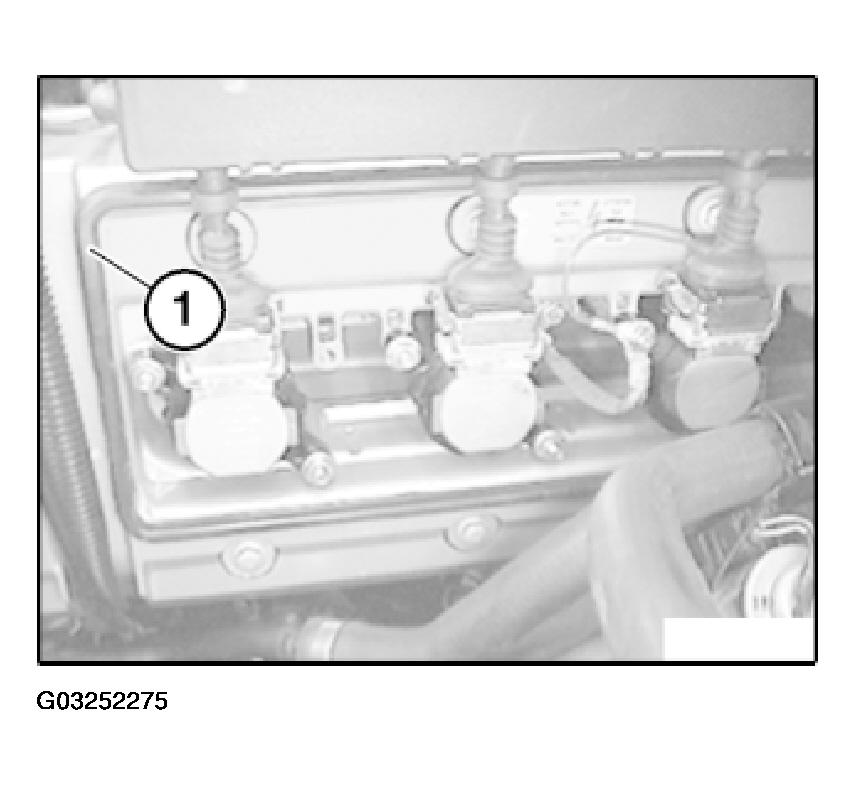

Fig 10: Checking Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left and right connections on ignition coils.

Disconnect thin grounding cables.

Fig 11: Disconnecting Thin Grounding Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Screw thin grounding cable to ignition coils of cylinders 2 and 7.

Fig 12: Screwing Thin Grounding Cable To Ignition Coils Of Cylinders 2 And 7

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lines on guide tube (1) for oil dipstick.

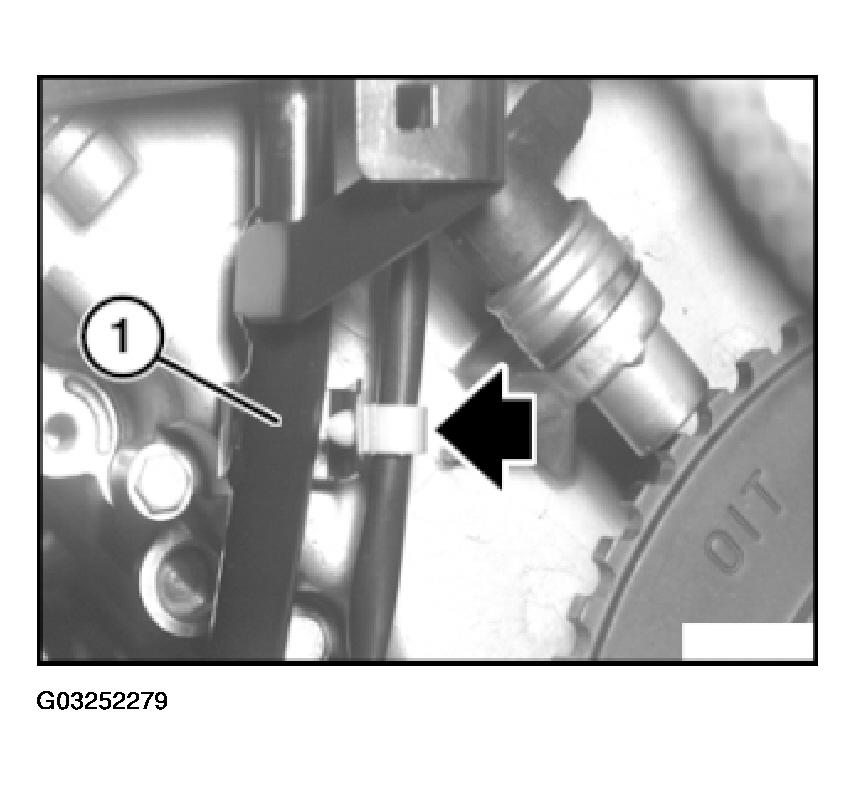

Fig 13: Removing Lines On Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lines on guide tube (1) for oil dipstick.

Release cable ties on battery positive lead in area of upper oil sump section.

Fig 14: Removing Lines On Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.
