12 14 526 Replacing pulse generator on right inlet camshaft (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove intake hose refer to 13 54 250 REPLACING INLET HOSE .

Disconnect plug connection (3) on right cable strip.

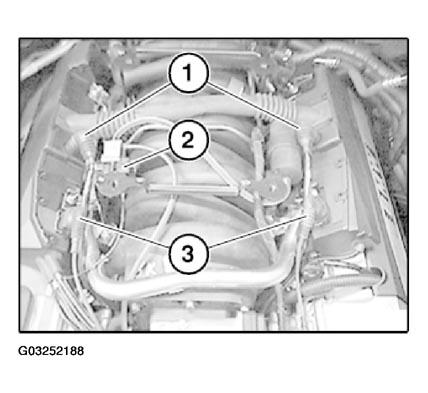

Fig 1: Disconnecting Plug Connection On Right Cable Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator.
