12 31 020 Removing and installing/replacing alternator (M62): Notes
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Switch off ignition.
Follow instructions for disconnecting and connecting battery, refer to General Information MG 12.
Disconnect and cover battery negative lead.
WARNING:
Danger of scalding!
Only perform these tasks on an engine that has cooled down.
Remove alternator drive belt, refer to 11 28 010 .
Remove fan cowl, refer to 17 11 031 .
Drain coolant, refer to 17 00 005 .
Release bolts (1) on alternator.

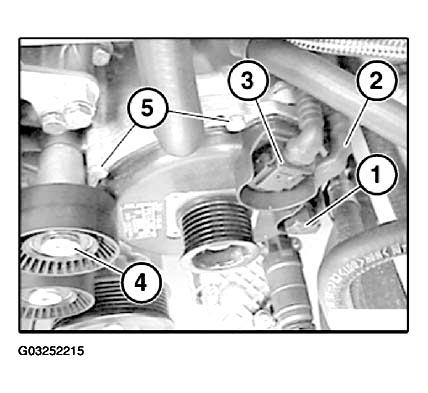

Release nut (1).
Disconnect battery positive lead (2) from alternator.
Tightening torque, see 12 31 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Disconnect plug (3).
Release screw (4) and remove roller.
Release screws (5) on alternator.
